> Batch Delete Files and Folders from Vault Example (VB.NET)

Batch Delete Files and Folders from Vault Example (VB.NET)

This example shows how to delete several files and a folder from the vault in one batch.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SolidWorks Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
'  1. Start Microsoft Visual Studio 2010.
'     a. Click File > New > Project > Visual Basic > Windows Forms Application.
'     b. Type BatchDeleteFiles in Name.
'     c. Click Browse and navigate to the folder where to create the project.
'     d. Click OK.
'     e. Click Show All Files in the Solution Explorer toolbar and expand
'        Form1.vb in the Solution Explorer.
'     f. Replace the code in Form1.vb with this code.
'     g. To create the form, replace the code in Form1.Designer.vb with
'        this code.
'  2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'     name in the Solution Explorer, click Add Reference, click
'     Assemblies > Framework in the left-side panel, browse to the top folder of
'     your SolidWorks Enterprise PDM installation, locate and click
'     EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
'  3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'     Embed Interop Types to False to handle methods that pass arrays of
'     structures.
' 4. Ensure that the root folder of the vault contains an empty Folder1 and at
'     least one file.
'  5. Click Debug > Start Debugging or press F5.
'
' Postconditions:

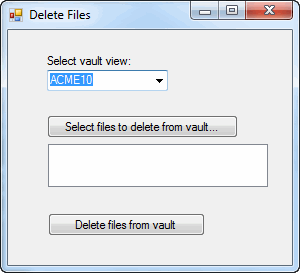

'  1. The Delete Files dialog box displays.
'     a. Select a vault view.
'     b. Click Select files to delete from vault.
'     c. In the Select File dialog:
'        1. Click a file inside the vault.
'        2. Click Open.
'     d. Click Delete files from vault.
' 2. Click Delete in the Confirm Multiple File Delete dialog box.
'     a. If no errors occur, the selected file and Folder1 are moved
'        from the vault to the Enterprise PDM recycling bin. (To see the
'        Enterprise PDM recycling bin, right-click your vault, click
'        Properties, and click Deleted Items.)
'     b. If an error dialog box pops up, click OK to close it.
' 3. Close the Delete Files dialog box.
'----------------------------------------------------------------------------
'Form1.vb

Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm

Public Class Form1

    Private vault1 As IEdmVault5 = Nothing
    Dim batchDeleter As IEdmBatchDelete3
    Dim aFile As IEdmFile5
    Dim aFolder As IEdmFolder5
    Dim aPos As IEdmPos5
    Dim retVal As Boolean
    Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Try
            Dim vault1 As IEdmVault5 = New EdmVault5()
            Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
            Dim Views As EdmViewInfo() = Nothing

            vault.GetVaultViews(Views, False)
            VaultsComboBox.Items.Clear()
            For Each View As EdmViewInfo In Views
                VaultsComboBox.Items.Add(View.mbsVaultName)
            Next
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub SelectFiles_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SelectFiles.Click
        Try
            'File1List.Items.Clear()

            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)

            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            'Set the initial directory in the Select File dialog
            OpenFileDialog1.InitialDirectory = vault1.RootFolderPath
            'Show the Select File dialog
            Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
            DialogResult = OpenFileDialog1.ShowDialog()

            batchDeleter = vault2.CreateUtility(EdmUtility.EdmUtil_BatchDelete)

            If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
                ' do nothing
            Else
                For Each FileName As String In OpenFileDialog1.FileNames
                    File1List.Items.Add(FileName)
                    aFile = vault1.GetFileFromPath(FileName)
                    aPos = aFile.GetFirstFolderPosition
                    aFolder = aFile.GetNextFolder(aPos)
                    ' Add selected file to the batch
                    batchDeleter.AddFileByPath(FileName)
                Next
            End If

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub BatchDelete_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BatchDelete.Click
        Try

            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)
            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            If Not IsNothing(batchDeleter) Then
                ' Add Folder1 to the batch of items to be deleted
                batchDeleter.AddFolder(vault1.RootFolderPath + "\Folder1")

                ' Move files and folder to the Recycle Bin
                retVal = batchDeleter.ComputePermissions(False, Nothing)

                If (Not retVal) Then
                    batchDeleter.ShowWarningDlg2(Me.Handle.ToInt32(), True)
                End If

                retVal = batchDeleter.CommitDelete(Me.Handle.ToInt32(), Nothing)

                Dim ppoDelErrors() As EdmBatchDelErrInfo = Nothing
                If (Not retVal) Then
                    batchDeleter.ShowCommitErrorsDlg(Me.Handle.ToInt32())
                    batchDeleter.GetCommitErrors(ppoDelErrors)
                End If
            End If

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try

    End Sub

End Class

'Form1.Designer.vb

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
        Try
            If disposing AndAlso components IsNot Nothing Then
                components.Dispose()
            End If
        Finally
            MyBase.Dispose(disposing)
        End Try
    End Sub

    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.VaultsLabel = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.SelectFiles = New System.Windows.Forms.Button()
        Me.File1List = New System.Windows.Forms.ListBox()
        Me.BatchDelete = New System.Windows.Forms.Button()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.SuspendLayout()
        '
        'VaultsLabel
        '
        Me.VaultsLabel.AutoSize = True
        Me.VaultsLabel.Location = New System.Drawing.Point(36, 24)
        Me.VaultsLabel.Name = "VaultsLabel"
        Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
        Me.VaultsLabel.TabIndex = 0
        Me.VaultsLabel.Text = "Select vault view:"
        '
        'VaultsComboBox
        '
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(39, 40)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
        Me.VaultsComboBox.TabIndex = 1
        '
        'SelectFiles
        '
        Me.SelectFiles.Location = New System.Drawing.Point(39, 85)
        Me.SelectFiles.Name = "SelectFiles"
        Me.SelectFiles.Size = New System.Drawing.Size(191, 23)
        Me.SelectFiles.TabIndex = 2
        Me.SelectFiles.Text = "Select files to delete from vault..."
        Me.SelectFiles.UseVisualStyleBackColor = True
        '
        'File1List
        '
        Me.File1List.FormattingEnabled = True
        Me.File1List.HorizontalScrollbar = True
        Me.File1List.Location = New System.Drawing.Point(40, 114)
        Me.File1List.Name = "File1List"
        Me.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended
        Me.File1List.Size = New System.Drawing.Size(220, 43)
        Me.File1List.TabIndex = 4
        '
        'BatchDelete
        '
        Me.BatchDelete.Location = New System.Drawing.Point(40, 183)
        Me.BatchDelete.Name = "BatchDelete"
        Me.BatchDelete.Size = New System.Drawing.Size(157, 23)
        Me.BatchDelete.TabIndex = 6
        Me.BatchDelete.Text = "Delete files from vault"
        Me.BatchDelete.UseVisualStyleBackColor = True
        '
        'OpenFileDialog1
        '
        Me.OpenFileDialog1.FileName = "OpenFileDialog1"
        Me.OpenFileDialog1.Multiselect = True
        Me.OpenFileDialog1.Title = "Select File"
        '
        'Form1
        '
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(284, 235)
        Me.Controls.Add(Me.BatchDelete)
        Me.Controls.Add(Me.File1List)
        Me.Controls.Add(Me.SelectFiles)
        Me.Controls.Add(Me.VaultsComboBox)
        Me.Controls.Add(Me.VaultsLabel)
        Me.Name = "Form1"
        Me.Text = "Delete Files"
        Me.ResumeLayout(False)
        Me.PerformLayout()

    End Sub
    Friend WithEvents VaultsLabel As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents SelectFiles As System.Windows.Forms.Button
    Friend WithEvents File1List As System.Windows.Forms.ListBox
    Friend WithEvents BatchDelete As System.Windows.Forms.Button
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog

End Class
