| Mirrors and Patterns. You can use Instant3D to manipulate mirrored or patterned geometry.
The manipulators available on the selected transformed geometry match those available on the corresponding seed geometry. For example,side face manipulators, end face manipulators, fillet manipulators, etc.
When you drag transformed geometry, the entire model updates, including seed geometry.
|

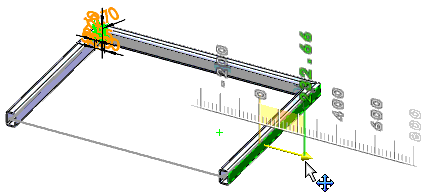

Original part with mirrored extrude
Example shows using the manipulator on the mirrored feature to modify the mirror and seed features.
Video: Instant3D - Mirrors and Patterns |
