Combining Location Dimensions

To combine location dimensions:

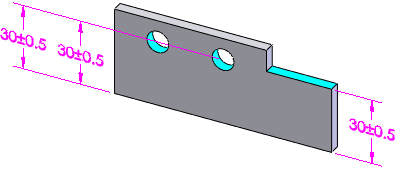

  1. Open a model with dimensions to combine. For example, you can combine the three dimensions into one.

    When combining location dimensions, they must all have the same origin feature.

  2. Ctrl + select the three dimensions from left to right.
  3. Right-click and select Combine Dimension.

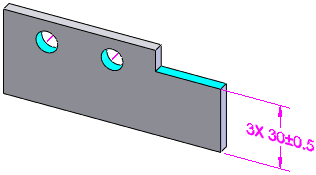

    The dimensions combine into one at the last selected dimension, with an instance count automatically added.

    To return dimensions to individual dimensions, right-click the combined dimension and select Break Combined Dimension. To combine or break geometric tolerances, the options are Combine Gtol and Break Combined Gtol.
