You can choose how to display sheet metal gussets in the flattened state.
In flattened sheet metal parts, you display gussets as profiles, center marks, or both.
Click and select from the following options:
|
|

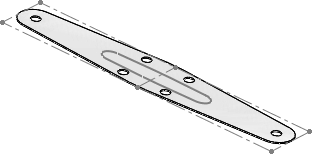

Show sheet metal gusset profiles when flattened |

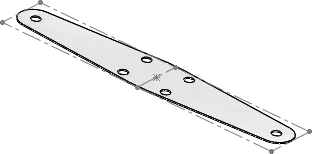

Show sheet metal gusset centers when flattened |
