Asymmetric Fillets

You can use the Fillet tool to create asymmetrical fillets for parts, assemblies, and surfaces.

You can apply asymmetric shapes to constant size, variable size, and face fillets.

  1. Open install_dir\samples\whatsnew\parts\remote.sldprt.

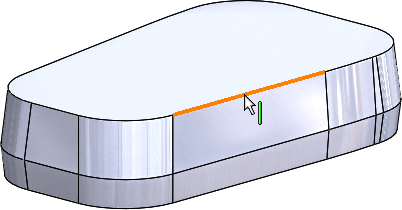

  2. Select the edge shown.

  3. Click Fillet (Features toolbar) or Insert > Features > Fillet/Round.
  4. In the PropertyManager, under Fillet Type, click Constant Size Fillet .

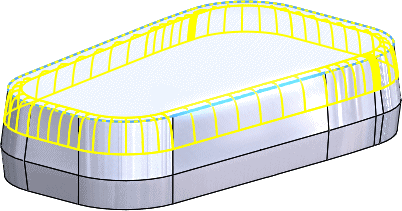

  5. Under Items To Fillet, select Full preview.
  6. Under Fillet Parameters:
    1. Select Asymmetric in the drop-down list.
    2. Set Distance 1 to 5.
    3. Set Distance 2 to 10.
    4. Click Reverse Direction .
    5. In Profile, select Conic Rho.
    6. Set Conic Rho to 0.65.

    7. Click .

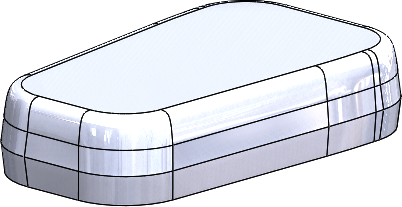

    The asymmetric fillet is added.
