Radial Explode

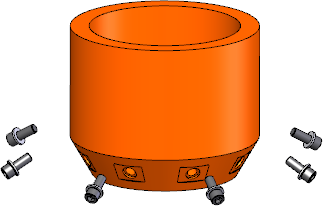

You can explode components aligned radially/cylindrically about an axis in one step.


You can also explode radially by diverging along an axis.

To radially explode components about an axis:

  1. In an assembly document, click Exploded View (Assembly toolbar) or Insert > Exploded View.
  2. In the Explode PropertyManager, under Explode Step Type, click Radial step .
  3. In Settings, select the components to explode.
  4. In the graphics area, drag the handle and release.
  5. Click .
