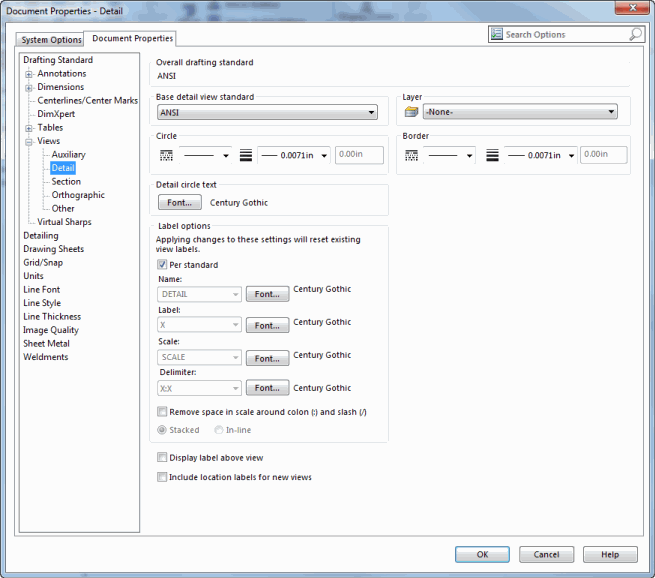

Document Properties > Views > Detail

Setting

Get/Set Methods

Return Value or <Value>

Comments

Base detail view standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingDetailView, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the base detail view standard to use

Circle - Line Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleStyle, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleStyle, swUserPreferenceOption_e.swDetailingDetailView, swLineStyles_e.<Value>)

See swLineStyles_e for valid options

Specifies the line style of detail view circles

Circle - Line Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleThickness, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleThickness, swUserPreferenceOption_e.swDetailingDetailView, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies the line thickness of detail view circles

Circle - Custom thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailCircleThicknessCustom, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailCircleThicknessCustom, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Double value

Specifies custom thickness of lines for detail view circles; sets Custom Thickness to the specified thickness and Leader Thickness to Custom Size

Border - Line Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderStyle, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderStyle, swUserPreferenceOption_e.swDetailingDetailView, swLineStyles_e.<Value>)

See swLineStyles_e for valid options

Specifies style of detail view border

Border - Line Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderThickness, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderThickness, swUserPreferenceOption_e.swDetailingDetailView, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies thickness of detail view border

Border - Custom thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailBorderThicknessCustom, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailBorderThicknessCustom, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Double value

Specifies custom thickness of detail view border lines; sets Custom Thickness to the specified thickness and Leader Thickness to Custom Size

Detail circle text - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailTextFormat, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailTextFormat, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Per standard

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_PerStandard, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_PerStandard, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Boolean value

Label options - Name

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Name, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Name, swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsName_e.<Value>)

See swDetailingViewLabelsName_e for valid options

Specifies the label to use in front of the detail view; if set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom, then set Label options - Name (CUSTOM) to a custom label

Label options - Name (CUSTOM)

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomName, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomName, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

String value

Specifies the custom label to use in front of the detail view; valid only if Label options - Name is set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom

Label options - Name - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_NameTextFormat, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_NameTextFormat, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Label

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Label, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Label, swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsLabel_e.<Value>)

See swDetailingViewLabelsLabel_e for valid options

Specifies the format of the detail view label

Label options - Label - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_LabelTextFormat, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_LabelTextFormat, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Scale

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Scale, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Scale, swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsScale_e.<Value>)

See swDetailingViewLabelsScale_e for valid options

Specifies the label to use in front of the scale value; if set to swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom, then set Label options - Scale (CUSTOM) to a custom scale label

Label options - Scale (CUSTOM)

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomScale, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomScale, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

String value

Specifies the custom label to use in front of the scale value; valid only if Label options - Scale is set to swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom

Label options - Scale - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_ScaleTextFormat, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_ScaleTextFormat, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Delimiter

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Delimiter, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Delimiter, swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsDelimiter_e .<Value>)

See swDetailingViewLabelsDelimiter_e for valid options

Specifies the format of the scale value

Label options - Delimiter - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_DelimiterTextFormat, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_DelimiterTextFormat, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Remove space in scale around colon (:) and slash (/)

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_RemoveSpaceInScale, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_RemoveSpaceInScale, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Boolean value

Specifies whether to remove spaces around the delimiter in the scale text

Stacked or In-line

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_Stacked, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_Stacked, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Boolean value

Display label above view

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_AboveView, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_AboveView, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Boolean value

Specifies whether to show label above detail view

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_IncludeLocationLabelsForNewViews, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_IncludeLocationLabelsForNewViews, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingDetailView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingDetailView, <Value>)

Valid Options:

• "Border"

• "Dimensions"

• "Notes"

• "BOM"

• "FORMAT"

This setting is available only on drawings; depending on drawing, some options may not apply
