Lip/Groove PropertyManager

To open the Lip/Groove PropertyManager:

Create a lip or groove fastening feature by clicking Lip/Groove (Fastening Features toolbar) or Insert > Fastening Feature > Lip/Groove.

Body/Part Selection

Create a lip, a groove, or both.

	Groove body	Select a body or component on which to create the groove.
	Lip body	Select a body or component on which to create the lip.
	Direction (optional)	Select a plane, a planar face, or a straight edge to define the direction of the lip and groove. If all the selected faces on which to create the lip and groove are planar and have the same normal, the default direction is normal to the planar faces.

Groove Selection

Grooves remove material from the model.

No groove	Groove with material removed from the inner edge.

	Faces	Select faces on which to create the groove.
	Tangent propagation	Extends the selection to tangent faces.
	Edges	Select the inner or outer edges. This is where the groove removes material.
	Tangent propagation	Extends the selection to tangent edges.
	Groove parameters
	Show preview
	Jump gaps	Allows for adjacent geometry, for example, where ribs join the sidewalls of the part. In this example, select Jump gaps to allow ribs to adjoin lip and groove faces.
	Jump gaps cleared
	Jump gaps selected

Lip Selection

Lips add material to the model.

No lip	Lip with material added to the inner edge.

	Faces	Select faces on which to create the lip.
	Tangent propagation	Extends the selection to tangent faces.
	Edges	Select the inner or outer lip edges. This is where the lip adds material.
	Tangent propagation	Extends the selection to tangent edges.
	Lip parameters
	Show preview
	Jump gaps	See description under Groove Selection
	Maintain existing wall faces	See description under Parameters.

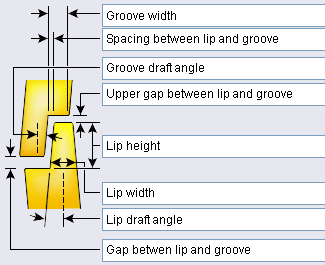

Parameters

This section appears when you select bodies to create both a lip and groove. Set the parameters that control the lip and groove and the interface between them.

Link matched values		Equates these values: Lip draft angle to the groove draft angle Groove width to the lip width plus the spacing between the lip and groove
Show preview
Maintain existing wall faces		If you create a lip on a model wall that has draft, this option maintains the draft when possible and extends the existing wall face to the top of the lip. If you clear this option, the software adds faces.
Original wall with draft	Option selected	Option cleared
	The software maintains the draft and the existing wall to the top of the lip.	The software does not maintain the draft and adds a face to create the lip.

Favorite

Manage a list of favorites that you can reuse in models.

	Apply Defaults/No Favorites	Resets to No Favorite Selected and the default settings.
	Add or Update Favorite	To update a favorite, edit the properties in the PropertyManager, select the name in Favorites, click , and enter a new or existing name.
	Delete Favorite
	Save Favorite
	Load Favorite	Click this option, browse to a folder, and select a favorite.
