Revision Table PropertyManager

Specify properties for revision tables.

To open this PropertyManager:

Click Revision Table Tool_Revision_Table.gif (Table toolbar), or click Insert > Tables > Revision Table.

Table Template

Click Browse for template PM_Table_Browse_Template.gif to choose a standard or custom template. This option is available only during table insertion. The revision table templates supplied with the software add columns to the default format. They are located at: install_dir \lang\english. The standard template (standard revision block.sldrevtbt) creates ZONE, REV., DESCRIPTION, DATE, and APPROVED columns.

Table Position

The stationary corner controls the direction in which the table expands when adding new columns or rows.

Set the Stationary corner to:

PM_Table_Anchor_TopLeft.gif Top Left New columns extend to the right and new rows extend below the anchor point.
PM_Table_Anchor_TopRight.gif Top Right New columns extend to the left and new rows extend below the anchor point.
PM_Table_Anchor_BottomLeft.gif Bottom Left New columns extend to the right and new rows extend above the anchor point.
PM_Table_Anchor_BottomRight.gif Bottom Right New columns extend to the left and new rows extend above the anchor point.

Attach to anchor point

Attaches the specified corner to the table anchor.

The Stationary corner option is not available when you first create the table. If the table is anchored on creation, the stationary corner is automatically selected on the drawing sheet in the quadrant nearest the table anchor.

Revision Symbol

Shapes

Select a border shape for revision symbols.


Circle


Triangle


Square


Hexagon

System Options Enable symbol when adding new revision Allows you to click in the graphics area to place revision symbols when you add a revision to the table. If you clear this option, you can select Revisions > Add Symbol to add a symbol to an existing revision.

Options

Auto Update Zone Cells Select to automatically update zone cells in the revision table when revision symbols are placed or moved in the drawing.

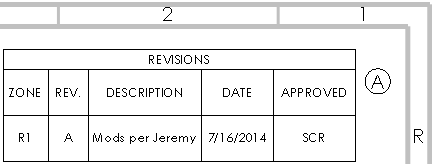

Revision symbol located in Zone R1

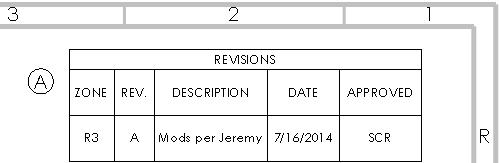

With Auto Update Zone Cells selected, moving the revision symbol updates to Zone R3.

Border

PM_Table_Border_Box.gif Box Border Select a corresponding border thickness from the list.
PM_Table_Border_Grid.gif Grid Border Select a corresponding border thickness from the list.

Table with thicker box and grid borders:



Layer

Select a layer type from the list. The table assumes the layer color.
