Alternate Position View

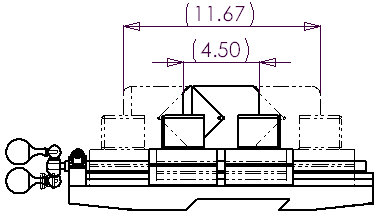

Alternate Position Views indicate the range of motion of an assembly component by showing it in different positions. You can overlay one or more Alternate Position Views on the original view in a phantom font.


  • You can dimension between the primary view and the Alternate Position View.
  • The Alternate Position View is added to the FeatureManager design tree.
  • You can create more than one Alternate Position View in a drawing.
  • The Alternate Position View is not available in Broken, Section, Crop, or Detail views.
  • After you create an Alternate Position View, you can modify it at the assembly and drawing levels.
