Dimensions in Mirrored and Derived Parts

When you create a mirrored or derived part, you can import the sketch and feature dimensions of the original part. You can include these referenced dimensions in drawings created from the mirrored or derived part.

To import dimensions when you mirror or derive a part, select Model dimensions in the Insert Part PropertyManager.

Original part showing sketch dimension

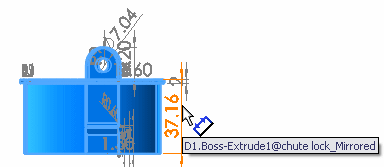

Mirrored part showing imported dimensions

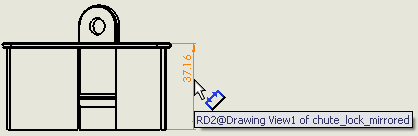

Drawing based on mirrored part
