Viewing Mates from Reference Geometry

You can open the View Mates window for any selected reference geometry, such as planes, axes, or other reference geometry.

To view mates for selected reference geometry:

  1. Open an assembly.

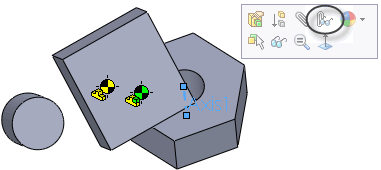

  2. Select mated reference geometry, for example, a mated plane or axis.


  3. Click View Mates menu_View_Mates.gif.

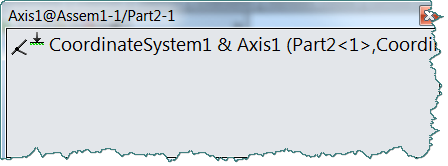

    The View Mates window lists mates that reference the selected reference geometry.
