Displaying Sketch Dimensions in the Flattened State

To display sketch dimensions in flattened state:

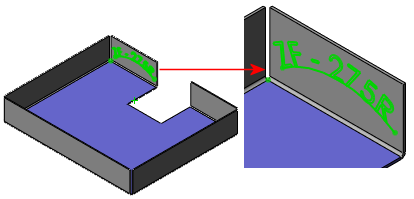

  1. Create a sheet metal part that includes a sketch with dimensions on a face.


  2. Flatten the model.
  3. In the FeatureManager design tree, under Flat-Pattern fm_flat_pattern.png, expand Sketch Transformation FM_folder.gif.

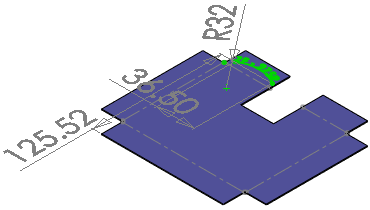

  4. Double-click the derived sketch to display the dimensions in a flattened state.
