Applying Standard Mates from a Context Toolbar

You can apply standard mates in an assembly from a context toolbar.

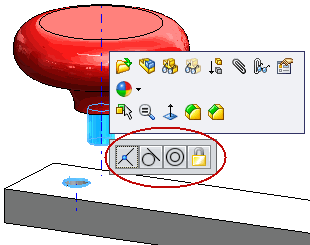

The toolbar appears when you press CTRL + select mating geometry in the graphics area. Only mates that are appropriate for your selections are available.


  1. From an assembly, press CTRL + select entities to mate.

    The default mate is highlighted in the context toolbar.

  2. Select a mate.
  3. For distance or angle mates, enter the mate specification and click PM_OK.gif.
