Access Check-in Flags in Check in Dialog Example (C#)

This example shows how to access the check-in flags in the SOLIDWORKS Enterprise PDM Check in dialog.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//--------------------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//     a. Click File > New > Project > Visual C# > Windows Forms Application.
//     b. Type RefItemContainerCSharp in Name.
//     c. Click Browse and navigate to the folder where to create the project.
//     d. Click OK.
//     e. Click Show All Files in the Solution Explorer toolbar and expand
//        Form1.cs in the Solution Explorer.
//     f. Replace the code in Form1.cs with this code.
//     g. To create the form, replace the code in Form1.Designer.cs with
//        this code.
//     h. To create the class for the callback:
//        1. Right-click RefItemContainerCSharp in the Solution Explorer.
//        2. Click Add > Class.
//        3. Type Callback.cs in Name and click Add.
//        4. Replace the code in Callback.cs with this code.
//  2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click
//     Assemblies > Framework in the left-side panel, browse to the top folder of
//     your SOLIDWORKS Enterprise PDM installation, locate and click
//     EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
//  3. Right-click EPDM.Interop.epdm in References, click Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
//  4. Click Debug > Start Debugging or press F5.
//
// Postconditions:

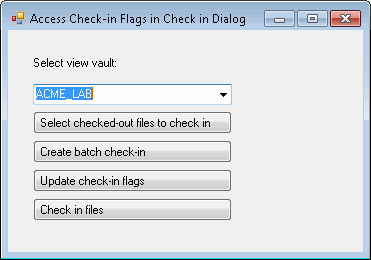

//  1. Displays the Access Check-in Flags in Check in Dialog dialog box.
//  2. Select a vault view.
//  3. Click Select checked-out files to check in.
//     a. Displays the Select files dialog box.
//     b. Click one or more checked-out files to check in.
//     c. Click Open.
//  4. Click Create batch check-in
//     a. At the end of an attempted check-in, displays three message
//        boxes containing ProgressEnd called. Three operations occur for an
//        attempted check-in.
//     b. Click OK to close each message box.
//     c. Displays either:
//        * Message box containing Batch check-in created. Click OK to
//          close the message box.
//          - or -
//        * Message box containing You did not select a file to check in. Please try
//          again. Click OK to close the message box, and repeat steps 3 and 4.
//  5. Click Update check-in flags.
//  6. Click OK to close the message box.
//  7. Click Check in files.
//  8. Displays the Check in dialog box.
//  9. Click Check in to check in the files or Cancel to cancel the check in.
// 10. Displays a message box containing ProgressEnd called. Click OK to close
//     the message box.
// 11. Examine the files in the vault to verify their checked-in or checked-out status.
// 12. Close the Access Check-in Flags in Check in Dialog dialog box.
//--------------------------------------------------------------------------------------


//Form1.cs
using System;
using System.Windows.Forms;
using EPDM.Interop.epdm;

namespace RefItemContainerCSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        IEdmVault5 vault1 = null;
        IEdmVault8 vault = null;
        EdmSelItem[] selFiles = null;
        IEdmBatchUnlock bUnlock = null;

        void Form1_Load(System.Object sender, System.EventArgs e)
        {

            try
            {
                vault1 = new EdmVault5();
                vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = { };

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void BrowseButton_Click(object sender, EventArgs e)
        {
            try
            {
                //Only create a new vault object
                //if one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Display the Select file dialog for user to
                //select the files
                EdmStrLst5 pathList = default(EdmStrLst5);
                pathList = vault.BrowseForFile(this.Handle.ToInt32(),
		(int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitMultipleSel +
		(int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "SOLIDWORKS files " +
		"(*.sldprt; *.sldasm; *.slddrw)|" + "*.sldprt;*.sldasm;*.slddrw|" + "All Files (*.*)|*.*||"""
		"", vault.RootFolderPath"Select files");

                //Exit if the user clicks Cancel
                if (pathList == null)
                    return;

                //Traverse the selected files
                IEdmPos5 pos = default(IEdmPos5);
                pos = pathList.GetHeadPosition();

                //Convert the selected files to an
                //array of EdmSelItem structs
                int nbrFiles = 0;
                nbrFiles = pathList.Count;
                Array.Resize(ref selFiles, nbrFiles);

                int i = 0;
                while (!pos.IsNull)
                {
                    //Get each file path from the selected files list
                    string filePath = null;
                    IEdmFile5 file = default(IEdmFile5);
                    IEdmFolder5 retFolder = default(IEdmFolder5);
                    filePath = pathList.GetNext(pos);
                    file = vault.GetFileFromPath(filePath, out retFolder);
                    selFiles[i].mlDocID = file.ID;
                    selFiles[i].mlProjID = retFolder.ID;
                    i = i + 1;
                }

            }catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }

        private void CreateBatchCheckinButton_Click(object sender, EventArgs e)
        {
            try
            {
                //Only create a new vault object
                //if one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                IEdmVault7 vault2 = (IEdmVault7)vault1;
                bUnlock = (IEdmBatchUnlock)vault2.CreateUtility(EdmUtility.EdmUtil_BatchUnlock);
                bUnlock.AddSelection((EdmVault5)vault1, ref selFiles);
                bool tree = false;
	       Callback myCallback = new Callback();
                tree = bUnlock.CreateTree(this.Handle.ToInt32(), (int)EdmUnlockBuildTreeFlags.Eubtf_MayUnlock, myCallback);
                if (tree == false)
                {
                    MessageBox.Show("You did not select a file to check in. Please try again.");
                    return;
                }

                MessageBox.Show("Batch check in created.");

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void UpdateBatchCheckInButton_Click(object sender, EventArgs e)
        {
             try
            {
                //Only create a new vault object
                //if one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }
                    IEdmRefItemContainer container = null;
                    container = (IEdmRefItemContainer)bUnlock;
                    object[] items = null;
                    IEdmRefItem theItem = null;
                    container.GetItems(EdmRefItemType.Edmrit_All, out items);
                    int j = 0;
                    while (j < items.Length)
                    {
                        IEdmRefItem aItem = null;
                        theItem = (IEdmRefItem)items[j];
                        aItem = theItem;
                        object value = null;
                        aItem.SetProperty(EdmRefItemProperty.Edmrip_CheckKeepLocked, value);
                        j = j + 1;
                    }

                    MessageBox.Show("Check-in flags updated.");
             }

            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }

        private void CheckInButton_Click(object sender, EventArgs e)
        {
            try
            {
                //Only create a new vault object
                //if one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                if (bUnlock.ShowDlg(this.Handle.ToInt32()))
                {
                    Callback myCallback = new Callback();
                    bUnlock.UnlockFiles(this.Handle.ToInt32(), myCallback);
                }
            }

            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

     }
}
//Form1.Designer.cs
namespace RefItemContainerCSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.CreateBatchCheckinButton = new System.Windows.Forms.Button();
            this.UpdateBatchCheckInButton = new System.Windows.Forms.Button();
            this.CheckInButton = new System.Windows.Forms.Button();
            this.BrowseButton = new System.Windows.Forms.Button();
            this.SuspendLayout();
            //
            // VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(24, 29);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            // VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(27, 45);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(187, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            // CreateBatchCheckinButton
            //
            this.CreateBatchCheckinButton.Location = new System.Drawing.Point(27, 122);
            this.CreateBatchCheckinButton.Name = "CreateBatchCheckinButton";
            this.CreateBatchCheckinButton.Size = new System.Drawing.Size(125, 23);
            this.CreateBatchCheckinButton.TabIndex = 4;
            this.CreateBatchCheckinButton.Text = "Create batch check-in";
            this.CreateBatchCheckinButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
            this.CreateBatchCheckinButton.UseVisualStyleBackColor = true;
            this.CreateBatchCheckinButton.Click += new System.EventHandler(this.CreateBatchCheckinButton_Click);
            //
            // UpdateBatchCheckInButton
            //
            this.UpdateBatchCheckInButton.Location = new System.Drawing.Point(27, 164);
            this.UpdateBatchCheckInButton.Name = "UpdateBatchCheckInButton";
            this.UpdateBatchCheckInButton.Size = new System.Drawing.Size(125, 23);
            this.UpdateBatchCheckInButton.TabIndex = 5;
            this.UpdateBatchCheckInButton.Text = "Update check-in flags";
            this.UpdateBatchCheckInButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
            this.UpdateBatchCheckInButton.UseVisualStyleBackColor = true;
            this.UpdateBatchCheckInButton.Click += new System.EventHandler(this.UpdateBatchCheckInButton_Click);
            //
            // CheckInButton
            //
            this.CheckInButton.Location = new System.Drawing.Point(27, 209);
            this.CheckInButton.Name = "CheckInButton";
            this.CheckInButton.Size = new System.Drawing.Size(125, 23);
            this.CheckInButton.TabIndex = 6;
            this.CheckInButton.Text = "Check in files";
            this.CheckInButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
            this.CheckInButton.UseVisualStyleBackColor = true;
            this.CheckInButton.Click += new System.EventHandler(this.CheckInButton_Click);
            //
            // BrowseButton
            //
            this.BrowseButton.Location = new System.Drawing.Point(27, 82);
            this.BrowseButton.Name = "BrowseButton";
            this.BrowseButton.Size = new System.Drawing.Size(125, 23);
            this.BrowseButton.TabIndex = 7;
            this.BrowseButton.Text = "Select checked-out files to check in";
            this.BrowseButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
            this.BrowseButton.UseVisualStyleBackColor = true;
            this.BrowseButton.Click += new System.EventHandler(this.BrowseButton_Click);
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(384, 254);
            this.Controls.Add(this.BrowseButton);
            this.Controls.Add(this.CheckInButton);
            this.Controls.Add(this.UpdateBatchCheckInButton);
            this.Controls.Add(this.CreateBatchCheckinButton);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Access Check-in Flags in Check in Dialog";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Label VaultsLabel;
        private System.Windows.Forms.ComboBox VaultsComboBox;
        private System.Windows.Forms.Button CreateBatchCheckinButton;
        private System.Windows.Forms.Button UpdateBatchCheckInButton;
        private System.Windows.Forms.Button CheckInButton;
        private System.Windows.Forms.Button BrowseButton;
    }
}
//Callback.cs
using EPDM.Interop.epdm;
using System.Windows.Forms;

namespace RefItemContainerCSharp
{
    class Callback : IEdmUnlockOpCallback
    {
        #region IEdmUnlockOpCallback Members
        public EdmUnlockOpReply MsgBox(EdmUnlockOpMsg mssge, int docId, int projID, string path, ref EdmUnlockErrInfo err)
        {
            return EdmUnlockOpReply.Euor_OK;
        }


        public void ProgressBegin(EdmProgressType type, EdmUnlockEvent events, int steps)
        {
            return;
        }


        public void ProgressEnd(EdmProgressType type)
        {
            //Demonstrates callback
            MessageBox.Show("ProgressEnd called.");
            return;
        }


        public bool ProgressStep(EdmProgressType type, string msgText, int progressPos)
        {
            return true;
        }


        public bool ProgressStepEvent(EdmProgressType type, EdmUnlockEventMsg opText, int progressPos)
        {
            return true;
        }

        #endregion

    }
}



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Access Check-in Flags in Check in Dialog Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2015 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
