Add Users Example (C#)

This example shows how to add users to a vault by deserializing an XML file containing user data.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//---------------------------------------------------------------------------
// Preconditions:
//  1. Create an XML file for this example.
//     a. Open a text editor like Notepad and copy and paste this code
//        into the editor.
//     b. Save the file as User.xml and remember where you save the file.
//  2. Start Microsoft Visual Studio 2010.
//     a. Click File > New > Project > C# > Windows Forms Application.
//     b. Type AddUsersCSharp in Name.
//     c. Click Browse and navigate to the folder where to
//        create the project.
//     d. Click OK
//     e. Click Show All Files in the Solution Explorer toolbar and
//        expand Form1.cs in the Solution Explorer.

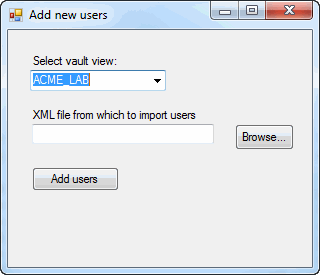

//     f. Create a form similar to the form shown above and change:
//        1. Top label to VaultsLabel.
//        2. Combo box to VaultsCombobox.
//        3. Second label to XmlLabel.
//        4. Text box to XmlTextBox.
//        5. Browse button to BrowseButton.
//        6. Add users button to AddUsersButton.
//     g. Replace the code in Form1.cs with this code.
//     h. Replace the code in Form1.Designer.cs with this code.
//     i. Right-click the AddUsersCSharp project name in the Solution Explorer.
//        1. Click Add > Class > Class.
//        2. Type EdmVaultSingleton.cs in Name.
//        3. Click Add.
//        4. Replace the code in EdmVaultSingleton.cs with this code.
//     j. Right-click the AddUsersCSharp project name in the Solution Explorer.
//        1. Click Add > Class > Class.
//        2. Type User.cs in Name.
//        3. Click Add.
//        4. Replace the code in User.cs with this code.
//  3. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Referenceclick
//     Assemblies > Framework in the left-side panel, browse to the top folder of your
//     SOLIDWORKS Enterprise PDM installation, locate and click
//     EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
//  4. Right-click EPDM.Interop.epdm in Referencesclick Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
//  5. Click Debug > Start Debugging or press F5.
//
// Postconditions:
//  1. Displays a dialog.
//  2. Select a vault.
//  3. Click Browse, locate and select User.xml, and click Open.
//  4. Click Add users.
//     A message box is displayed showing the names of the new users added
//     to the vault.
//  5. Click OK to close the message box.
//  6. Close the dialog.
//  7. Start and log into the SOLIDWORKS Enterprise PDM Administration
//     tool as Admin.
//  8. Expand the vault where the new users were added.
//  9. Expand Users to see the names of the new users.
// 10. Double-click jdoe.
//     a. Examine the properties.
//     b. Click Administrative Permissions and examine the permissions.
//     c. Click OK.
// 11. Double-click jsmith and repeat steps 10a - 10c.
//----------------------------------------------------------------------------

<?xml version="1.0" encoding="utf-8"?>
<ArrayOfAnyType xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <anyType xsi:type="User">
      <sn>Doe</sn>
      <givenName>John</givenName>
      <title>Designer</title>
      <cn>John Doe</cn>
      <username>jdoe@yourcompany.com</username>
  </anyType>
  <anyType xsi:type="User">
      <sn>Smith</sn>
      <givenName>Jane</givenName>
      <title>Manager</title>
      <cn>Jane Smith</cn>
      <username>jsmith@yourcompany.com</username>
  </anyType>
</ArrayOfAnyType>
//Form1.cs
using System;
using System.Collections;
using System.Data;
using System.Diagnostics;
using System.IO;
using System.Xml.Serialization;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using System.Xml;
using System.Runtime.InteropServices;


namespace AddUsersCSharp
{
	public partial class Form1 : Form
	{
		public Form1()
		{
			InitializeComponent();
		}

		public void BrowseButton_Click(System.Object sender, System.EventArgs e)
		{
			try
			{
				DialogResult dlgResult = XmlOpenFileDialog.ShowDialog();
				if (dlgResult == DialogResult.Cancel)
				{
					return;
				}
				XmlTextBox.Text = XmlOpenFileDialog.FileName;
			}
			catch (System.Runtime.InteropServices.COMException ex)
			{
				MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
			}
			catch (Exception ex)
			{
				MessageBox.Show(ex.Message);
			}
		}


		public void AddUsersButton_Click(System.Object sender, System.EventArgs e)
		{
			StreamReader StrReader = null;

			try
			{
				//Deserialize users from an XML file
				Type[] ExtraTypes = { Type.GetType("AddUsersCSharp.User") };
				XmlSerializer XmlSer = new XmlSerializer(Type.GetType("System.Collections.ArrayList"), ExtraTypes);
				StrReader = new StreamReader(XmlTextBox.Text);
				ArrayList NewUsers = (ArrayList)XmlSer.Deserialize(StrReader);

				//Obtain the only instance of the IEdmVaultObject
				IEdmVault5 vault = EdmVaultSingleton.Instance;

				if (!vault.IsLoggedIn)
				{
					//Log into selected vault as the current user
					vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
				}

				//Assign IEdmVault object to the IEdmUserMgr7 object
				IEdmUserMgr7 UsrMgr = (IEdmUserMgr7)vault;

				//Declare EdmUserData array to hold new user data
				EdmUserData2[] UserData = new EdmUserData2[NewUsers.Count];

				//Set the EdmUserData members for each new user
				for (int i = 0; i <= NewUsers.Count - 1; i++)
				{
					if (NewUsers[i] != null)
					{
						UserData[i].mbsCompleteName = (NewUsers[i] as User).cn;
						UserData[i].mbsEmail = (NewUsers[i] as User).username;
						UserData[i].mbsInitials = (NewUsers[i] as User).givenName.Substring(0, 1) + (NewUsers[i] as User).sn.Substring(0, 1);
						UserData[i].mbsUserName = (NewUsers[i] as User).username.Split('@')[0];
						//Return user's IEdmUser6 interface in mpoUser
						UserData[i].mlFlags = (int)EdmUserDataFlags.Edmudf_GetInterface;
						//Add this user even if others cannot be added
						UserData[i].mlFlags += (int)EdmUserDataFlags.Edmudf_ForceAdd;

						//Set permissions
						EdmSysPerm[] perms = new EdmSysPerm[3];
						perms[0] = EdmSysPerm.EdmSysPerm_EditUserMgr;
						perms[1] = EdmSysPerm.EdmSysPerm_EditReportQuery;
						perms[2] = EdmSysPerm.EdmSysPerm_MandatoryVersionComments;
						UserData[i].moSysPerms = perms;
					}
				}

				//Add the users to the vault
				UsrMgr.AddUsers2(ref UserData);

				string msg = "";
				foreach (EdmUserData2 usr in UserData)
				{
					if (usr.mhStatus == 0)

					{
						msg += "Created user \"" + usr.mpoUser.Name + "\" successfully. ID = " + usr.mpoUser.ID.ToString() + "\n";

					}
					else
					{
						IEdmVault11 vault2 = (IEdmVault11)vault;
						msg += "Error creating user \"" + usr.mbsUserName + "\" - " + vault2.GetErrorMessage(usr.mhStatus) + "\n";
					}
				}
				MessageBox.Show(msg);


			}
			catch (System.Runtime.InteropServices.COMException ex)
			{
				MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
			}
			catch (Exception ex)
			{
				MessageBox.Show(ex.Message);
			}
			finally
			{
				if ((StrReader != null))
				{
					StrReader.Close();
				}
			}
		}


		public void AddUsers_Load(System.Object sender, System.EventArgs e)
		{

			try
			{
			  //Obtain the only instance of the IEdmVault object
			  IEdmVault8 vault = (IEdmVault8)EdmVaultSingleton.Instance;

				EdmViewInfo[] Views = null;

				vault.GetVaultViews(out Views, false);
				VaultsComboBox.Items.Clear();
				foreach (EdmViewInfo View in Views)
				{
					VaultsComboBox.Items.Add(View.mbsVaultName);
				}
				if (VaultsComboBox.Items.Count > 0)
				{
					VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
				}
			}
			catch (System.Runtime.InteropServices.COMException ex)
			{
				MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
			}
			catch (Exception ex)
			{
				MessageBox.Show(ex.Message);
			}
		}

	}
}
//Form1.Designer.cs
namespace AddUsersCSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.XmlLabel = new System.Windows.Forms.Label();
            this.XmlTextBox = new System.Windows.Forms.TextBox();
            this.BrowseButton = new System.Windows.Forms.Button();
            this.AddUsersButton = new System.Windows.Forms.Button();
            this.XmlOpenFileDialog = new System.Windows.Forms.OpenFileDialog();
            this.SuspendLayout();

            //
            //XmlOpenFileDialog
            //
            this.XmlOpenFileDialog.Filter = "XML files|*.XML";
            //

            //
            // VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(23, 34);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            // VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(26, 62);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(171, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            // XmlLabel
            //
            this.XmlLabel.AutoSize = true;
            this.XmlLabel.Location = new System.Drawing.Point(26, 111);
            this.XmlLabel.Name = "XmlLabel";
            this.XmlLabel.Size = new System.Drawing.Size(173, 13);
            this.XmlLabel.TabIndex = 2;
            this.XmlLabel.Text = "XML file from which to import users:";
            //
            // XmlTextBox
            //
            this.XmlTextBox.Location = new System.Drawing.Point(26, 139);
            this.XmlTextBox.Name = "XmlTextBox";
            this.XmlTextBox.Size = new System.Drawing.Size(171, 20);
            this.XmlTextBox.TabIndex = 3;
            //
            // BrowseButton
            //
            this.BrowseButton.Location = new System.Drawing.Point(203, 135);
            this.BrowseButton.Name = "BrowseButton";
            this.BrowseButton.Size = new System.Drawing.Size(75, 23);
            this.BrowseButton.TabIndex = 4;
            this.BrowseButton.Text = "Browse...";
            this.BrowseButton.UseVisualStyleBackColor = true;
            this.BrowseButton.Click += new System.EventHandler(BrowseButton_Click);
            //
            // AddUsersButton
            //
            this.AddUsersButton.Location = new System.Drawing.Point(29, 189);
            this.AddUsersButton.Name = "AddUsersButton";
            this.AddUsersButton.Size = new System.Drawing.Size(75, 23);
            this.AddUsersButton.TabIndex = 5;
            this.AddUsersButton.Text = "Add users";
            this.AddUsersButton.UseVisualStyleBackColor = true;
            this.AddUsersButton.Click += new System.EventHandler(this.AddUsersButton_Click);
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 262);
            this.Controls.Add(this.AddUsersButton);
            this.Controls.Add(this.BrowseButton);
            this.Controls.Add(this.XmlTextBox);
            this.Controls.Add(this.XmlLabel);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Add new users";
            this.Load += new System.EventHandler(this.AddUsers_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Label VaultsLabel;
        private System.Windows.Forms.ComboBox VaultsComboBox;
        private System.Windows.Forms.Label XmlLabel;
        private System.Windows.Forms.TextBox XmlTextBox;
        private System.Windows.Forms.Button BrowseButton;
        private System.Windows.Forms.Button AddUsersButton;
        private System.Windows.Forms.OpenFileDialog XmlOpenFileDialog;
    }
}

//EdmVaultSingleton.cs
using System;
using System.Collections;
using System.Diagnostics;
using System.Threading;
using EPDM.Interop.epdm;

namespace AddUsersCSharp
{
    public class EdmVaultSingleton
    {
        private static EdmVault5 mInstance = null;
        private static object mLockObj = new object();

        private EdmVaultSingleton()
        {

        }

        public static EdmVault5 Instance
        {
            get
            {
                try
                {
                    if (mInstance == null)
                    {
                        Monitor.Enter(mLockObj);
                        if (mInstance == null)
                        {
                            mInstance = new EdmVault5();
                        }
                        Monitor.Exit(mLockObj);
                    }
                }
                catch (Exception ex)
                {
                    Monitor.Exit(mLockObj);
                }

                return mInstance;

            }
        }

    }
}
//User.cs
using System;
using System.Collections;
using System.Diagnostics;

namespace AddUsersCSharp
{
    public class User
    {
        //First name
        private string mSn;
        //Last name
        private string mGivenName;
        //Title
        private string mTitle;
        //Complete name
        private string mCn;
        //Email address
        private string mUsername;

        public User()
        {

        }

        public string sn
        {
            get { return mSn; }
            set { mSn = value; }
        }

        public string givenName
        {
            get { return mGivenName; }
            set { mGivenName = value; }
        }

        public string title
        {
            get { return mTitle; }
            set { mTitle = value; }
        }

        public string cn
        {
            get { return mCn; }
            set { mCn = value; }
        }

        public string username
        {
            get { return mUsername; }
            set { mUsername = value; }
        }
    }
}


Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Add Users Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2015 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
