Batch Add Files and Folders to Vault Example (C#)

This example shows how to add several files and folders to the vault in one batch.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//     a. Click File > New > Project > Visual C# > Windows Forms Application.
//     b. Type BatchAddFiles_CSharp in Name.
//     c. Click Browse and navigate to the folder where to create the project.
//     d. Click OK
//     e. Click Show All Files in the Solution Explorer toolbar and expand
//        Form1.cs in the Solution Explorer.
//     f. Replace the code in Form1.cs with this code.
//     g. To create the form, replace the code in Form1.Designer.cs with
//        this code.

//  2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click
//     Assemblies > Framework in the left-side panel, browse to the top folder of
//     your SOLIDWORKS Enterprise PDM installation, locate and click
//     EPDM.Interop.epdm.dll, click Open, and click Add).
//  3. Add Microsoft.VisualBasic as a reference (click
//     COM in the left-side panel, click
//     Microsoft.VisualBasic, click Add, and click Close).
//  4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
//  5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

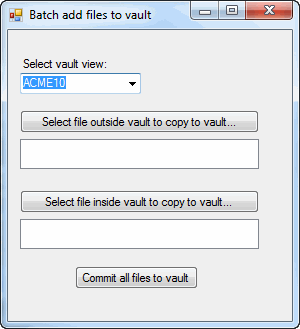

//  1. The Batch add files to vault dialog box displays.
//     a. Select a vault view.
//     b. Click Select file outside vault to copy to vault.
//     c. In the Select File dialog:
//        1. Click a file outside the vault.
//        2. Click Open.
//     d. Click Select file inside vault to copy to vault.
//     e. In the Select File dialog:

//        1. Click a file in the vault.
//        2. Click Open.
//     f. Click Commit all files to vault.
//  2. Click Add in the Batch Items dialog box.

//  3. Click OK to close the message box.
//     Two new folders, Folder1 and Folder2, are created in the vault's
//     root directory. The first selected file is copied to Folder1.
//     The second selected file is copied to Folder2.
//  4. Close the Batch add files to vault dialog box.

//----------------------------------------------------------------------------


//Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace BatchAddFiles_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private IEdmVault5 vault1 = null;
        IEdmBatchAdd2 batchAdder;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void CopyToVault_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                FileList1.Items.Clear();

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;

                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Select File dialog
                SelectFileDialog.InitialDirectory = vault1.RootFolderPath;
                //Show the Select File dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = SelectFileDialog.ShowDialog();
                //If the user did not click Open, exit this subroutine
                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    return;
                }

                batchAdder = (IEdmBatchAdd2)vault2.CreateUtility(EdmUtility.EdmUtil_BatchAdd);

                // Add Folder1 to the batch
                string newFolder = vault1.RootFolderPath + "\\Folder1";
                batchAdder.AddFolderPath(newFolder, 0, (int)EdmBatchAddFolderFlag.Ebaff_Nothing);

                foreach (string FileName in SelectFileDialog.FileNames)
                {
                    FileList1.Items.Add(FileName);

                    // Add each selected file to the batch
                    batchAdder.AddFileFromPathToPath(FileName, newFolder, 0);
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
        public void CopyFromVault_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                FileList2.Items.Clear();

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;

                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Select File dialog
                SelectFileDialog.InitialDirectory = vault1.RootFolderPath;
                //Show the Select File dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = SelectFileDialog.ShowDialog();
                //If the user didn't click Open, exit this subroutine
                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    return;
                }

                // Add Folder2 to the batch
                batchAdder.AddFolder(vault1.RootFolderID"Folder2", 0, (int)EdmBatchAddFolderFlag.Ebaff_Nothing);

                IEdmFile5 aFile = default(IEdmFile5);
                IEdmFolder5 aFolder = default(IEdmFolder5);
                IEdmPos5 aPos = default(IEdmPos5);
                IEdmFolder5 ppoRetParentFolder = default(IEdmFolder5);
                foreach (string FileName in SelectFileDialog.FileNames)
                {
                    FileList2.Items.Add(FileName);

                    aFile = vault1.GetFileFromPath(FileName, out ppoRetParentFolder);
                    aPos = aFile.GetFirstFolderPosition();
                    aFolder = aFile.GetNextFolder(aPos);

                    // Add each selected file to the batch
                    batchAdder.AddFileFromVaultToPath(aFile.ID, aFolder.ID, vault1.RootFolderPath + "\\Folder2");
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void BatchAdd_Click(System.Object sender, System.EventArgs e)
        {
            try
            {

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;
                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                // Show all of the items in the batch
                batchAdder.ShowDlg(this.Handle.ToInt32(), (int)EdmAddFileDlgFlag.Eafdf_Nothing, "Files and folders in the batch:""Batch Items");

                EdmFileInfo[] ppoAddedFiles = new EdmFileInfo[10];

                // Commit all of the items in the batch to the vault
                batchAdder.CommitAdd(this.Handle.ToInt32(), ref ppoAddedFiles);

                //Display the returned information in a message box

                int idx;
                idx = ppoAddedFiles.GetLowerBound(0);
                string msg = "";


                while (idx <= ppoAddedFiles.GetUpperBound(0))
                {
                    string row = null;
                    row = "(" + ppoAddedFiles[idx].mbsPath + ") arg = " + Convert.ToString(ppoAddedFiles[idx].mlArg);

                    if (ppoAddedFiles[idx].mhResult == 0)
                    {
                        row = row + " status = OK ";
                    }
                    else
                    {
                        string oErrName = "";
                        string oErrDesc = "";

                        vault1.GetErrorString(ppoAddedFiles[idx].mhResultout oErrName, out oErrDesc);
                        row = row + " status = " + oErrName;
                    }

                    idx = idx + 1;
                    msg = msg + Constants.vbLf + row;

                }

                Interaction.MsgBox(msg);

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }
    }
}



Back to top

//Form1.Designer.cs

namespace BatchAddFiles_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.BatchAdd = new System.Windows.Forms.Button();
            this.CopyToVault = new System.Windows.Forms.Button();
            this.FileList1 = new System.Windows.Forms.ListBox();
            this.CopyFromVault = new System.Windows.Forms.Button();
            this.FileList2 = new System.Windows.Forms.ListBox();
            this.SelectFileDialog = new System.Windows.Forms.OpenFileDialog();
            this.SuspendLayout();
            //
            //VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(12, 27);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            //VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(12, 43);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            //BatchAdd
            //
            this.BatchAdd.Location = new System.Drawing.Point(67, 236);
            this.BatchAdd.Name = "BatchAdd";
            this.BatchAdd.Size = new System.Drawing.Size(123, 23);
            this.BatchAdd.TabIndex = 2;
            this.BatchAdd.Text = "Commit all files to vault";
            this.BatchAdd.UseVisualStyleBackColor = true;
            this.BatchAdd.Click += new System.EventHandler(this.BatchAdd_Click);
            //
            //CopyToVault
            //
            this.CopyToVault.Location = new System.Drawing.Point(12, 80);
            this.CopyToVault.Name = "CopyToVault";
            this.CopyToVault.Size = new System.Drawing.Size(239, 23);
            this.CopyToVault.TabIndex = 3;
            this.CopyToVault.Text = "Select file outside vault to copy to vault...";
            this.CopyToVault.UseVisualStyleBackColor = true;
            this.CopyToVault.Click += new System.EventHandler(this.CopyToVault_Click);
            //
            //FileList1
            //
            this.FileList1.FormattingEnabled = true;
            this.FileList1.Location = new System.Drawing.Point(12, 109);
            this.FileList1.Name = "FileList1";
            this.FileList1.Size = new System.Drawing.Size(239, 30);
            this.FileList1.TabIndex = 4;
            //
            //CopyFromVault
            //
            this.CopyFromVault.Location = new System.Drawing.Point(12, 160);
            this.CopyFromVault.Name = "CopyFromVault";
            this.CopyFromVault.Size = new System.Drawing.Size(239, 23);
            this.CopyFromVault.TabIndex = 5;
            this.CopyFromVault.Text = "Select file inside vault to copy to vault...";
            this.CopyFromVault.UseVisualStyleBackColor = true;
            this.CopyFromVault.Click += new System.EventHandler(this.CopyFromVault_Click);
            //
            //FileList2
            //
            this.FileList2.FormattingEnabled = true;
            this.FileList2.Location = new System.Drawing.Point(12, 189);
            this.FileList2.Name = "FileList2";
            this.FileList2.Size = new System.Drawing.Size(239, 30);
            this.FileList2.TabIndex = 6;
            //
            //SelectFileDialog
            //
            this.SelectFileDialog.Title = "Select File";
            //
            //Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 291);
            this.Controls.Add(this.FileList2);
            this.Controls.Add(this.CopyFromVault);
            this.Controls.Add(this.FileList1);
            this.Controls.Add(this.CopyToVault);
            this.Controls.Add(this.BatchAdd);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Batch add files to vault";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Label VaultsLabel;
        private System.Windows.Forms.ComboBox VaultsComboBox;
        private System.Windows.Forms.Button BatchAdd;
        private System.Windows.Forms.Button CopyToVault;
        private System.Windows.Forms.ListBox FileList1;
        private System.Windows.Forms.Button CopyFromVault;
        private System.Windows.Forms.ListBox FileList2;
        private System.Windows.Forms.OpenFileDialog SelectFileDialog;
    }
}



Back to top



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Batch Add Files and Folders to Vault Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2015 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
