Batch Revoke State Transitions of Files Example (VB.NET)
This example shows how to revoke the state transitions of several
files in one batch.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SOLIDWORKS Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type BatchChangeFileStates in Name.
' c. Click Browse and navigate to the folder where to create the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the
form, replace the code in Form1.Designer.vb with
' this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS Enterprise PDM installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Ensure that:
' a. A workflow exists with
a No
Approval Required transition.
'
b. One or more vault files are transitioned to the Approved state using the
' No Approval Required transition.
' 5. Click Debug > Start Debugging or press F5.
'
' Postconditions:

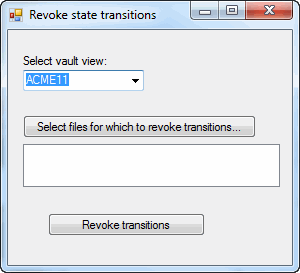

' 1. The Revoke
state transitions dialog box displays.
' a. Select a vault view.
' b. Click Select files for
which to revoke transitions.
' c. In the Select File dialog:
' 1. Select a
file that transitioned to the Approved state using the
' No Approval
Required transition.
' 2. Click Open.
' 2. Click Revoke
transitions.
' 3. Click OK in the Revoke Transition dialog box.
' The selected file's
No Approval Required transition is revoked.
' 4. Close the Revoke
state transitions dialog box.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
Private vault1 As IEdmVault5 = Nothing
Dim batchChanger As IEdmBatchChangeState3
Dim aFile As IEdmFile5
Dim aFolder As IEdmFolder5
Dim aPos As IEdmPos5
Dim retVal As Boolean
Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
Dim vault1 As IEdmVault5 = New EdmVault5()
Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
Dim Views As EdmViewInfo() = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub SelectFiles_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SelectFiles.Click
Try
File1List.Items.Clear()
Dim vault2 As IEdmVault11 = Nothing
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
vault2 = DirectCast(vault1, IEdmVault11)
If Not vault1.IsLoggedIn Then
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Set the initial directory in the Select File dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath
'Show the Select File dialog
Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
DialogResult = OpenFileDialog1.ShowDialog()
'If the user didn't click Open, exit this subroutine
If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
Return
End If
batchChanger = vault2.CreateUtility(EdmUtility.EdmUtil_BatchChangeState)
For Each FileName As String In OpenFileDialog1.FileNames
File1List.Items.Add(FileName)
aFile = vault1.GetFileFromPath(FileName)
aPos = aFile.GetFirstFolderPosition
aFolder = aFile.GetNextFolder(aPos)
' Add each file selected to the batch
batchChanger.AddFile(aFile.ID, aFolder.ID)
Next
batchChanger.Comment = "Revoke transitions."
batchChanger.AllowAdminToRevoke(True)
'batchChanger.SetRevokeUserID(vault2.GetLoggedInWindowsUserID(vault2.Name))
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub RevokeTransitions_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles RevokeTransitions.Click
Try
Dim vault2 As IEdmVault7 = Nothing
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
vault2 = DirectCast(vault1, IEdmVault7)
If Not vault1.IsLoggedIn Then
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
' Get list of files affected by the transition revocation
Dim selList As IEdmSelectionList6
selList = batchChanger.GetFileList(EdmChangeStateFileListFlag.Ecsflf_GetChanged)
Dim selObject As EdmSelectionObject = New EdmSelectionObject()
Dim str As String
Dim i As Integer
aPos = selList.GetHeadPosition()
str = "Files affected by this transition revocation: "
i = 0
While i < selList.Count
selList.GetNext2(aPos, selObject)
str = str + selObject.mbsPath
i = i + 1
End While
'MsgBox(str)
' Create the file reference tree and verify transition revocation
retVal = batchChanger.CreateTreeForRevoke("No Approval Required")
Dim retVal2 As Boolean
If (retVal) Then
' Show all of the items in the batch
retVal2 = batchChanger.ShowDlg(Me.Handle.ToInt32())
If (retVal2) Then
' Commit all of the items in the batch to the vault
batchChanger.ChangeState(Me.Handle.ToInt32())
End If
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
End Class
Back to top
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.VaultsLabel = New System.Windows.Forms.Label()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.SelectFiles = New System.Windows.Forms.Button()
Me.File1List = New System.Windows.Forms.ListBox()
Me.RevokeTransitions = New System.Windows.Forms.Button()
Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
Me.SuspendLayout()
'
'VaultsLabel
'
Me.VaultsLabel.AutoSize = True
Me.VaultsLabel.Location = New System.Drawing.Point(12, 24)
Me.VaultsLabel.Name = "VaultsLabel"
Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
Me.VaultsLabel.TabIndex = 0
Me.VaultsLabel.Text = "Select vault view:"
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(15, 40)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
Me.VaultsComboBox.TabIndex = 1
'
'SelectFiles
'
Me.SelectFiles.Location = New System.Drawing.Point(15, 85)
Me.SelectFiles.Name = "SelectFiles"
Me.SelectFiles.Size = New System.Drawing.Size(233, 23)
Me.SelectFiles.TabIndex = 2
Me.SelectFiles.Text = "Select files for which to revoke transitions..."
Me.SelectFiles.UseVisualStyleBackColor = True
'
'File1List
'
Me.File1List.FormattingEnabled = True
Me.File1List.HorizontalScrollbar = True
Me.File1List.Location = New System.Drawing.Point(15, 114)
Me.File1List.Name = "File1List"
Me.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended
Me.File1List.Size = New System.Drawing.Size(257, 43)
Me.File1List.TabIndex = 4
'
'RevokeTransitions
'
Me.RevokeTransitions.Location = New System.Drawing.Point(40, 183)
Me.RevokeTransitions.Name = "RevokeTransitions"
Me.RevokeTransitions.Size = New System.Drawing.Size(157, 23)
Me.RevokeTransitions.TabIndex = 6
Me.RevokeTransitions.Text = "Revoke transitions"
Me.RevokeTransitions.UseVisualStyleBackColor = True
'
'OpenFileDialog1
'
Me.OpenFileDialog1.FileName = "OpenFileDialog1"
Me.OpenFileDialog1.Multiselect = False
Me.OpenFileDialog1.Title = "Select File"
'
'Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(284, 235)
Me.Controls.Add(Me.RevokeTransitions)
Me.Controls.Add(Me.File1List)
Me.Controls.Add(Me.SelectFiles)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.VaultsLabel)
Me.Name = "Form1"
Me.Text = "Revoke state transitions"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents VaultsLabel As System.Windows.Forms.Label
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents SelectFiles As System.Windows.Forms.Button
Friend WithEvents File1List As System.Windows.Forms.ListBox
Friend WithEvents RevokeTransitions As System.Windows.Forms.Button
Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
End Class
