Create Card View Example (C#)

This example shows how to create a file or folder card view.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type CreateCardView_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create the project.
//    d. Click OK.
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with
//       this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//    name in the Solution Explorer, click Add Reference, click
//    Assemblies > Framework in the left-side panel, browse to the top folder of
//    your SOLIDWORKS Enterprise PDM installation, locate and click
//    EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
//    click Microsoft.VisualBasic, click Add, and click Close).

// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 5.
Check out a file from the vault.
// 6. Click Debug > Start Debugging or press F5.
//
// Postconditions:
//

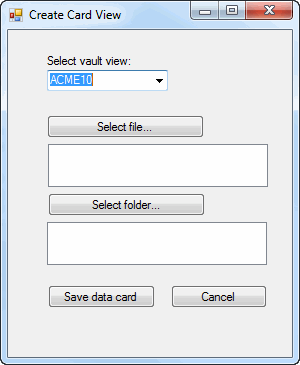

1. Displays the Create Card View dialog box.
// 2. Select a vault view.
// 3. Click either:
//    a. Select file.
//    b. In the Select File dialog:
//       1. Click the file checked out in Preconditions step 5.
//       2. Click Open.
//    c. In the file data card, modify a field.
//    d. Click Save data card.
//    e. Check in the file and inspect its data card.
//       - or -
//    a. Select folder.
//    b. In the Select Folder dialog, select a vault folder and click OK.
//    c. In the folder data card, click the Edit Values tab.
//    d. Modify a field.
//    e. Click Save data card.
//    f. Inspect the folder card in the vault.
// 4. Close the Create Card View dialog box.

//----------------------------------------------------------------------------



//Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace CreateCardView_CSharp
{
    public partial class Form1 : FormEdmCallback
    {

        private IEdmVault5 vault1 = null;
        IEdmCardView63 view;
        IEdmFile7 aFile;
        IEdmFolder5 aFolder;

        public Form1()
        {
            InitializeComponent();

        }

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void SelectFile_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                File1List.Items.Clear();

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;

                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                SelectFolder.Enabled = false;

                //Set the initial directory in the Select File dialog
                OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;

                //Show the Select File dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = OpenFileDialog1.ShowDialog();

                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    // do nothing
                }
                else
                {
                    foreach (string FileName in OpenFileDialog1.FileNames)
                    {
                        File1List.Items.Add(FileName);
                        aFile = (IEdmFile7)vault1.GetFileFromPath(FileName, out aFolder);
                        ShowCard(aFolder, aFile.ID);
                    }
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void SelectFolder_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                Folder1List.Items.Clear();

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;

                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                SelectFile.Enabled = false;
                aFolder = vault1.BrowseForFolder(this.Handle.ToInt32(), "Select folder:");
                if (Folder1List == null)
                    return;
                Folder1List.Items.Add(aFolder.Name);
                ShowCard(aFolder, 0);

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void SaveCard_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                Folder1List.Items.Clear();

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;

                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                view.SaveData();
                SaveCard.Enabled = false;

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        //Display the card of the selected file or folder
        public void ShowCard(IEdmFolder5 folder, int fileID)
        {
            // Create the card view interface
            view = (IEdmCardView63)folder.CreateCardView(fileID, this.Handle.ToInt32(), 40, 300, (EdmCallback)this);
            if (view == null)
            {
                Interaction.MsgBox("The file does not have a card.");
                return;
            }

            // Set input focus to the first control in the card
            view.SetFocus(0);

            // Enable all controls in the card
            view.Update(EdmCardViewUpdateType.EdmCvut_EnableCtrl);

            // Get the size needed to display the card
            int width = 0;
            int height = 0;
            view.GetCardSize(out width, out height);

            // Resize the form window to make room for the card
            this.Width = (width + 100);
            this.Height = (height + 400);
            view.ShowWindow(true);

            SaveCard.Enabled = false;
        }

        public void CancelButton_Click(System.Object sender, System.EventArgs e)
        {
            view.OnCancel();
            SaveCard.Enabled = false;
            SelectFile.Enabled = true;
            SelectFolder.Enabled = true;
            view.ShowWindow(false);
        }

        public void SetModifiedFlag()
        {
            SaveCard.Enabled = true;
        }

        public void SetProgressPos(int lPos)
        {
        }

        public void SetProgressRange(int lMin, int lMax)
        {
        }

        public void SetStatusMessage(string bsMessage)
        {
        }
    }

}



Back to top

//Form1.Designer.cs

namespace CreateCardView_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.SelectFile = new System.Windows.Forms.Button();
            this.File1List = new System.Windows.Forms.ListBox();
            this.SaveCard = new System.Windows.Forms.Button();
            this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
            this.SelectFolder = new System.Windows.Forms.Button();
            this.Folder1List = new System.Windows.Forms.ListBox();
            this.Cancel = new System.Windows.Forms.Button();
            this.SuspendLayout();
            //
            //VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(36, 24);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            //VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(39, 40);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            //SelectFile
            //
            this.SelectFile.Location = new System.Drawing.Point(39, 85);
            this.SelectFile.Name = "SelectFile";
            this.SelectFile.Size = new System.Drawing.Size(157, 23);
            this.SelectFile.TabIndex = 2;
            this.SelectFile.Text = "Select file...";
            this.SelectFile.UseVisualStyleBackColor = true;
            this.SelectFile.Click += new System.EventHandler(SelectFile_Click);
            //
            //File1List
            //
            this.File1List.FormattingEnabled = true;
            this.File1List.HorizontalScrollbar = true;
            this.File1List.Location = new System.Drawing.Point(40, 114);
            this.File1List.Name = "File1List";
            this.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended;
            this.File1List.Size = new System.Drawing.Size(220, 43);
            this.File1List.TabIndex = 4;
            //
            //SaveCard
            //
            this.SaveCard.Location = new System.Drawing.Point(40, 255);
            this.SaveCard.Name = "SaveCard";
            this.SaveCard.Size = new System.Drawing.Size(107, 23);
            this.SaveCard.TabIndex = 6;
            this.SaveCard.Text = "Save data card";
            this.SaveCard.UseVisualStyleBackColor = true;
            this.SaveCard.Click +=new System.EventHandler(SaveCard_Click);
            //
            //OpenFileDialog1
            //
            this.OpenFileDialog1.FileName = "OpenFileDialog1";
            this.OpenFileDialog1.Title = "Select File";
            //
            //SelectFolder
            //
            this.SelectFolder.Location = new System.Drawing.Point(40, 163);
            this.SelectFolder.Name = "SelectFolder";
            this.SelectFolder.Size = new System.Drawing.Size(157, 23);
            this.SelectFolder.TabIndex = 7;
            this.SelectFolder.Text = "Select folder...";
            this.SelectFolder.UseVisualStyleBackColor = true;
            this.SelectFolder.Click += new System.EventHandler(this.SelectFolder_Click);
            //
            //Folder1List
            //
            this.Folder1List.FormattingEnabled = true;
            this.Folder1List.Location = new System.Drawing.Point(39, 192);
            this.Folder1List.Name = "Folder1List";
            this.Folder1List.Size = new System.Drawing.Size(220, 43);
            this.Folder1List.TabIndex = 8;
            //
            //Cancel
            //
            this.Cancel.Location = new System.Drawing.Point(163, 255);
            this.Cancel.Name = "Cancel";
            this.Cancel.Size = new System.Drawing.Size(96, 23);
            this.Cancel.TabIndex = 9;
            this.Cancel.Text = "Cancel";
            this.Cancel.UseVisualStyleBackColor = true;
            this.Cancel.Click += new System.EventHandler(this.Form1_Load);
            //
            //Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 327);
            this.Controls.Add(this.Cancel);
            this.Controls.Add(this.Folder1List);
            this.Controls.Add(this.SelectFolder);
            this.Controls.Add(this.SaveCard);
            this.Controls.Add(this.File1List);
            this.Controls.Add(this.SelectFile);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Create Card View";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }
        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Button SelectFile;
        internal System.Windows.Forms.ListBox File1List;
        internal System.Windows.Forms.Button SaveCard;
        internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;
        internal System.Windows.Forms.Button SelectFolder;
        internal System.Windows.Forms.ListBox Folder1List;
        internal System.Windows.Forms.Button Cancel;

        #endregion
    }
}



Back to top



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Create Card View Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2015 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
