Get and Set Folder Permissions Example (C#)

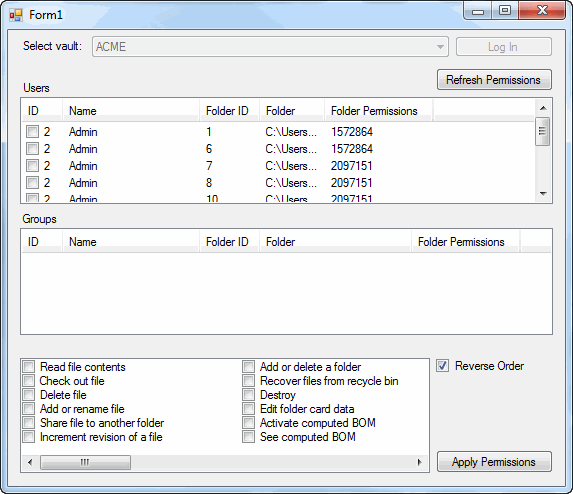

This example shows how to create an application that displays a form in which a user can assign permissions to folders for users and groups in a vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//  2. Click File > New > Project > Visual Basic > Windows Forms Application.
//  3. Type CallingCSharp in Name.
//  4. Click Browse and navigate to the folder where to create the project.
//  5. Click OK.
//  6. Create a form similar to the form shown above with the following names for the form controls:
//     a. Label1 (label control with text, "Select vault:")
//     b. comboVault (combo box control)
//     c. buttonLogIn (button with text, "Log In")
//     d. Label2 (label with text, "Users")
//     e. buttonRefresh (button with text, "Refresh Permissions")
//     f. listViewUsers (list view control)
//        ColumnHeader1 (ID)
//        ColumnHeader2 (Name)
//        ColumnHeader3 (Folder ID)
//        ColumnHeader7 (Folder)
//        ColumnHeader8 (Folder Permissions)
//     g. Label3 (label with text, "Groups")
//     h. listViewGroups (list view control)
//        ColumnHeader4 (ID)
//        ColumnHeader5 (Name)
//        ColumnHeader6 (Folder ID)
//        ColumnHeader9 (Folder)
//        ColumnHeader10 (Folder Permissions)
//     i. listViewPermissions (list view control)
//     j. checkboxReverseOrder (check box with text, "Reverse Order")
//     k. buttonApply (button with text, "Apply Permissions")
//  7. Replace the code in Form1.cs with this code.
//  8. Replace the code in Form1.Designer.cs with this code.

//  9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click Assemblies > Framework in the
//     left-side panel, browse to the top folder of your SOLIDWORKS Enterprise PDM installation,
//     locate and click EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 10. Right-click References > EPDM.Interop.epdm, click Properties, and set
//     Embed Interop Types to False to handle methods
//     that pass arrays of structures.
// 11. Click Debug > Start Debugging or press F5.
//
// Postconditions:
// 1. In the Form1 dialog, select a vault and click Log In.
//    Wait for the application to populate the Users and Groups list boxes.
// 2. Click permissions in the list box located left of the Reverse Order check box.
// 3. Optionally select the Reverse Order check box.
// 4. Select the check boxes in front of the users and folders to which to assign permissions.
// 5. Click Apply Permissions.
//    Wait for the application to populate the Users list.
//    The folder permissions are updated for the selected users.
// 6. Select the check boxes in front of the groups and folders to which to assign permissions.
// 7. Click Apply Permissions.
//    Wait for the application to populate the Groups list.
//    The folder permissions are updated for the selected groups.
//----------------------------------------------------------------------------


// Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;

namespace CallingCSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        IEdmVault5 vault1;
        IEdmVault8 vault;
        private Dictionary<intstring> folders;
        String val;
        private enum MyEdmRightsFlags : int
        {
            MyRight_All = EdmRightFlags.EdmRight_All,
            MyRight_None = EdmRightFlags.EdmRight_None,
            MyRight_Read = EdmRightFlags.EdmRight_Read,
            MyRight_Lock = EdmRightFlags.EdmRight_Lock,
            MyRight_Delete = EdmRightFlags.EdmRight_Delete,
            MyRight_AddRename = EdmRightFlags.EdmRight_Add,
            MyRight_Share = EdmRightFlags.EdmRight_Share,
            MyRight_IncrementRevision = EdmRightFlags.EdmRight_IncrementRevision,
            MyRight_AddDeleteFolder = EdmRightFlags.EdmRight_AddFolder,
            MyRight_RecoverTrash = EdmRightFlags.EdmRight_RecoverTrash,
            MyRight_DestroyTrash = EdmRightFlags.EdmRight_DestroyTrash,
            MyRight_EditFolderCard = EdmRightFlags.EdmRight_EditFolderCard,
            MyRight_BomActivate = EdmRightFlags.EdmRight_BomActivate,
            MyRight_MaySeeComputedBOM = EdmRightFlags.EdmRight_MaySeeComputedBOM,
            MyRight_AssignGroupMembership = 0x1000,
            MyRightAssignFilePermissions = 0x2000,
            MyRight_PermitGroupAccess = 0x4000,
            MyRight_ReadNamedBOM = 0x8000,
            MyRight_ChangeCard = EdmRightFlags.EdmRight_ChangeCard,
            MyRight_ShowWorkingVersion = EdmRightFlags.EdmRight_ShowWorkingVersion,
            MyRight_Rollback = EdmRightFlags.EdmRight_Rollback,
            MyRight_ColdStoreRestore = EdmRightFlags.EdmRight_ColdStoreRestore,
            MyRight_EditVerFreeVarData = EdmRightFlags.EdmRight_EditVerFreeVarData
        }

        private void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                vault1 = new EdmVault5();
                vault = (IEdmVault8)vault1;
                EdmViewInfo[] aViews = null;
                vault.GetVaultViews(out aViews, false);
                comboVault.Items.Clear();
                if (aViews != null)
                {
                    foreach (EdmViewInfo View in aViews)
                    {
                        comboVault.Items.Add(View.mbsVaultName);
                    }
                    comboVault.SelectedIndex = 0;
                }

                Dictionary<MyEdmRightsFlagsString> RightLabels = new Dictionary<MyEdmRightsFlagsString>()
            {{MyEdmRightsFlags.MyRight_Read, "Read file contents"}, {MyEdmRightsFlags.MyRight_Lock, "Check out file"}, {MyEdmRightsFlags.MyRight_Delete, "Delete file"}, {MyEdmRightsFlags.MyRight_AddRename, "Add or rename file"},{MyEdmRightsFlags.MyRight_Share, "Share file to another folder"}, {MyEdmRightsFlags.MyRight_IncrementRevision, "Increment revision of a file"}, {MyEdmRightsFlags.MyRight_AddDeleteFolder, "Add or delete a folder"}, {MyEdmRightsFlags.MyRight_RecoverTrash, "Recover files from recycle bin"}, {MyEdmRightsFlags.MyRight_DestroyTrash, "Destroy"}, {MyEdmRightsFlags.MyRight_EditFolderCard, "Edit folder card data"}, {MyEdmRightsFlags.MyRight_BomActivate, "Activate computed BOM"}, {MyEdmRightsFlags.MyRight_MaySeeComputedBOM, "See computed BOM"}, {MyEdmRightsFlags.MyRight_AssignGroupMembership, "Assign group membership"}, {MyEdmRightsFlags.MyRightAssignFilePermissions, "Assign File permissions"}, {MyEdmRightsFlags.MyRight_PermitGroupAccess, "Permit or deny group-level access to files"}, {MyEdmRightsFlags.MyRight_ReadNamedBOM, "Read named bill of materials"}, {MyEdmRightsFlags.MyRight_ChangeCard, "Can update the design of cards"}, {MyEdmRightsFlags.MyRight_ShowWorkingVersion, "Show working versions of files"}, {MyEdmRightsFlags.MyRight_Rollback, "Rollback"},{MyEdmRightsFlags.MyRight_ColdStoreRestore, "Restore file from cold storage"}, {MyEdmRightsFlags.MyRight_EditVerFreeVarData, "Edit version free variable data"}};

                foreach (MyEdmRightsFlags flag in Enum.GetValues(typeof(MyEdmRightsFlags)))
                {
                    if (RightLabels.ContainsKey(flag))
                    {
                        String val;
                        RightLabels.TryGetValue(flag, out val);
                        ListViewItem rightItem = listViewPermissions.Items.Add(val);
                        rightItem.Tag = flag;
                    }
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void buttonLogIn_Click(object sender, System.EventArgs e)
        {
            try {
            vault.LoginAuto(comboVault.Text, (int)this.Handle);
            comboVault.Enabled = false;
            buttonLogIn.Enabled = false;
            buttonApply.Enabled = true;
            buttonRefresh.Enabled = true;

            folders = new Dictionary<intstring>();

            IEdmFolder7 rootFolder = (IEdmFolder7)vault.RootFolder;
            BuildFolderDictionary(rootFolder);

            ShowAllUserPermissions();
            ShowAllGroupPermissions();
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void BuildFolderDictionary(IEdmFolder7 folder)
        {
            folders.Add(folder.ID, folder.LocalPath);

            IEdmPos5 posSubFolder = folder.GetFirstSubFolderPosition();
            while (!(posSubFolder.IsNull))
            {
                IEdmFolder7 subFolder = (IEdmFolder7)folder.GetNextSubFolder(posSubFolder);
                BuildFolderDictionary(subFolder);
            }
        }

        private void ShowAllUserPermissions()
        {
            listViewUsers.Items.Clear();
            IEdmUserMgr7 userMgr = (IEdmUserMgr7)vault;
            IEdmPos5 userPos = userMgr.GetFirstUserPosition();
            while (!(userPos.IsNull))
            {
                IEdmUser5 user = (IEdmUser5)userMgr.GetNextUser(userPos);

                foreach (int folderID in folders.Keys)
                {
                    EdmFolderPermission[] aPermissions = null;
                    userMgr.GetFolderPermissions(user.ID, user.ObjectType, folderID, (int)EdmGetPermFlag.EdmGetPerm_OnlyExplicitlySet, out aPermissions);

                    if (aPermissions != null && aPermissions.Length > 0)
                    {
                        ListViewItem itemUser = listViewUsers.Items.Add(user.ID.ToString());
                        itemUser.SubItems.Add(user.Name);
                        itemUser.SubItems.Add(folderID.ToString());
                        folders.TryGetValue(folderID, out val);
                        itemUser.SubItems.Add(val);
                        EdmFolderPermission folderPermission = (EdmFolderPermission)aPermissions.GetValue(0);
                        itemUser.SubItems.Add(folderPermission.mlEdmRightFlag.ToString());
                    }
                }
            }
        }

        private void ShowAllGroupPermissions()
        {
            listViewGroups.Items.Clear();
            IEdmUserMgr7 userMgr = (IEdmUserMgr7)vault;
            IEdmPos5 groupPos = userMgr.GetFirstUserGroupPosition();
            while (!(groupPos.IsNull))
            {
                IEdmUserGroup5 @group = (IEdmUserGroup5)userMgr.GetNextUserGroup(groupPos);

                foreach (int folderID in folders.Keys)
                {
                    EdmFolderPermission[] aPermissions = null;
                    userMgr.GetFolderPermissions(@group.ID, @group.ObjectType, folderID, 0, out aPermissions);

                    if (aPermissions != null && aPermissions.Length > 0)
                    {
                        ListViewItem itemGroup = listViewGroups.Items.Add(@group.ID.ToString());
                        itemGroup.SubItems.Add(@group.Name);
                        itemGroup.SubItems.Add(folderID.ToString());
                        folders.TryGetValue(folderID, out val);
                        itemGroup.SubItems.Add(val);
                        EdmFolderPermission folderPermission = (EdmFolderPermission)aPermissions.GetValue(0);
                        itemGroup.SubItems.Add(folderPermission.mlEdmRightFlag.ToString());
                    }
                }
            }
        }

        private void buttonApply_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                int assignedRights = 0;
                foreach (ListViewItem rightItem in listViewPermissions.Items)
                {
                    if (rightItem.Checked)
                    {
                        assignedRights = assignedRights | (int)rightItem.Tag;
                    }
                }

                IEdmUserMgr7 userMgr = (IEdmUserMgr7)vault;

                List<EdmFolderPermission> listPermissions = new List<EdmFolderPermission>();
                foreach (ListViewItem itemUser in listViewUsers.Items)
                {
                    if (itemUser.Checked)
                    {
                        int folderID = Convert.ToInt32(itemUser.SubItems[2].Text);
                        EdmFolderPermission permission = default(EdmFolderPermission);
                        {
                            permission.mlFolderID = folderID;
                            permission.mlOwnerID = Convert.ToInt32(itemUser.SubItems[0].Text);
                            permission.meOwnerType = EdmObjectType.EdmObject_User;
                            permission.mlEdmRightFlag = assignedRights;
                        }
                        listPermissions.Add(permission);
                    }
                }

                foreach (ListViewItem itemGroup in listViewGroups.Items)
                {
                    if (itemGroup.Checked)
                    {
                        int folderID = Convert.ToInt32(itemGroup.SubItems[2].Text);
                        EdmFolderPermission permission = default(EdmFolderPermission);
                        {
                            permission.mlFolderID = folderID;
                            permission.mlOwnerID = Convert.ToInt32(itemGroup.SubItems[0].Text);
                            permission.meOwnerType = EdmObjectType.EdmObject_UserGroup;
                            permission.mlEdmRightFlag = assignedRights;
                        }
                        listPermissions.Add(permission);
                    }
                }

                if (checkboxReverseOrder.Checked)
                    listPermissions.Reverse();

                EdmFolderPermission[] permissions = listPermissions.ToArray();
                userMgr.SetFolderPermissions(permissions);

                ShowAllGroupPermissions();
                ShowAllUserPermissions();
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void buttonRefresh_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                ShowAllGroupPermissions();
                ShowAllUserPermissions();
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


    }

}

// Form1.Designer.cs

namespace CallingCSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.buttonLogIn = new System.Windows.Forms.Button();
            this.label2 = new System.Windows.Forms.Label();
            this.buttonRefresh = new System.Windows.Forms.Button();
            this.label3 = new System.Windows.Forms.Label();
            this.checkboxReverseOrder = new System.Windows.Forms.CheckBox();
            this.buttonApply = new System.Windows.Forms.Button();
            this.listViewUsers = new System.Windows.Forms.ListView();
            this.columnHeader1 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader2 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader3 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader7 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader8 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.listViewGroups = new System.Windows.Forms.ListView();
            this.columnHeader4 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader5 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader6 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader9 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.columnHeader10 = ((System.Windows.Forms.ColumnHeader)(new System.Windows.Forms.ColumnHeader()));
            this.listViewPermissions = new System.Windows.Forms.ListView();
            this.comboVault = new System.Windows.Forms.ComboBox();
            this.label4 = new System.Windows.Forms.Label();
            this.SuspendLayout();
            //
            // buttonLogIn
            //
            this.buttonLogIn.Location = new System.Drawing.Point(518, 27);
            this.buttonLogIn.Name = "buttonLogIn";
            this.buttonLogIn.Size = new System.Drawing.Size(75, 23);
            this.buttonLogIn.TabIndex = 2;
            this.buttonLogIn.Text = "Log In";
            this.buttonLogIn.UseVisualStyleBackColor = true;
            this.buttonLogIn.Click += new System.EventHandler(this.buttonLogIn_Click);
            //
            // label2
            //
            this.label2.AutoSize = true;
            this.label2.Location = new System.Drawing.Point(38, 85);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(37, 13);
            this.label2.TabIndex = 3;
            this.label2.Text = "Users";
            //
            // buttonRefresh
            //
            this.buttonRefresh.Location = new System.Drawing.Point(518, 75);
            this.buttonRefresh.Name = "buttonRefresh";
            this.buttonRefresh.Size = new System.Drawing.Size(126, 23);
            this.buttonRefresh.TabIndex = 4;
            this.buttonRefresh.Text = "Refresh Permissions";
            this.buttonRefresh.UseVisualStyleBackColor = true;
            this.buttonRefresh.Click += new System.EventHandler(this.buttonRefresh_Click);
            //
            // label3
            //
            this.label3.AutoSize = true;
            this.label3.Location = new System.Drawing.Point(38, 227);
            this.label3.Name = "label3";
            this.label3.Size = new System.Drawing.Size(44, 13);
            this.label3.TabIndex = 6;
            this.label3.Text = "Groups";
            //
            // checkboxReverseOrder
            //
            this.checkboxReverseOrder.AutoSize = true;
            this.checkboxReverseOrder.Location = new System.Drawing.Point(518, 368);
            this.checkboxReverseOrder.Name = "checkboxReverseOrder";
            this.checkboxReverseOrder.Size = new System.Drawing.Size(95, 17);
            this.checkboxReverseOrder.TabIndex = 9;
            this.checkboxReverseOrder.Text = "Reverse Order";
            this.checkboxReverseOrder.UseVisualStyleBackColor = true;
            //
            // buttonApply
            //
            this.buttonApply.Location = new System.Drawing.Point(518, 407);
            this.buttonApply.Name = "buttonApply";
            this.buttonApply.Size = new System.Drawing.Size(126, 23);
            this.buttonApply.TabIndex = 10;
            this.buttonApply.Text = "Apply Permissions";
            this.buttonApply.UseVisualStyleBackColor = true;
            this.buttonApply.Click += new System.EventHandler(buttonApply_Click);
            //
            // listViewUsers
            //
            this.listViewUsers.CheckBoxes = true;
            this.listViewUsers.Columns.AddRange(new System.Windows.Forms.ColumnHeader[] {
            this.columnHeader1,
            this.columnHeader2,
            this.columnHeader3,
            this.columnHeader7,
            this.columnHeader8});
            this.listViewUsers.Location = new System.Drawing.Point(38, 112);
            this.listViewUsers.Name = "listViewUsers";
            this.listViewUsers.Size = new System.Drawing.Size(501, 97);
            this.listViewUsers.TabIndex = 11;
            this.listViewUsers.UseCompatibleStateImageBehavior = false;
            this.listViewUsers.View = System.Windows.Forms.View.Details;
            //
            // columnHeader1
            //
            this.columnHeader1.Text = "ID";
            this.columnHeader1.Width = 41;
            //
            // columnHeader2
            //
            this.columnHeader2.Text = "Name";
            this.columnHeader2.Width = 137;
            //
            // columnHeader3
            //
            this.columnHeader3.Text = "Folder ID";
            //
            // columnHeader7
            //
            this.columnHeader7.Text = "Folder";
            this.columnHeader7.Width = 152;
            //
            // columnHeader8
            //
            this.columnHeader8.Text = "Folder Permissions";
            this.columnHeader8.Width = 108;
            //
            // listViewGroups
            //
            this.listViewGroups.CheckBoxes = true;
            this.listViewGroups.Columns.AddRange(new System.Windows.Forms.ColumnHeader[] {
            this.columnHeader4,
            this.columnHeader5,
            this.columnHeader6,
            this.columnHeader9,
            this.columnHeader10});
            this.listViewGroups.Location = new System.Drawing.Point(38, 257);
            this.listViewGroups.Name = "listViewGroups";
            this.listViewGroups.Size = new System.Drawing.Size(501, 97);
            this.listViewGroups.TabIndex = 12;
            this.listViewGroups.UseCompatibleStateImageBehavior = false;
            this.listViewGroups.View = System.Windows.Forms.View.Details;
            //
            // columnHeader4
            //
            this.columnHeader4.Text = "ID";
            this.columnHeader4.Width = 41;
            //
            // columnHeader5
            //
            this.columnHeader5.Text = "Name";
            this.columnHeader5.Width = 137;
            //
            // columnHeader6
            //
            this.columnHeader6.Text = "Folder ID";
            //
            // columnHeader9
            //
            this.columnHeader9.Text = "Folder";
            this.columnHeader9.Width = 152;
            //
            // columnHeader10
            //
            this.columnHeader10.Text = "Folder Permissions";
            this.columnHeader10.Width = 108;
            //
            // listViewPermissions
            //
            this.listViewPermissions.CheckBoxes = true;
            this.listViewPermissions.Location = new System.Drawing.Point(38, 383);
            this.listViewPermissions.Name = "listViewPermissions";
            this.listViewPermissions.Size = new System.Drawing.Size(431, 97);
            this.listViewPermissions.TabIndex = 13;
            this.listViewPermissions.UseCompatibleStateImageBehavior = false;
            this.listViewPermissions.View = System.Windows.Forms.View.List;
            //
            // comboVault
            //
            this.comboVault.FormattingEnabled = true;
            this.comboVault.Location = new System.Drawing.Point(108, 27);
            this.comboVault.Name = "comboVault";
            this.comboVault.Size = new System.Drawing.Size(361, 21);
            this.comboVault.TabIndex = 14;
            //
            // label4
            //
            this.label4.AutoSize = true;
            this.label4.Location = new System.Drawing.Point(38, 27);
            this.label4.Name = "label4";
            this.label4.Size = new System.Drawing.Size(66, 13);
            this.label4.TabIndex = 15;
            this.label4.Text = "Select vault:";
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(749, 516);
            this.Controls.Add(this.label4);
            this.Controls.Add(this.comboVault);
            this.Controls.Add(this.listViewPermissions);
            this.Controls.Add(this.listViewGroups);
            this.Controls.Add(this.listViewUsers);
            this.Controls.Add(this.buttonApply);
            this.Controls.Add(this.checkboxReverseOrder);
            this.Controls.Add(this.label3);
            this.Controls.Add(this.buttonRefresh);
            this.Controls.Add(this.label2);
            this.Controls.Add(this.buttonLogIn);
            this.Name = "Form1";
            this.Text = "Folder Permissions";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Label label1;
        private System.Windows.Forms.Button buttonLogIn;
        private System.Windows.Forms.Label label2;
        private System.Windows.Forms.Button buttonRefresh;
        private System.Windows.Forms.Label label3;
        private System.Windows.Forms.CheckBox checkboxReverseOrder;
        private System.Windows.Forms.Button buttonApply;
        private System.Windows.Forms.ListView listViewUsers;
        private System.Windows.Forms.ListView listViewGroups;
        private System.Windows.Forms.ListView listViewPermissions;
        private System.Windows.Forms.ComboBox comboVault;
        public System.Windows.Forms.ColumnHeader columnHeader1;
        public System.Windows.Forms.ColumnHeader columnHeader2;
        public System.Windows.Forms.ColumnHeader columnHeader3;
        public System.Windows.Forms.ColumnHeader columnHeader7;
        public System.Windows.Forms.ColumnHeader columnHeader8;
        public System.Windows.Forms.ColumnHeader columnHeader4;
        public System.Windows.Forms.ColumnHeader columnHeader5;
        public System.Windows.Forms.ColumnHeader columnHeader6;
        public System.Windows.Forms.ColumnHeader columnHeader9;
        public System.Windows.Forms.ColumnHeader columnHeader10;
        private System.Windows.Forms.Label label4;
    }
}







Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Get and Set Folder Permissions Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2015 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
