Graph a Workflow Example (C#)
This example shows how to graph a workflow.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SOLIDWORKS Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > Visual
C# > Windows Forms Application.
// b. Type PaintWorkflowGraph_CSharp in Name.
// c. Click Browse and navigate to the folder where to create
// the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form,
replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SOLIDWORKS Enterprise PDM installation, locate and click
// EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
// click Microsoft.VisualBasic, click Add, and click Close).
// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

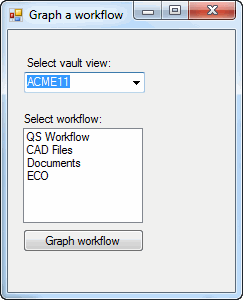

// 1. Displays the Graph
a workflow dialog box.
// 2. Maximize the dialog box for the workflow graph.
// 3. Select a vault view.
// 4. Click a workflow.
// 5. Click Graph
workflow.
//
6. Graphs the selected workflow in the dialog box.
// 7. Close the Graph
a workflow dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;
namespace PaintWorkflowGraph_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
IEdmVault5 vault1 = null;
IEdmWorkflow6 wf;
IEdmWorkflowMgr6 wfmgr;
IEdmPos5 pos;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void GraphWorkflow_Click(System.Object sender, System.EventArgs e)
{
//Graph workflow
try
{
IEdmVault7 vault2 = default(IEdmVault7);
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Retrieve the graphics interface of this window
System.Drawing.Graphics gfx = default(System.Drawing.Graphics);
gfx = this.CreateGraphics();
gfx.Clear(Color.AliceBlue);
//Create font with which to draw text
System.Drawing.Font font = default(System.Drawing.Font);
font = new System.Drawing.Font("Arial", 10, FontStyle.Bold);
//Loop over all the workflows to find the selected workflow
pos = wfmgr.GetFirstWorkflowPosition();
while (!pos.IsNull)
{
wf = wfmgr.GetNextWorkflow(pos);
if ((wf.Name == ListBox1.SelectedItem.ToString()))
{
//Loop over all workflow transitions
pos = default(IEdmPos5);
pos = wf.GetFirstTransitionPosition();
while (!pos.IsNull)
{
IEdmTransition7 trans = default(IEdmTransition7);
trans = (IEdmTransition7)wf.GetNextTransition(pos);
//Draw the arrow of the transition
EdmPoint[] vertices = null;
vertices = null;
trans.GetArrowVertices(out vertices);
PaintArrow(gfx, vertices);
//Get the transition box
EdmRect transRect = default(EdmRect);
trans.GetRect(out transRect);
System.Drawing.RectangleF rectF = default(System.Drawing.RectangleF);
rectF.X = transRect.mlLeft;
rectF.Y = transRect.mlTop;
rectF.Width = transRect.mlRight - transRect.mlLeft;
rectF.Height = transRect.mlBottom - transRect.mlTop;
//Draw the transition box
gfx.FillRectangle(Brushes.LightYellow, rectF);
gfx.DrawRectangle(Pens.Black, rectF.X, rectF.Y, rectF.Width, rectF.Height);
gfx.DrawString(trans.Name, font, Brushes.Black, rectF);
}
//Loop over all workflow states
pos = wf.GetFirstStatePosition();
while (!pos.IsNull)
{
IEdmState7 state = default(IEdmState7);
state = (IEdmState7)wf.GetNextState(pos);
//Get the state box
EdmRect stateRect = default(EdmRect);
state.GetRect(out stateRect);
System.Drawing.RectangleF rectF = default(System.Drawing.RectangleF);
rectF.X = stateRect.mlLeft;
rectF.Y = stateRect.mlTop;
rectF.Width = stateRect.mlRight - stateRect.mlLeft;
rectF.Height = stateRect.mlBottom - stateRect.mlTop;
//Draw the state box
gfx.FillRectangle(Brushes.Azure, rectF);
gfx.DrawRectangle(Pens.Black, rectF.X, rectF.Y, rectF.Width, rectF.Height);
gfx.DrawString(state.Name, font, Brushes.Black, rectF);
}
}
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
//Draw the arrow of a transition
private void PaintArrow(System.Drawing.Graphics gfx, EdmPoint[] vertices)
{
try
{
System.Drawing.PointF[] points = new System.Drawing.PointF[Information.UBound(vertices) + 1];
int i = 0;
i = Information.LBound(vertices);
while (i <= Information.UBound(vertices))
{
points[i].X = vertices[i].mlX;
points[i].Y = vertices[i].mlY;
i = i + 1;
}
//Draw the arrow lines
gfx.DrawLines(Pens.DarkRed, points);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void VaultsComboBox_SelectedIndexChanged(object sender, EventArgs e)
{
try
{
vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
ListBox1.Items.Clear();
wfmgr = (IEdmWorkflowMgr6)vault.CreateUtility(EdmUtility.EdmUtil_WorkflowMgr);
pos = wfmgr.GetFirstWorkflowPosition();
while (!pos.IsNull)
{
wf = wfmgr.GetNextWorkflow(pos);
ListBox1.Items.Add(wf.Name);
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
Back to top
//Form1.Designer.cs
namespace PaintWorkflowGraph_CSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.GraphWorkflow = new System.Windows.Forms.Button();
this.ListBox1 = new System.Windows.Forms.ListBox();
this.Label1 = new System.Windows.Forms.Label();
this.SuspendLayout();
//
// VaultsLabel
//
this.VaultsLabel.Anchor = ((System.Windows.Forms.AnchorStyles)((System.Windows.Forms.AnchorStyles.Bottom | System.Windows.Forms.AnchorStyles.Right)));
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(13, 26);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(94, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = " Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.Anchor = ((System.Windows.Forms.AnchorStyles)((System.Windows.Forms.AnchorStyles.Bottom | System.Windows.Forms.AnchorStyles.Right)));
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(16, 42);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
// GraphWorkflow
//
this.GraphWorkflow.Anchor = ((System.Windows.Forms.AnchorStyles)((System.Windows.Forms.AnchorStyles.Bottom | System.Windows.Forms.AnchorStyles.Right)));
this.GraphWorkflow.Location = new System.Drawing.Point(15, 199);
this.GraphWorkflow.Name = "GraphWorkflow";
this.GraphWorkflow.Size = new System.Drawing.Size(121, 23);
this.GraphWorkflow.TabIndex = 5;
this.GraphWorkflow.Text = "Graph workflow";
this.GraphWorkflow.UseVisualStyleBackColor = true;
this.GraphWorkflow.Click += new System.EventHandler(this.GraphWorkflow_Click);
//
// ListBox1
//
this.ListBox1.Anchor = ((System.Windows.Forms.AnchorStyles)((System.Windows.Forms.AnchorStyles.Bottom | System.Windows.Forms.AnchorStyles.Right)));
this.ListBox1.FormattingEnabled = true;
this.ListBox1.HorizontalScrollbar = true;
this.ListBox1.Location = new System.Drawing.Point(15, 98);
this.ListBox1.Name = "ListBox1";
this.ListBox1.Size = new System.Drawing.Size(120, 95);
this.ListBox1.TabIndex = 6;
//
// Label1
//
this.Label1.Anchor = ((System.Windows.Forms.AnchorStyles)((System.Windows.Forms.AnchorStyles.Bottom | System.Windows.Forms.AnchorStyles.Right)));
this.Label1.AutoSize = true;
this.Label1.Location = new System.Drawing.Point(13, 82);
this.Label1.Name = "Label1";
this.Label1.Size = new System.Drawing.Size(85, 13);
this.Label1.TabIndex = 7;
this.Label1.Text = "Select workflow:";
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(227, 262);
this.Controls.Add(this.Label1);
this.Controls.Add(this.ListBox1);
this.Controls.Add(this.GraphWorkflow);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Graph a workflow";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Button GraphWorkflow;
internal System.Windows.Forms.ListBox ListBox1;
internal System.Windows.Forms.Label Label1;
}
}
