Set Part Numbers Using Default Serial Numbers Example (C#)

This example shows how to set part numbers using default serial numbers.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS Enterprise PDM, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//     a. Click File > New > Project > Visual C# > Windows Forms Application.
//     b. Type SerialNumbersCSharp in Name.
//     c. Click Browse and navigate to the folder where to create the project.
//     d. Click OK
//     e. Click Show All Files in the Solution Explorer toolbar and expand
//        Form1.cs in the Solution Explorer.
//     f. Replace the code in Form1.cs with this code.
//     g. To create the form, replace the code in Form1.Designer.cs with
//        this code.
//  2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click
//     Assemblies > Framework in the left-side panel, browse to the top folder of
//     your SOLIDWORKS Enterprise PDM installation, locate and click
//     EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
//  3. Right-click EPDM.Interop.epdm in References, click Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
//  4. Ensure that you have:
//     * a vault with at least one serial number generator.
//     * a checked-out file in that vault with its Part Number variable's
//       default set to a serial number.
//  5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

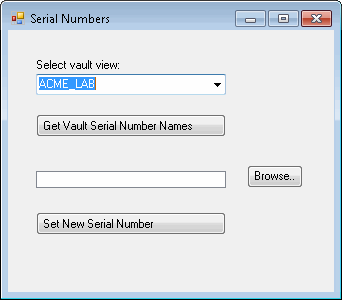

//  1. Displays the Serial Numbers dialog box.
//  2. Select a vault view.
//  3. Click Get Vault Serial Number Names.
//  4. Displays a message box containing the names of the serial number
//     generators for the selected vault.
//  5. Click OK to close the message box.
//  6. Click Browse.
//     a. Click a checked-out file in the selected vault whose
//        data card has a Part Number variable.
//     b. Click Open.
//     The selected file's path and file name appear in the Serial
//     Numbers dialog box.
//  7. Click Set New Serial Number
//  8. Displays a message box verifying that the Part Number was
//     set and shows the value of that Part Number.
//     NOTES:
//     * The value set for the Part Number is the next number in the first
//       serial number generator shown in the message box displayed in
//       step 3.
//     * Make note of the Part Number.
//  9. Click OK to close the message box.
// 10. Check in the file whose Part Number was set in step 7, then check out the
//     file.
// 11. Examine the Part Number on the data card of the checked-out file.
// 12. Close the Serial Numbers dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;

namespace SerialNumbersCSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        private IEdmVault5 vault1 = null;
        string aSerialNbrName;
        string aFileName;
        IEdmFile5 aFile;
        string aFolder;
        IEdmSerNoGen7 serialNbrs;

    	private void Form1_Load(System.Object sender, System.EventArgs e)
	    {

		try {
			vault1 = new EdmVault5();
            		IEdmVault8 vault = (IEdmVault8)vault1;
			EdmViewInfo[] Views = null;

			vault.GetVaultViews(out Views, false);
			VaultsComboBox.Items.Clear();
			foreach (EdmViewInfo View in Views) {
				VaultsComboBox.Items.Add(View.mbsVaultName);
			}
			if (VaultsComboBox.Items.Count > 0) {
				VaultsComboBox.Text = (string) VaultsComboBox.Items[0];
			}

		} catch (System.Runtime.InteropServices.COMException ex) {
			MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " "  + ex.Message);
		} catch (Exception ex) {
			MessageBox.Show(ex.Message);
		}
	}

	public void Button1_Click(System.Object sender, System.EventArgs e)
	{
		try {
			//Only create a new vault object
			//if one hasn't been created yet
			IEdmVault11 vault2 = null;
			if (vault1 == null) {
				vault1 = new EdmVault5();
			}
			vault2 = (IEdmVault11)vault1;
			if (!vault1.IsLoggedIn) {
				//Log into selected vault as the current user
				vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
			}

			serialNbrs = (IEdmSerNoGen7)vault2.CreateUtility(EdmUtility.EdmUtil_SerNoGen);
			string[] names = {	};
			serialNbrs.GetSerialNumberNames(out names);
			string myMessage = "";
			myMessage = "Serial number names in selected vault: " + "\n ";
			int idx = 0;
			idx = (names.GetLowerBound(0));
			while (idx <= (names.GetUpperBound(0))) {
				myMessage = myMessage + names[idx] + "\n";
				idx = idx + 1;
			}

			// Use this serial number generator
			aSerialNbrName = names[0];

			MessageBox.Show(myMessage);

		} catch (System.Runtime.InteropServices.COMException ex) {
			MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
		} catch (Exception ex) {
			MessageBox.Show(ex.Message);
		}
	}

	public void BrowseButton_Click(System.Object sender, System.EventArgs e)
	{
		try {

			//Set the initial directory in the Select a file dialog
			OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
			//Show the Select a file dialog
			System.Windows.Forms.DialogResult DialogResult;
			DialogResult = OpenFileDialog1.ShowDialog();

			if (!(DialogResult == System.Windows.Forms.DialogResult.OK)) {
				// Do nothingelse {
				// Browse for a file whose serial number to set
				// File's data card must have a Part Number associated
				// with a serial number generator and must be checked out
				string fileName = OpenFileDialog1.FileName;
				FileListBox.Items.Add(fileName);
                			IEdmFolder5 retFolder = default(IEdmFolder5);
				aFile = vault1.GetFileFromPath(fileName, out retFolder);

			}

		} catch (System.Runtime.InteropServices.COMException ex) {
			MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
		} catch (Exception ex) {
			MessageBox.Show(ex.Message);
		}
	}

	public void NewButton_Click(System.Object sender, System.EventArgs e)
	{
		try {

			IEdmSerNoValue serialNbrValue = default(IEdmSerNoValue);
			serialNbrValue = serialNbrs.AllocSerNoValue(aSerialNbrName, this.Handle.ToInt32(), " ", 0, 0, 0, 0);
			dynamic serialNbrValueValue = serialNbrValue.Value;
			IEdmEnumeratorVariable5 enumVariable = default(IEdmEnumeratorVariable5);
			enumVariable = aFile.GetEnumeratorVariable(aFileName);
			// Set the Part Number of the selected file
			enumVariable.SetVar("Part Number""@", serialNbrValueValue);
            		IEdmEnumeratorVariable8 enumVariable8 = (IEdmEnumeratorVariable8)enumVariable;
			enumVariable8.CloseFile(true);

			MessageBox.Show("Part Number set to " + serialNbrValueValue.ToString() + "." + " ");


		} catch (System.Runtime.InteropServices.COMException ex) {
			MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
		} catch (Exception ex) {
			MessageBox.Show(ex.Message);
		}
	}
    }

}
//Form1.Designer.cs
using Microsoft.VisualBasic;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Data;
using System.Diagnostics;

namespace SerialNumbersCSharp
{
	partial class Form1
	{
		/// <summary>
		/// Required designer variable.
		/// </summary>
		private System.ComponentModel.IContainer components = null;

		/// <summary>
		/// Clean up any resources being used.
		/// </summary>
		/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
		protected override void Dispose(bool disposing)
		{
			if (disposing && (components != null))
			{
				components.Dispose();
			}
			base.Dispose(disposing);
		}

		#region Windows Form Designer generated code

		/// <summary>
		/// Required method for Designer support - do not modify
		/// the contents of this method with the code editor.
		/// </summary>
		private void InitializeComponent()
		{
			this.VaultsLabel = new System.Windows.Forms.Label();
			this.VaultsComboBox = new System.Windows.Forms.ComboBox();
			this.Button1 = new System.Windows.Forms.Button();
			this.FileListBox = new System.Windows.Forms.ListBox();
			this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
			this.BrowseButton = new System.Windows.Forms.Button();
			this.NewButton = new System.Windows.Forms.Button();
			this.SuspendLayout();
			//
			//VaultsLabel
			//
			this.VaultsLabel.AutoSize = true;
			this.VaultsLabel.ImageAlign = System.Drawing.ContentAlignment.MiddleLeft;
			this.VaultsLabel.Location = new System.Drawing.Point(25, 28);
			this.VaultsLabel.Name = "VaultsLabel";
			this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
			this.VaultsLabel.TabIndex = 0;
			this.VaultsLabel.Text = "Select vault view:";
			//
			//VaultsComboBox
			//
			this.VaultsComboBox.FormattingEnabled = true;
			this.VaultsComboBox.Location = new System.Drawing.Point(28, 44);
			this.VaultsComboBox.Name = "VaultsComboBox";
			this.VaultsComboBox.Size = new System.Drawing.Size(190, 21);
			this.VaultsComboBox.TabIndex = 1;
			//
			//Button1
			//
			this.Button1.ImageAlign = System.Drawing.ContentAlignment.MiddleLeft;
			this.Button1.Location = new System.Drawing.Point(28, 84);
			this.Button1.Name = "Button1";
			this.Button1.Size = new System.Drawing.Size(190, 23);
			this.Button1.TabIndex = 2;
			this.Button1.Text = "Get Vault Serial Number Names";
			this.Button1.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
			this.Button1.UseVisualStyleBackColor = true;
            		this.Button1.Click += new System.EventHandler(this.Button1_Click);
			//
			//FileListBox
			//
			this.FileListBox.FormattingEnabled = true;
			this.FileListBox.Location = new System.Drawing.Point(28, 141);
			this.FileListBox.Name = "FileListBox";
			this.FileListBox.Size = new System.Drawing.Size(190, 17);
			this.FileListBox.TabIndex = 3;
			//
			//OpenFileDialog1
			//
			this.OpenFileDialog1.FileName = "OpenFileDialog1";
			this.OpenFileDialog1.Multiselect = true;
			this.OpenFileDialog1.Title = "Select a file";
			//
			//BrowseButton
			//
			this.BrowseButton.Location = new System.Drawing.Point(239, 135);
			this.BrowseButton.Name = "BrowseButton";
			this.BrowseButton.Size = new System.Drawing.Size(56, 23);
			this.BrowseButton.TabIndex = 4;
			this.BrowseButton.Text = "Browse...";
			this.BrowseButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
			this.BrowseButton.UseVisualStyleBackColor = true;
            		this.BrowseButton.Click += new System.EventHandler(this.BrowseButton_Click);
			//
			//NewButton
			//
			this.NewButton.Location = new System.Drawing.Point(28, 182);
			this.NewButton.Name = "NewButton";
			this.NewButton.Size = new System.Drawing.Size(190, 23);
			this.NewButton.TabIndex = 5;
			this.NewButton.Text = "Set New Serial Number";
			this.NewButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
			this.NewButton.UseVisualStyleBackColor = true;
            		this.NewButton.Click += new System.EventHandler(this.NewButton_Click);
			//
			//Form1
			//
			this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
			this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
			this.ClientSize = new System.Drawing.Size(326, 262);
			this.Controls.Add(this.NewButton);
			this.Controls.Add(this.BrowseButton);
			this.Controls.Add(this.FileListBox);
			this.Controls.Add(this.Button1);
			this.Controls.Add(this.VaultsComboBox);
			this.Controls.Add(this.VaultsLabel);
			this.Name = "Form1";
			this.Text = "Serial Numbers";
            		this.Load += new System.EventHandler(this.Form1_Load);
			this.ResumeLayout(false);
			this.PerformLayout();

	}

	#endregion

	internal System.Windows.Forms.Label VaultsLabel;
	internal System.Windows.Forms.ComboBox VaultsComboBox;
	internal System.Windows.Forms.Button Button1;
	internal System.Windows.Forms.ListBox FileListBox;
	internal System.Windows.Forms.Button BrowseButton;
	internal System.Windows.Forms.Button NewButton;
	internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;

   }

}


Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Set Part Numbers Using Default Serial Numbers Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2015 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
