Insert Hatch Example (VBA)

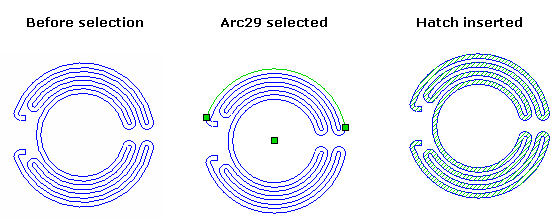

This example shows how to insert a hatch on a closed sketch in a drawing. The following image demonstrates the example.





'------------------------------------------------------------

'

' Preconditions: Drawing containing a closed sketch is open.

'

' Postconditions: Hatch is inserted.

'

'------------------------------------------------------------

Option Explicit



Dim swApp As SldWorks.SldWorks

Dim Part As SldWorks.ModelDoc2

Dim SelMgr As SldWorks.SelectionMgr

Dim boolstatus As Boolean



Sub main()



Set swApp = Application.SldWorks



Set Part = swApp.ActiveDoc

Set SelMgr = Part.SelectionManager

boolstatus = Part.Extension.SelectByID2("Arc29", "SKETCHSEGMENT", 0.08421725979537, 0.08635799134766, 0, False, 0, Nothing, 0)



Dim selSkSeg As SldWorks.SketchSegment

Dim selSk As SldWorks.Sketch

Set selSkSeg = SelMgr.GetSelectedObject6(1, -1)

Set selSk = selSkSeg.GetSketch



Part.InsertHatchedFace



Dim hatchArr As Variant

Dim vobj As Variant

Dim skHatch As SldWorks.SketchHatch



hatchArr = selSk.GetSketchHatches

For Each vobj In hatchArr

    Set skHatch = vobj

    skHatch.Scale2 = 4

Next vobj



End Sub
