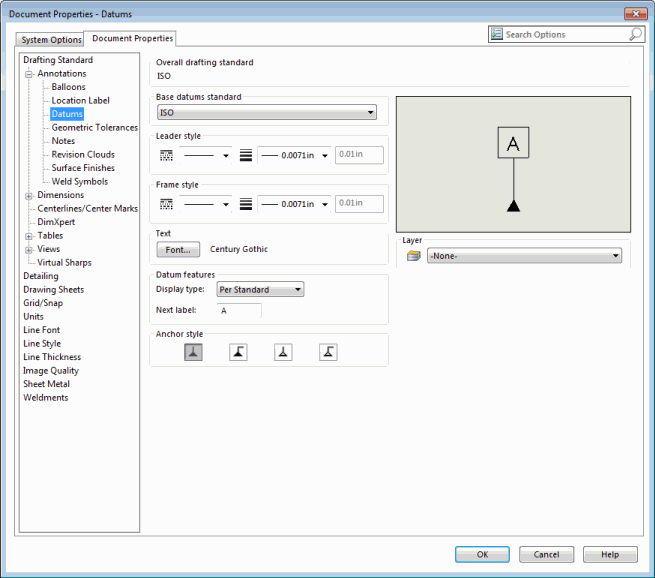

Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|
Base datums standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingDatum)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingDatum, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the base datums standard to use. For
base datums standard, "GB", use anchor styles as defined in
swDatumGbLeaderStyle_e. |
|
Leader style - Leader Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumLeaderLineStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumLeaderLineStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>) |
See swLineStyles_e
for valid options |
|
|
Leader style - Leader Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumLeaderLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumLeaderLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
|
|
Leader style - Custom thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingDatumLeaderLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingDatumLeaderLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies custom thickness of datum leader lines; sets Custom Thickness
to the specified thickness and
Leader Thickness to Custom Size |
|
Frame style - Frame Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumFrameLineStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumFrameLineStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e
.<Value>) |
See swLineStyles_e
for valid options |
|
|
Frame style - Frame
Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumFrameLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumFrameLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
|
|
Frame style - custom thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingDatumFrameLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingDatumFrameLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies custom thickness of datum frame lines; sets Custom Thickness
to the specified thickness and
Leader Thickness to Custom Size |
|
Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDatumTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDatumTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Datum features - Display type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumDisplayType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumDisplayType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDatumDisplayType_e.<Value>) |
See swDatumDisplayType_e
for valid options |
Specifies type of display of datums. When
the type of datum display is "GB", use anchor styles as defined
in swDatumGbLeaderStyle_e. |
|
Datum features - Next label |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingNextDatumFeatureLabel,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingNextDatumFeatureLabel,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
String value |
Specifies the label for the next datum symbol created |
|
Anchor style - Filled |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDatumsAnchorFilled,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDatumsAnchorFilled,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to fill triangle datum symbols |
|
Anchor style - With shoulder |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDatumsAnchorShoulder,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDatumsAnchorShoulder,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to add shoulders to triangle datum symbols |
|
Anchor style - GB |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumGbLeaderStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDatumGbLeaderStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDatumGbLeaderStyle_e.<Value>) |
See swDatumGbLeaderStyle_e
for valid options |
Specifies the anchor style for round datum symbols |
|
Display datums per 1982 |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDisplayDatumsPer1982,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDisplayDatumsPer1982,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to use 1982 standard to display datums; a document
property only visible for the ANSI drafting standard |
|
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swuserPreferenceOption_e.swDetailingDatum)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swuserPreferenceOption_e.swDetailingDatum, <Value>) |
String value |
Specifies the name of the layer to apply settings to; his setting is
available only on drawings |
