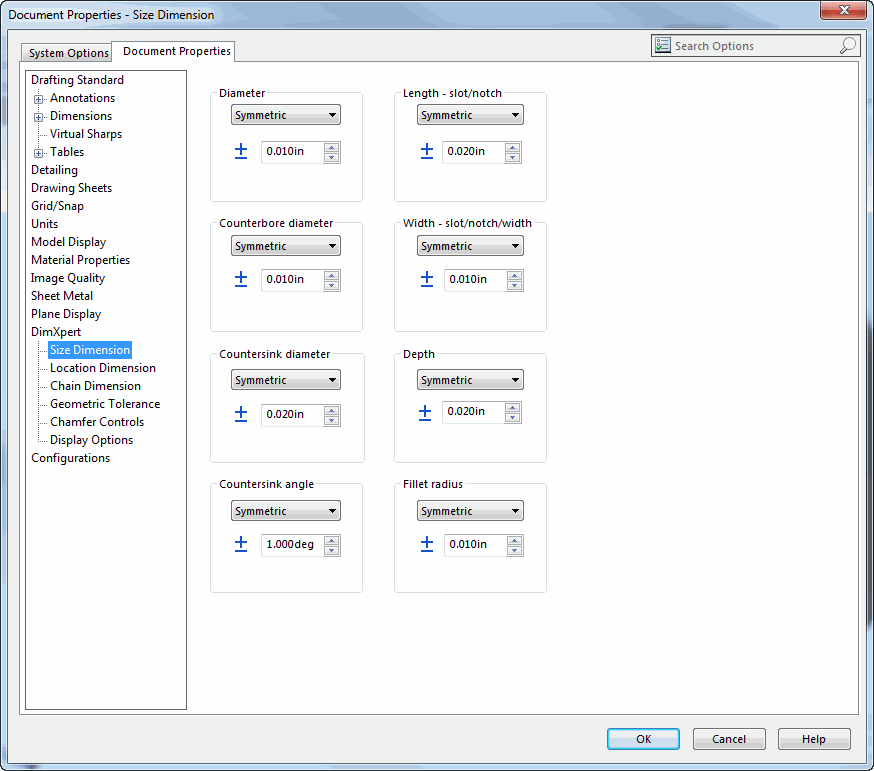

Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
Diameter - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDiameterTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDiameterTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the diameter tolerance type for
bosses, cylinders, counterbore holes, countersink holes, and simple holes |
Diameter - Bilateral or Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
of
the diameters of bosses, cylinders, counterbore holes, countersink holes, and
simple holes |
Diameter - Bilateral tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance of
the diameters of bosses, cylinders, counterbore holes, countersink holes, and
simple holes |
Diameter - Block tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDiameterBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDiameterBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)
|
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance of
the diameters of bosses, cylinders, counterbore holes, countersink holes, and
simple holes |
Counterbore diameter - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCounterboreDiameterTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCounterboreDiameterTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the diameter tolerance type for
the counterbore portion of counterbore holes |
Counterbore diameter - Bilateral or
Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
of
the counterbore portion of counterbore holes |
Counterbore diameter - Bilateral
tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance of
the counterbore portion of counterbore holes |
Counterbore diameter - Block tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCounterboreDiameterBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCounterboreDiameterBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)
|
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance of
the counterbore portion of counterbore holes |
Countersink diameter - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkDiameterTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkDiameterTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the diameter tolerance type for
countersinks |
Countersink diameter - Bilateral or
Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
of
countersink diameters |
Countersink diameter - Bilateral tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance of
countersink diameters |
Countersink diameter - Block tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkDiameterBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkDiameterBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>) |
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance of
countersink diameters |
Countersink angle - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkAngleTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkAngleTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the tolerance type for
countersink angles |
Countersink angle - Bilateral or
Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
of
countersink angles |
Countersink angle - Bilateral tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance of
countersink angles |
Countersink angle - Block tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkAngleBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkAngleBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>) |
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance of
countersink angles |
Length - slot/notch - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthSlotTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthSlotTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the tolerance type for the
lengths of slots/notches |
Length - slot/notch - Bilateral or
Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
of
the lengths of slots/notches |
Length - slot/notch - Bilateral tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance of
the lengths of slots/notches |
Length - slot/notch - Block tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeLengthSlotBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeLengthSlotBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>) |
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance of
the lengths of slots/notches |
Width - slot/notch/width - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertWidthSlotTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertWidthSlotTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the tolerance type for the
widths of slots/notches |
Width - slot/notch/width - Bilateral
or Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
of
the widths of slots/notches |
Width - slot/notch/width - Bilateral
tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance of
the widths of slots/notches |
Width - slot/notch/width - Block tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeWidthSlotBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeWidthSlotBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>) |
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance of
the widths of slots/notches |
Depth - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDepthTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDepthTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the depth tolerance type for
counterbores, counterbore holes, countersinks, notches, pockets, simple holes,
and slots |
Depth - Bilateral or Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
of
the depths of counterbores, counterbore holes, countersinks, notches, pockets,
simple holes, and slots |
Depth - Bilateral tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance of
the depths of counterbores, counterbore holes, countersinks, notches, pockets,
simple holes, and slots |
Depth - Block tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDepthBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDepthBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>) |
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance of
the depths of counterbores, counterbore holes, countersinks, notches, pockets,
simple holes, and slots |
Fillet radius - Tolerance type |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertFilletRadiusTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertFilletRadiusTolType,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>) |
See
swDimXpertTolType_e for valid options |
Sets the fillet radius tolerance
type |
Fillet radius - Bilateral or
Symmetric tolerance upper value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolUpperValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies:
- the upper and lower
symmetric tolerances
- or -
- the upper bilateral
tolerance
for
fillet radii |
Fillet radius - Bilateral tolerance lower value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolLowerValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the lower bilateral tolerance for
fillet radii |
Fillet radius - Block precision tolerance value |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeFilletRadiusBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeFilletRadiusBlockPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)
|
See
swDimXpertBlockPrecision_e for valid options |
Sets the block precision tolerance for
fillet radii |
