Setting |
Get/Set Methods |
Return Value
or
<Value>
or
<OnFlag> |
Comment |
|

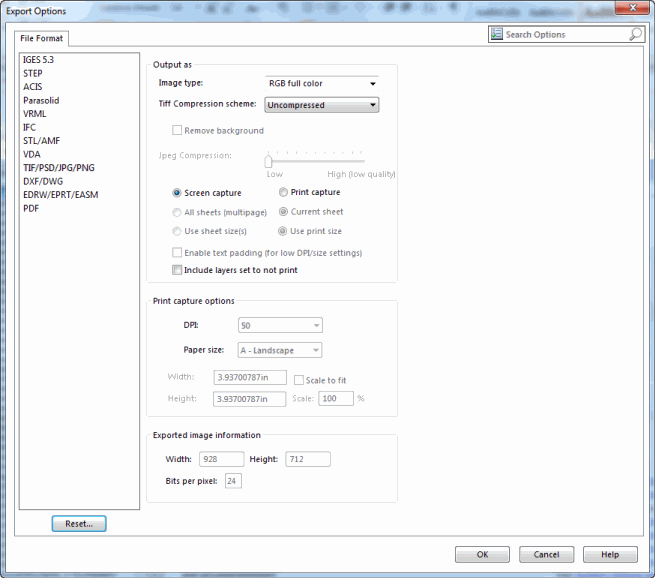

Output as - Image type |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffImageType)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffImageType,
swTiffImageType_e.<Value>)
|
See swTiffImageType_e
for valid options |
|
|
Output as - Tiff Compression scheme |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffCompressionScheme)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffCompressionScheme,
swTiffCompressionScheme_e.<Value>)
|
See swTiffCompressionScheme_e
for valid options |
|
|
Output as - Remove background |
See Comment |
See Comment |
Currently not available in the SOLIDWORKS API |
|
Output as - Jpeg Compression |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportJpegCompression)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportJpegCompression,
<Value>) |
Long value (1-100) |
1 is for lowest compression; 100 is for highest compression (low quality) |
|
Output as - Screen capture |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffScreenOrPrintCapture)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffScreenOrPrintCapture,
<Value>) |
0 |
|
|
Output as - Print capture |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffScreenOrPrintCapture)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffScreenOrPrintCapture,
<Value>) |
1 |
|
|
Output as - All sheets (multipage) |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintAllSheets)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintAllSheets,
<OnFlag>) |
True |
For Output as - Print capture
only |
|
Output as - Current sheet |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintAllSheets)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintAllSheets,
<OnFlag>) |
False |
For Output as - Print capture
only |
|
Output as - Use sheet size(s) |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintUseSheetSize)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintUseSheetSize,
<OnFlag>) |
True |
For Output as - Print capture
only |
|
Output as - Use print size |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintUseSheetSize)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintUseSheetSize,
<OnFlag>) |
False |
For Output as - Print capture
only |
|
Output as - Enable text padding (for low DPI/size settings) |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintPadText)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintPadText,
<OnFlag>) |
Boolean value |
Adjusts inter-character text spacing such that the text fills the
bounding rectangle of the string; set to True when using low DPI and small paper
sizes (A, A4, or A3) |
Output as - Include layers set not to print |
SldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTIFIncludeLayersNotToPrint)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTIFIncludeLayersNotToPrint,
<OnFlag>) |
Boolean value |
Specifies whether to include layers set not to print |
|
Print capture options - DPI |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffPrintDPI)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffPrintDPI,
<Value>) |
Integer value |
For drawings only; For Output as -
Print capture only |
|
Print capture options - Paper size |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffPrintPaperSize)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffPrintPaperSize,
swDwgPaperSizes_e.<Value>)
|
See swDwgPaperSizes_e
for valid options |
|
|
Print capture options - Width |
ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swTiffPrintDrawingPaperWidth)
ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swTiffPrintDrawingPaperWidth,
<Value>) |
Double value in meters |
For drawings only; For Output as -
Print capture only with Print
capture options - Paper size set to User
Defined |
|
Print capture options - Height |
ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swTiffPrintDrawingPaperHeight)
ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swTiffPrintDrawingPaperHeight,
<Value>) |
Double value in meters |
For drawings only; For Output as -
Print capture only with Print
capture options - Paper size set to User
Defined |
|
Print capture options - Scale to fit |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintScaleToFit)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTiffPrintScaleToFit,
<OnFlag>) |
Boolean value |
For drawings only; specifies whether to scale drawing to fit page |
|
Print capture options - Scale |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffPrintScaleFactor)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTiffPrintScaleFactor,
<Value>) |
Integer value |
Specifies the scale factor |
