> System Options > Drawings > Performance

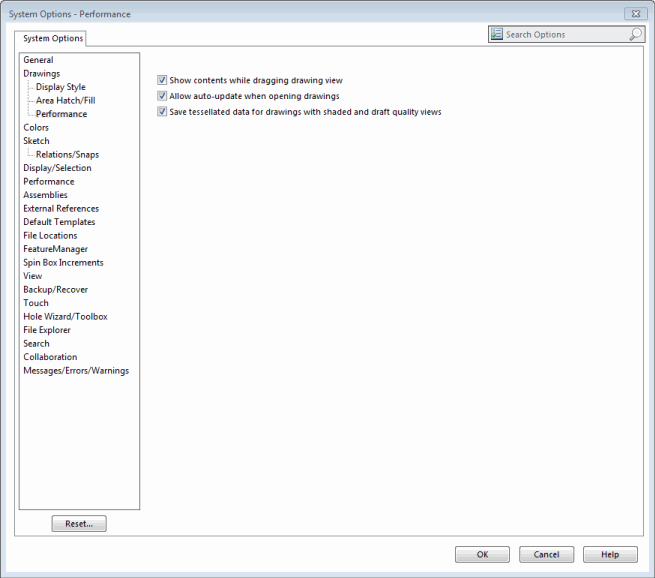

System Options > Drawings > Performance

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Show contents while dragging drawing view	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingViewShowContentsWhileDragging) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingViewShowContentsWhileDragging, <OnFlag>)	Boolean value	Specifies whether model or view boundary is displayed when view is dragged
Allow auto-update when opening drawings	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticDrawingViewUpdateDefault ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticDrawingViewUpdateDefault, <OnFlag>)	Boolean value	Specifies whether drawing views are updated when a drawing is opened
Save tessellated data for drawings with shaded and draft quality views	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSaveShadedData) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSaveShadedData, <OnFlag>)	Boolean value	Specifies whether to save tessellated data in drawing documents with shaded and draft quality views

Search 'System Options > Drawings > Performance' in the SOLIDWORKS Knowledge Base.
