Read and Write to Third-party Storage Example (VB.NET)

This example shows how to read and write to third-party storage in a document.

'----------------------------------------------------------------------------
' Preconditions:
'  1. Read the SOLIDWORKS Document Manager API Getting Started
'     topic and ensure that the required DLLs are registered.
'  2. Start Microsoft Visual Studio 2010.
'  3. Click File > New > Project > Visual Basic > Windows Forms Application.
'     a. Type SwDocMgrStorageApp_VBNET in Name.
'     b. Click Browse and navigate to the folder where to create
'        the project.
'     c. Click OK
'  4. Add references to the project:
'     a. Right-click the solution in Solution Explorer.
'     b. Click Add Reference
'     c. Click Browse.
'     d. Click:
'        install_dir\api\redist\CLR2\SolidWorks.Interop.swdocumentmgr.dll
'     e. Click Open.
'     f. Click Add.
'     g. Click Browse.
'     h. Click:
'        C:\Program Files\Microsoft Visual Studio 11.0\Common7\IDE\Remote Debugger\x64\Microsoft.VisualStudio.OLE.Interop.dll
'     i. Click Open.
'     j. Click Add.
'     k. Click Close.
'  5. Click Show All Files in the Solution Explorer toolbar and expand
'     Form1.vb in the Solution Explorer.
'  6. Replace the code in Form1.vb with this code.
'  7. Replace the code in Form1.Designer.vb with this code.
'  8. Substitute your_license_key with your SOLIDWORKS Document
'     Manager license key.
'
' Postconditions:

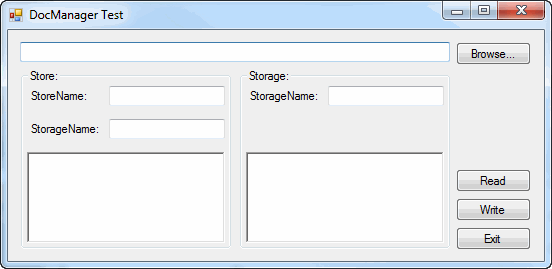

'  1. Displays a dialog.
'  2. Click Browse.
'     a. Locate and click a SOLIDWORKS document.
'     b. Click Open.
'  3. Type temp in StoreName and in both StorageName fields.
'  4. Type Some third-party text in both text boxes.
'  5. Click Write.
'  6. Click Exit.
'  7. Press F5.
'  8. In the dialog, click Browse.
'     a. Locate and click the document you clicked in step 2a.
'     b. Click Open.
'  9. Type temp in StoreName and in both StorageName fields.
' 10. Click Read.
' 11. Displays Some third-party text in both text boxes.
' 12. Click Exit.
'----------------------------------------------------------------------------

'Form1.vb



Imports System.Collections.Generic
Imports System.ComponentModel
Imports System.Data
Imports System.Drawing
Imports System.Linq
Imports System.Text
Imports System.Windows.Forms
Imports SwDocumentMgr
Imports Microsoft.VisualStudio.OLE.Interop
Imports System.IO
Imports System.Diagnostics
Imports System.Runtime.InteropServices

Public Class Form1
    Inherits Form
    Public Sub New()
        InitializeComponent()
    End Sub
    Public swDoc19 As SwDMDocument19
    Public swDocMgr As SwDMApplication
    Public swClassFact As SwDMClassFactory
    Public sLicenseKey As String = "your_license_key"

    Public Sub btnFile_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles btnFile.Click
        OpenFileDialog1.Filter = "SOLIDWORKS Files (*.sldprt;*sldasm;*slddrw)|*.sldprt;*sldasm;*slddrw|SOLIDWORKS Part (*.sldprt)|*.sldprt|SOLIDWORKS Assembly (*.sldasm)|*.sldasm|SOLIDWORKS Drawing (*.slddrw)|*.slddrw"
        If OpenFileDialog1.ShowDialog() = System.Windows.Forms.DialogResult.OK Then
            txtFileName.Text = OpenFileDialog1.FileName
        End If
    End Sub

    Public Sub btnOpen_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles btnOpen.Click
        OpenFile()
        If (swDoc19 IsNot NothingThen
            If txtStorageName.Text <> String.Empty Then
                Read3rdPartyStorageData()
            End If
            If txtStoreName.Text <> String.Empty AndAlso txtStreamName.Text <> String.Empty Then
                Read3rdPartyStorageStoreData()
            End If
        End If
        CloseFile()
        Me.Refresh()
    End Sub

    Public Sub btnSave_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles btnSave.Click
        OpenFile()
        If (swDoc19 IsNot NothingThen
            If txtStorageName.Text <> String.Empty Then
                Write3rdPartyStorageData()
            End If
            If txtStoreName.Text <> String.Empty AndAlso txtStreamName.Text <> String.Empty Then
                Write3rdPartyStorageStoreData()
            End If
        End If
        rtbStorage.Text = String.Empty
        rtbStore.Text = String.Empty
        CloseFile()
        Me.Refresh()
    End Sub

    Public Sub btnExit_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles btnExit.Click
        Me.Close()
    End Sub

    Public Sub OpenFile()
        If (swDoc19 IsNot NothingThen
            swDoc19.CloseDoc()
            swDoc19 = Nothing
        End If

        Dim sDocFileName As String = Nothing
        Dim nDocType As SwDmDocumentType = 0
        Dim nRetVal As SwDmDocumentOpenError = 0


        sDocFileName = txtFileName.Text
        If sDocFileName.ToLower().EndsWith("sldprt"Then
            nDocType = SwDmDocumentType.swDmDocumentPart
        ElseIf sDocFileName.ToLower().EndsWith("sldasm"Then
            nDocType = SwDmDocumentType.swDmDocumentAssembly
        ElseIf sDocFileName.ToLower().EndsWith("slddrw"Then
            nDocType = SwDmDocumentType.swDmDocumentDrawing
        Else

            ' Not a SOLIDWORKS file
            nDocType = SwDmDocumentType.swDmDocumentUnknown

            Return
        End If

        swClassFact = New SwDMClassFactory()
        swDocMgr = TryCast(swClassFact.GetApplication(sLicenseKey), SwDMApplication)
        swDoc19 = TryCast(swDocMgr.GetDocument(sDocFileName, nDocType, False, nRetVal), SwDMDocument19)
        Debug.Assert(SwDmDocumentOpenError.swDmDocumentOpenErrorNone = nRetVal)
    End Sub

    Public Sub CloseFile()
        If (swDoc19 IsNot NothingThen
            swDoc19.CloseDoc()
            System.Runtime.InteropServices.Marshal.ReleaseComObject(swDoc19)
            GC.Collect()
            GC.WaitForPendingFinalizers()
            GC.Collect()
            GC.WaitForPendingFinalizers()
            swDoc19 = Nothing
        End If

    End Sub

    Public Sub Read3rdPartyStorageData()
        Try
            Dim pIStream As IStream = Nothing
            pIStream = swDoc19.Get3rdPartyStorage(txtStorageName.Text, False)
            If pIStream Is Nothing Then
                rtbStorage.Text = "Error: " + "Storage " + txtStorageName.Text + " not found"
                Return
            End If
            Dim strStream As String = Nothing
            Dim byteArray As Byte() = New Byte(999) {}
            Dim outlength As UInteger = 0
            pIStream.Read(byteArray, CUInt(byteArray.Length), outlength)
            strStream = Encoding.UTF8.GetString(byteArray)
            rtbStorage.Text = strStream.Substring(0, CInt(outlength))
            swDoc19.Release3rdPartyStorage(txtStorageName.Text)
            System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
            GC.Collect()
            GC.WaitForPendingFinalizers()
            GC.Collect()
            GC.WaitForPendingFinalizers()
        Catch ex As Exception
            rtbStorage.Text = "Error: " + ex.Message
        End Try
    End Sub

    Public Sub Read3rdPartyStorageStoreData()
        Try
            Dim storage As IStorage = Nothing
            storage = swDoc19.Get3rdPartyStorageStore(txtStoreName.Text, False)
            If storage Is Nothing Then
                rtbStore.Text = "Error: " + "Store " + txtStoreName.Text + " not found"
                Return
            End If
            Dim pIStream As IStream = Nothing
            Dim grfmode As Integer = 0
            grfmode = grfmode Or CInt(STGM.SHARE_EXCLUSIVE)
            storage.OpenStream(txtStreamName.Text, IntPtr.Zero, CUInt(grfmode), 0, pIStream)
            If pIStream Is Nothing Then
                rtbStore.Text = "Error: " + "Stream " + txtStreamName.Text + " not found"
                Return
            End If
            Dim strStream As String = Nothing
            Dim byteArray As Byte() = New Byte(999) {}
            Dim outlength As UInteger = 0
            pIStream.Read(byteArray, CUInt(byteArray.Length), outlength)
            strStream = Encoding.UTF8.GetString(byteArray)
            rtbStore.Text = strStream
            System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
            GC.Collect()
            GC.WaitForPendingFinalizers()
            GC.Collect()
            GC.WaitForPendingFinalizers()
            swDoc19.Release3rdPartyStorageStore(txtStoreName.Text)
        Catch ex As Exception
            rtbStore.Text = "Error: " + ex.Message
        End Try
    End Sub

    Public Sub Write3rdPartyStorageData()
        Try
            Dim pIStream As IStream = Nothing
            pIStream = swDoc19.Get3rdPartyStorage(txtStorageName.Text, True)
            If pIStream Is Nothing Then
                rtbStorage.Text = "Error: " + "Storage " + txtStorageName.Text + " not found"
                Return
            End If
            Dim strStream As Byte() = Nothing
            strStream = Encoding.UTF8.GetBytes(rtbStorage.Text)
            Dim outlength As UInteger = 0
            pIStream.Write(strStream, CUInt(strStream.Length), outlength)
            System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
            GC.Collect()
            GC.WaitForPendingFinalizers()
            GC.Collect()
            GC.WaitForPendingFinalizers()
            swDoc19.Release3rdPartyStorage(txtStorageName.Text)
            swDoc19.Save()
        Catch ex As Exception
            rtbStorage.Text = "Error: " + ex.Message
        End Try
    End Sub

    Public Sub Write3rdPartyStorageStoreData()
        Try
            Dim storage As IStorage = Nothing
            storage = swDoc19.Get3rdPartyStorageStore(txtStoreName.Text, True)
            If storage Is Nothing Then
                rtbStore.Text = "Error: " + "Store " + txtStoreName.Text + " not found"
                Return
            End If
            Dim pIStream As IStream = Nothing
            Dim grfmode As Integer = 0
            grfmode = grfmode Or CInt(STGM.SHARE_EXCLUSIVE)
            grfmode = grfmode Or CInt(STGM.READWRITE)
            grfmode = grfmode Or CInt(STGM.CREATE)
            storage.CreateStream(txtStreamName.Text, CUInt(grfmode), 0, 0, pIStream)
            If pIStream Is Nothing Then
                rtbStore.Text = "Error: " + "Stream " + txtStreamName.Text + " not found"
                Return
            End If
            Dim strStream As Byte() = Nothing
            strStream = Encoding.UTF8.GetBytes(rtbStore.Text)
            Dim outlength As UInteger = 0
            pIStream.Write(strStream, CUInt(strStream.Length), outlength)
            System.Runtime.InteropServices.Marshal.ReleaseComObject(storage)
            System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
            GC.Collect()
            GC.WaitForPendingFinalizers()
            GC.Collect()
            GC.WaitForPendingFinalizers()
            swDoc19.Release3rdPartyStorageStore(txtStoreName.Text)
            swDoc19.Save()
        Catch ex As Exception
            rtbStore.Text = "Error: " + ex.Message
        End Try
    End Sub

    <Flags()> _
    Public Enum STGM As UInteger
        DIRECT = &H0
        TRANSACTED = &H10000
        SIMPLE = &H8000000
        READ = &H0
        WRITE = &H1
        READWRITE = &H2
        SHARE_DENY_NONE = &H40
        SHARE_DENY_READ = &H30
        SHARE_DENY_WRITE = &H20
        SHARE_EXCLUSIVE = &H10
        PRIORITY = &H40000
        DELETEONRELEASE = &H4000000
        NOSCRATCH = &H100000
        CREATE = &H1000
        CONVERT = &H20000
        FAILIFTHERE = &H0
        NOSNAPSHOT = &H200000
        DIRECT_SWMR = &H400000
    End Enum

End Class

'Form1.Designer.vb

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
        Try
            If disposing AndAlso components IsNot Nothing Then
                components.Dispose()
            End If
        Finally
            MyBase.Dispose(disposing)
        End Try
    End Sub

    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()

        Me.rtbStorage = New System.Windows.Forms.RichTextBox()
        Me.rtbStore = New System.Windows.Forms.RichTextBox()
        Me.btnExit = New System.Windows.Forms.Button()
        Me.btnSave = New System.Windows.Forms.Button()
        Me.btnOpen = New System.Windows.Forms.Button()
        Me.btnFile = New System.Windows.Forms.Button()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.txtFileName = New System.Windows.Forms.TextBox()
        Me.groupBox1 = New System.Windows.Forms.GroupBox()
        Me.txtStoreName = New System.Windows.Forms.TextBox()
        Me.label1 = New System.Windows.Forms.Label()
        Me.label3 = New System.Windows.Forms.Label()
        Me.txtStreamName = New System.Windows.Forms.TextBox()
        Me.groupBox2 = New System.Windows.Forms.GroupBox()
        Me.label5 = New System.Windows.Forms.Label()
        Me.txtStorageName = New System.Windows.Forms.TextBox()
        Me.groupBox1.SuspendLayout()
        Me.groupBox2.SuspendLayout()
        Me.SuspendLayout()

        ' rtbStorage

        Me.rtbStorage.Location = New System.Drawing.Point(6, 83)
        Me.rtbStorage.Name = "rtbStorage"
        Me.rtbStorage.Size = New System.Drawing.Size(198, 91)
        Me.rtbStorage.TabIndex = 15
        Me.rtbStorage.Text = ""

        ' rtbStore

        Me.rtbStore.Location = New System.Drawing.Point(6, 83)
        Me.rtbStore.Name = "rtbStore"
        Me.rtbStore.Size = New System.Drawing.Size(198, 91)
        Me.rtbStore.TabIndex = 14
        Me.rtbStore.Text = ""

        ' btnExit

        Me.btnExit.Location = New System.Drawing.Point(448, 197)
        Me.btnExit.Name = "btnExit"
        Me.btnExit.Size = New System.Drawing.Size(75, 23)
        Me.btnExit.TabIndex = 13
        Me.btnExit.Text = "Exit"
        Me.btnExit.UseVisualStyleBackColor = True
        'Me.btnExit.Click += New System.EventHandler(Me.btnExit_Click)

        ' btnSave

        Me.btnSave.Location = New System.Drawing.Point(448, 168)
        Me.btnSave.Name = "btnSave"
        Me.btnSave.Size = New System.Drawing.Size(75, 23)
        Me.btnSave.TabIndex = 12
        Me.btnSave.Text = "Write"
        Me.btnSave.UseVisualStyleBackColor = True
        'Me.btnSave.Click += New System.EventHandler(Me.btnSave_Click)

        ' btnOpen

        Me.btnOpen.Location = New System.Drawing.Point(448, 139)
        Me.btnOpen.Name = "btnOpen"
        Me.btnOpen.Size = New System.Drawing.Size(75, 23)
        Me.btnOpen.TabIndex = 11
        Me.btnOpen.Text = "Read"
        Me.btnOpen.UseVisualStyleBackColor = True
        'Me.btnOpen.Click += New System.EventHandler(Me.btnOpen_Click)

        ' btnFile

        Me.btnFile.Location = New System.Drawing.Point(448, 12)
        Me.btnFile.Name = "btnFile"
        Me.btnFile.Size = New System.Drawing.Size(75, 23)
        Me.btnFile.TabIndex = 10
        Me.btnFile.Text = "Browse..."
        Me.btnFile.UseVisualStyleBackColor = True
        'Me.btnFile.Click += New System.EventHandler(Me.btnFile_Click)

        ' OpenFileDialog1

        Me.OpenFileDialog1.FileName = "OpenFileDialog1"

        ' txtFileName

        Me.txtFileName.Location = New System.Drawing.Point(12, 12)
        Me.txtFileName.Name = "txtFileName"
        Me.txtFileName.Size = New System.Drawing.Size(430, 20)
        Me.txtFileName.TabIndex = 9

        ' groupBox1

        Me.groupBox1.Controls.Add(Me.label3)
        Me.groupBox1.Controls.Add(Me.txtStreamName)
        Me.groupBox1.Controls.Add(Me.label1)
        Me.groupBox1.Controls.Add(Me.txtStoreName)
        Me.groupBox1.Controls.Add(Me.rtbStore)
        Me.groupBox1.Location = New System.Drawing.Point(13, 39)
        Me.groupBox1.Name = "groupBox1"
        Me.groupBox1.Size = New System.Drawing.Size(210, 180)
        Me.groupBox1.TabIndex = 18
        Me.groupBox1.TabStop = False
        Me.groupBox1.Text = "Store:"

        ' txtStoreName

        Me.txtStoreName.Location = New System.Drawing.Point(88, 17)
        Me.txtStoreName.Name = "txtStoreName"
        Me.txtStoreName.Size = New System.Drawing.Size(116, 20)
        Me.txtStoreName.TabIndex = 15

        ' label1

        Me.label1.AutoSize = True
        Me.label1.Location = New System.Drawing.Point(7, 20)
        Me.label1.Name = "label1"
        Me.label1.Size = New System.Drawing.Size(63, 13)
        Me.label1.TabIndex = 16
        Me.label1.Text = "StoreName:"

        ' label3

        Me.label3.AutoSize = True
        Me.label3.Location = New System.Drawing.Point(7, 53)
        Me.label3.Name = "label3"
        Me.label3.Size = New System.Drawing.Size(75, 13)
        Me.label3.TabIndex = 18
        Me.label3.Text = "StorageName:"

        ' txtStreamName

        Me.txtStreamName.Location = New System.Drawing.Point(88, 50)
        Me.txtStreamName.Name = "txtStreamName"
        Me.txtStreamName.Size = New System.Drawing.Size(116, 20)
        Me.txtStreamName.TabIndex = 17

        ' groupBox2

        Me.groupBox2.Controls.Add(Me.rtbStorage)
        Me.groupBox2.Controls.Add(Me.label5)
        Me.groupBox2.Controls.Add(Me.txtStorageName)
        Me.groupBox2.Location = New System.Drawing.Point(232, 39)
        Me.groupBox2.Name = "groupBox2"
        Me.groupBox2.Size = New System.Drawing.Size(210, 180)
        Me.groupBox2.TabIndex = 19
        Me.groupBox2.TabStop = False
        Me.groupBox2.Text = "Storage:"

        ' label5

        Me.label5.AutoSize = True
        Me.label5.Location = New System.Drawing.Point(7, 20)
        Me.label5.Name = "label5"
        Me.label5.Size = New System.Drawing.Size(75, 13)
        Me.label5.TabIndex = 16
        Me.label5.Text = "StorageName:"

        ' txtStorageName

        Me.txtStorageName.Location = New System.Drawing.Point(88, 17)
        Me.txtStorageName.Name = "txtStorageName"
        Me.txtStorageName.Size = New System.Drawing.Size(116, 20)
        Me.txtStorageName.TabIndex = 15

        ' Form1

        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0F, 13.0F)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(536, 231)
        Me.Controls.Add(Me.btnExit)
        Me.Controls.Add(Me.btnSave)
        Me.Controls.Add(Me.btnOpen)
        Me.Controls.Add(Me.btnFile)
        Me.Controls.Add(Me.txtFileName)
        Me.Controls.Add(Me.groupBox1)
        Me.Controls.Add(Me.groupBox2)
        Me.MaximumSize = New System.Drawing.Size(552, 269)
        Me.MinimumSize = New System.Drawing.Size(552, 269)
        Me.Name = "Form1"
        Me.Text = "DocManager Test"
        Me.groupBox1.ResumeLayout(False)
        Me.groupBox1.PerformLayout()
        Me.groupBox2.ResumeLayout(False)
        Me.groupBox2.PerformLayout()
        Me.ResumeLayout(False)
        Me.PerformLayout()

    End Sub


    Friend WithEvents rtbStorage As System.Windows.Forms.RichTextBox
    Friend WithEvents rtbStore As System.Windows.Forms.RichTextBox
    Friend WithEvents btnExit As System.Windows.Forms.Button
    Friend WithEvents btnSave As System.Windows.Forms.Button
    Friend WithEvents btnOpen As System.Windows.Forms.Button
    Friend WithEvents btnFile As System.Windows.Forms.Button
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
    Friend WithEvents txtFileName As System.Windows.Forms.TextBox
    Private groupBox1 As System.Windows.Forms.GroupBox
    Private label3 As System.Windows.Forms.Label
    Private txtStreamName As System.Windows.Forms.TextBox
    Private label1 As System.Windows.Forms.Label
    Private txtStoreName As System.Windows.Forms.TextBox
    Private groupBox2 As System.Windows.Forms.GroupBox
    Private label5 As System.Windows.Forms.Label
    Private txtStorageName As System.Windows.Forms.TextBox

End Class







Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Read and Write to Third-party Storage Example (VB.NET)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2015 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
