Modify Note Content

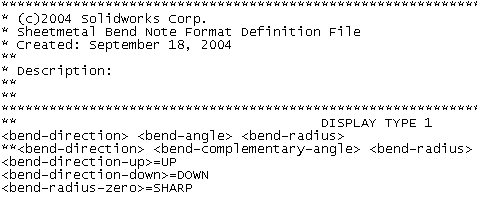

Sheet metal bend line notes is a text file located in install_dir\lang\language\bendnoteformat.txt. This file sets the format of the bend line notes.

  • Use a text editor.
  • Values outside the brackets < > are displayed in the drawing. You can modify these values.
  • Values inside the brackets < > are the parameters that maintain associative capabilities. You can modify these values only if you follow the format within the brackets.
You can also use the Drawing View PropertyManager to edit bend notes.
