Creating Translated Move Face Features

  1. Open a model.
  2. Right-click any CommandManager tab and click Direct Editing to activate this tab.
  3. Do one of the following:
    • Right-click the face and click Move Face.
    • On the Direct Editing CommandManager tab, click Move Face and select the face.



    The triad appears. A graphical pop-up toolbar appears to help you select connected faces.

  4. In the PropertyManager, under Move Face, select Translate.
  5. Click the pop-up toolbar image shown to select all co-planar faces.



    If the pop-up toolbar does not appear, clear the selected face and reselect it.

  6.
    • Select an Edge Condition in the PropertyManager and set the parameters.

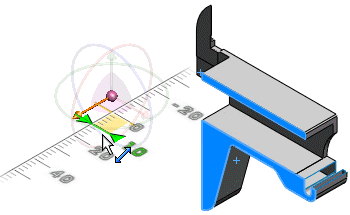

    • Drag the triad arm shown away from the face.

      A ruler appears to help you drag a discrete distance. The selected faces are translated by that distance.
  7. Click .
