Workflow for Performing 2D Simplification

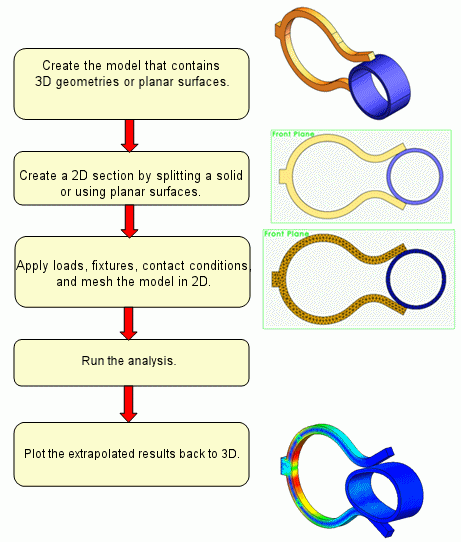

You select from the available plane stress, plane strain, extruded, or axisymmetric options. After selecting a 2D simplification assumption, the workflow for solving the problem is similar for all options.
