Using RapidSketch

RapidSketch allows you to select planar faces or planes, and with any sketch tool active, start to sketch. As you move to each planar face, a plane is created and a sketch is opened. You can change sketch tools midstream.

To use RapidSketch:

  1. With a model open, select the Sketch tab and click RapidSketch Tool_RapidSketch_Sketch.gif or RapidSketch Tool_RapidSketch_Sketch.gif (Sketch toolbar).
  2. Select a sketch tool.

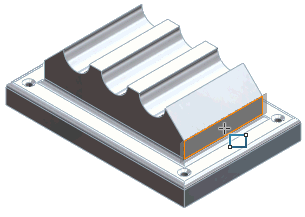

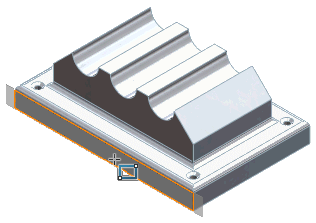

  3. Place the pointer on a planar face or plane and start to sketch.
