Display Note Behind Sheet

Annotation notes on the sheet format can be set to always display under the drawing sheet objects, allowing you to place annotations on the sheet format that can act as watermarks.

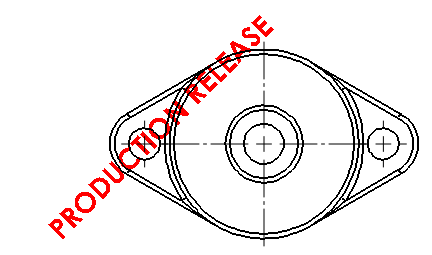

Selected

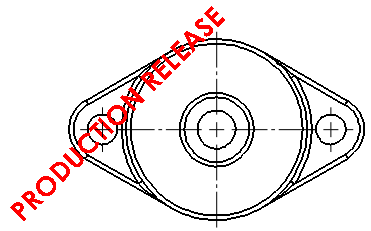

Cleared

This option displays the annotation note on the sheet format behind drawing objects.

Sending Annotation Note to Back

To display an annotation note behind the drawing sheet:

On the drawing sheet format, right-click an existing note and click Display Note Behind Sheet.
