Model Break Views Within Drawings

Use the Model Break View tool to create configuration-based 3D break views (also known as interrupted views) of a model for individual drawing views.

You can create break views in a model of isometric orientation with traditional break shapes, including accurate depiction of pipe breaks. This allows angled parts and isometric drawing views to break correctly.

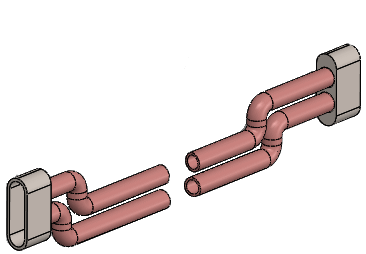

Break in assembly

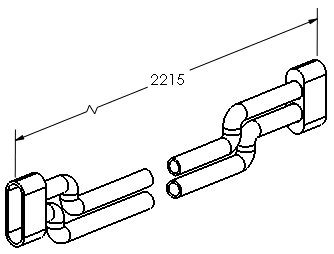

Break in drawing

To show a model break view within a drawing:

  1. Select the drawing view of a model that contains a model break view.
  2. Do one of the following:
    • In the Drawing View PropertyManager, under Reference Configuration, select Show in exploded or model break state.
    • Right-click the drawing view and click Properties. In the dialog box, in Configuration information, select Show in exploded or model break state, and click OK.
