Silhouette Edge Selection

Using DimXpert, you can select silhouette edges to create dimensions.

Previously, you had to select a face to create size or location dimensions. Now, you can select silhouette edges. In the following examples, each pointer shows a selected silhouette edge and dimension.

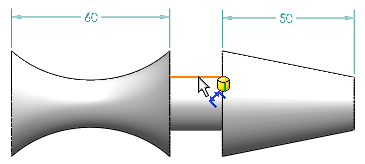

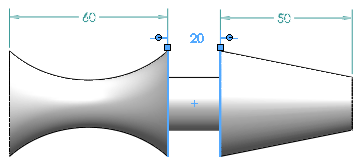

Silhouette edge selected Dimension placed
Silhouette edge selected Dimension placed
Silhouette edge selected
Dimension placed
