EdmUserDataEx Structure
Contains information about a user.

Syntax

Visual Basic (Declaration)
Public Structure EdmUserDataEx
   Inherits System.ValueType
C#
public struct EdmUserDataEx : System.ValueType
C++/CLI
public value class EdmUserDataEx : public System.ValueType

Example

struct EdmUserDataEx

{
  integer mlUserID;
  integer mlEdmUserDataExFlags;
  string mbsInitials;
  string mbsCompleteName;
  string mbsUserData;
  string mbsEmail;
  string mbsPhone;
  string mbsCellPhone;
  string mbsPicturePath;
  string mbsWebSite1;
  string mbsWebSite2;
  string mbsWebSite3;
  string mbsWebSite4;
  string mbsPresenceNote;
};

Example

Remarks

Used to read/write user properties via IEdmUser10::GetUserDataEx and IEdmUser10::SetUserDataEx.

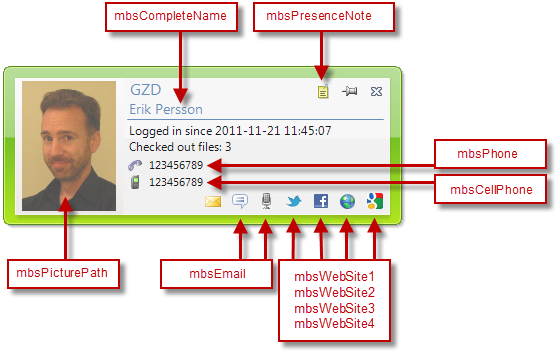

The following image shows where the EdmUserDataEx struct fields are used in the user popup window when IEdmUserMgr8::ShowUserPopup is called after updating the properties with IEdmUser10::GetUserDataEx.

See Also

Availability

SOLIDWORKS PDM Professional 2013
