> Document Properties > DimXpert

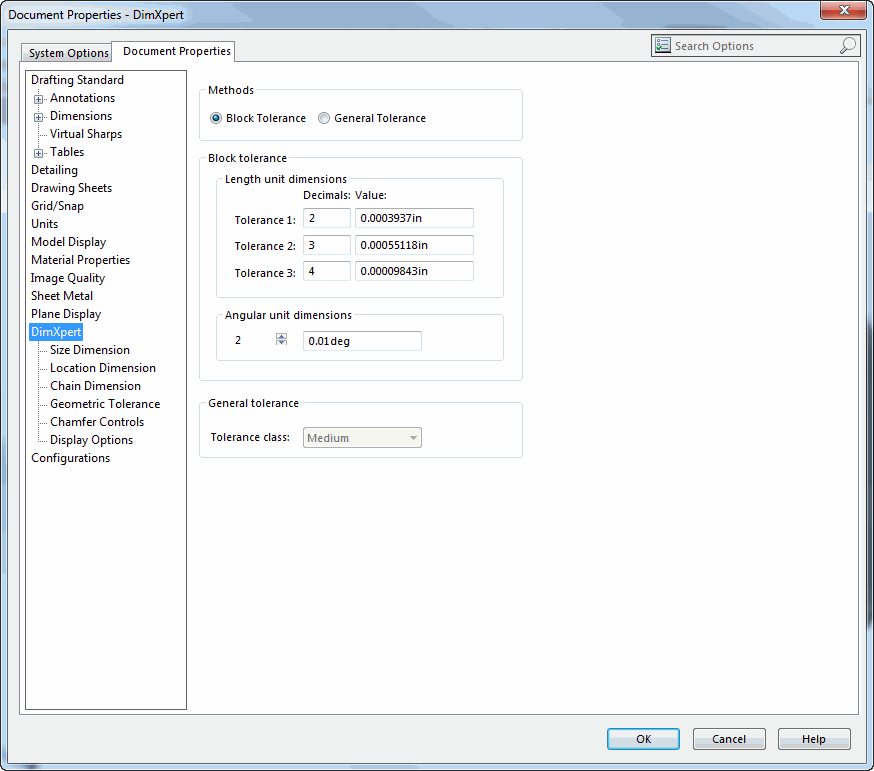

Document Properties > DimXpert

Setting	Get/Set Methods	Return Value or <Value>	Comments
Methods - Block Tolerance or General Tolerance	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertBlockTolerance swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertBlockTolerance, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether to use Block Tolerances or General Tolerances on dimensions that do not contain tolerances; true for Block Tolerances
Block Tolerance - Length unit dimensions - Tolerance 1 - Decimals	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol1Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol1Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Integer value	Specifies number of decimal places for first tolerance
Block Tolerance - Length unit dimensions - Tolerance 1 - Value	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol1Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol1Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value in mm	Specifies symmetric plus or minus tolerance for first tolerance
Block Tolerance - Length unit dimensions - Tolerance 2 - Decimals	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol2Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol2Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Integer value	Specifies number of decimal places for second tolerance
Block Tolerance - Length unit dimensions - Tolerance 2 - Value	ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol2Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol2Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value in mm	Specifies symmetric plus or minus tolerance for second tolerance
Block Tolerance - Length unit dimensions - Tolerance 3 - Decimals	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol3Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol3Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Integer value	Specifies number of decimal places for third tolerance
Block Tolerance - Length unit dimensions - Tolerance 3 - Value	ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol3Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol3Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value in mm	Specifies symmetric plus or minus tolerance for third tolerance
Angular unit dimensions - Tolerance	ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertAngularUnitTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertAngularUnitTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value in degrees	Specifies the tolerance value to use for all angular dimensions
General tolerance - Tolerance class	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertGeneralToleranceClass, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertGeneralToleranceClass, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertGeneralTolClass_e.<Value>)	See swDimXpertGeneralTolClass_e for valid options	Specifies the part tolerance class
