Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

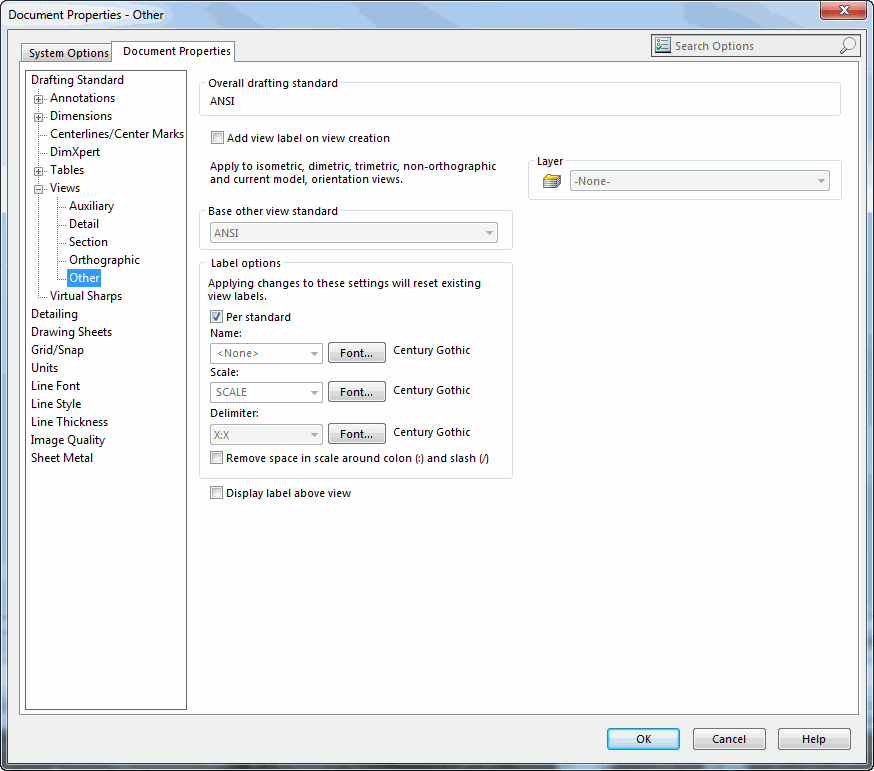

Add view label on view creation |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_AddViewLabelOnViewCreation,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_AddViewLabelOnViewCreation,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
Boolean value |
Specifies whether to add a view label when the view is created |
|
Base other view standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingMiscView, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the base miscellaneous view standard to use |
|
Label options - Per standard |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_PerStandard,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_PerStandard,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
Boolean value |
|
If... |
Then display the miscellaneous view label according
to the format... |
|
True |
Required by the current detailing standard |
|
False |
Determined by these document-level user preferences:
swDetailingMiscView_Name
swDetailingMiscView_Scale
swDetailingMiscView_Delimiter |
|
|
Label options - Name |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Name,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Name,
swUserPreferenceOption_e.swDetailingMiscView, swDetailingViewLabelsName_e.<Value>) |
See swDetailingViewLabelsName_e
for valid options |
Specifies the label to use in front of the miscellaneous view; if set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom, then set Label
options - Name (CUSTOM) to a custom label |
|
Label options - Name (CUSTOM) |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomName,
swUserPreferenceOption_e.swDetailingSectionView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomName,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
String value |
Specifies the custom label to use in front of the miscellaneous view; valid only if
Label options - Name is set to
swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom |
|
Label options - Name - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_NameTextFormat,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_NameTextFormat,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the set method |
|
Label options - Scale |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Scale,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Scale,
swUserPreferenceOption_e.swDetailingMiscView, swDetailingViewLabelsScale_e.<Value>) |
See
swDetailingViewLabelsScale_e
for valid options |
Specifies the label to use in front of the scale value; if set to
swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom, then set
Label options - Scale (CUSTOM) to a custom scale label |
|
Label options - Scale (CUSTOM) |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomScale,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomScale,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
String value |
Specifies the custom label to use in front of the scale value; valid only if
Label options - Scale is set to
swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom |
|
Label options - Scale - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_ScaleTextFormat,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_ScaleTextFormat,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the set method |
|
Label options - Delimiter |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Delimiter,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Delimiter,
swUserPreferenceOption_e.swDetailingMiscView, swDetailingViewLabelsDelimiter_e
.<Value>) |
See swDetailingViewLabelsDelimiter_e
for valid options |
Specifies the format of the scale value |
|
Label options - Delimiter -
Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_DelimiterTextFormat,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_DelimiterTextFormat,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the set method |
|
Label options - Remove space in scale around colon (:) and slash (/) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_RemoveSpaceInScale,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_RemoveSpaceInScale,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
Boolean value |
Specifies whether to remove extra spaces around the delimiter in the scale text |
|
Display label above view |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_DisplayLabelAboveView,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_DisplayLabelAboveView,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
Boolean value |
Specifies whether to show the label above the miscellaneous view |
|
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingMiscView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingMiscView, <Value>) |
Valid Options:
"Border" "Dimensions" "Notes" "BOM" "FORMAT" |
This setting is available only on drawings; depending on the drawing, some
options may not apply |
