File > Open > Files of type > type of file > Options

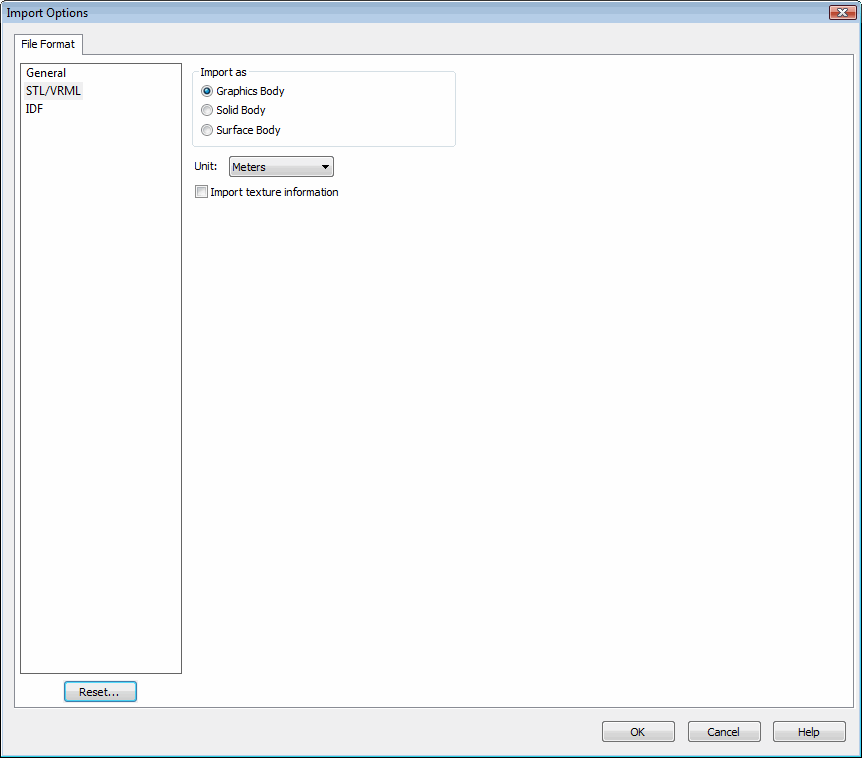

The Import Options - File Format - STL/VRML dialog is displayed when you click the Options button after selecting one of the following types of files in Files of type in the Open dialog:

  • STL

  • VRML



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Import as - Graphics body

ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swImportStlVrmlModelType_e.swImportStlVrmlModelType_Graphics)

swImportStlVrmlModelType_e.swImportStlVrmlModelType_Graphics



Import as - Solid body

ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swImportStlVrmlModelType_e.swImportStlVrmlModelType_Solid)

swImportStlVrmlModelType_e.swImportStlVrmlModelType_Solid



Import as - Surface body

ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swImportStlVrmlModelType_e.swImportStlVrmlModelType_Surface)

swImportStlVrmlModelType_e.swImportStlVrmlModelType_Surface



Unit

ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swLengthUnit_e.<Value>)

Valid options from swLengthUnit_e:

  • 0 = swMM (millimeters)

  • 1 = swCM (centimeters)

  • 2 = swMETER

  • 3 = swINCHES

  • 4 = swFEET



Import texture information

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportStlVrmlTextureInformation)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportStlVrmlTextureInformation, <OnFlag>)

Boolean value
