You can specify document-level drafting settings for punch tables. Available for drawings only.
To open this page:
With a drawing open, click
Options
(Standard toolbar), select the Document Properties tab, and then select .
Overall drafting standard
| Overall drafting standard
|
Inherited from the selected Drafting Standard page settings. |
Border
 Box Border
|
Sets a line thickness for the outside border of the table. |
 Grid Border
|
Sets a line thickness for the inner grid lines of the table. |
Location precision
 Unit Precision |
Select the number of digits after the decimal point for the punch feature location value. |
 |
Alpha/Numerical Control
Select letters or numbers for punch table tag sequencing.
| A, B, C |
Defines the punch feature tag sequence as a letter. |
 |
| 1, 2, 3 |
Defines the punch feature tag sequence as a number. |
 |
Layer
| Layer
|
Select a layer. You must first create layers for the drawing before you can select them for document properties.
|
You must select Per Standard for Layer (Layer toolbar) in the drawing view document to apply these layer settings.
Origin indicator
 Origin indicator |
Governs the origin display. Select a standard or select Per Standard to use the overall drafting standard.
|
ANSI, BSI:
 ISO, GB:
 DIN, JIS, GOST:
 |
Tag angle/offset from profile center
 Angle |
Sets the angle the tag makes with a vertical line through the center of the punch feature
|
 Offset |
Sets the distance from the tag to the punch feature profile
|
Dual dimensions
| Dual dimensions display
|
Select to display dimensions in dual units. |
| Show units for dual display |
Select to display units for the second set of dimensions. |
| Dimension value position |
Top
Bottom
Right
Left
|
Options
|
Leading zeros
|
| Standard |
Leading zeros appear according to the overall drafting standard. |
| Show |
Zeros before decimal points are shown. |
| Remove |
Leading zeros do not appear.
|
|
| Trailing Zeros |
| Smart |
Trailing zeros are trimmed for whole metric values, conforming to ANSI and ISO standards. |
| Show |
Trailing zeros are displayed according to the decimal places you specify for Units. |
| Remove |
Trailing zeros do not appear.
|
|
| Combine same tags |
Combines items with the same Punch IDs in one row.
|

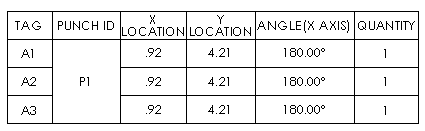

| Combine same size |
Merges cells for punch features with same Punch ID. The columns of location values remain.
|
