Document Properties - Borders

You can set drawing document properties for sheet borders and zone formatting.

With a drawing open, click Tools > Options > Document Properties > Borders.

Overall drafting standard

Overall drafting standard Uses settings from the Drafting Standard page.

Margins

Line Style Sets the style.
Line Thickness Sets the thickness or select Custom size and enter a thickness.
Double-Line Border Displays the border using two lines.

Zone Formatting

Show Zone Dividers Displays zone dividers.
Line Style Sets the style.
Line Thickness Sets the thickness or select Custom size and enter a thickness.
Zone Divider
Sets the length for the zone divider.
Center Zone Divider

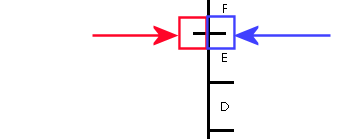

Sets the length for the outer center zone divider. In this example, the outer center zone divider is shown in the blue box.
Sets the length for the inner center zone divider. In this example, the inner center zone divider is shown in the red box.
Zone Labels
Show columns Displays column labels.
Show rows Displays row labels.

Layer

Layer
Sets the layer.
You must first create layers for the drawing before you can select them for document properties.
