Access Custom File References Example (C#)

This example shows how to access custom file references.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2015.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type AccessCustRef_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create the project.
//    d. Click OK.
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with
//       this code.
// 2. Add references to:
//    a. Microsoft.VisualBasic (right-click the project
//       name in the Solution Explorer, click Add > Reference >
//       Assemblies > Framework > select Microsoft.VisualBasic).
//    b. EPDM.Interop.epdm.dll (click Browse and browse to the top folder
//       of your SOLIDWORKS PDM Professional installation, click
//       EPDM.Interop.epdm.dll > Add).
//    c. EPDM.interop.EPDMResultCode.dll (click Browse >
//       EPDM.interop.EPDMResultCode.dll > Add > OK).
// 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 4. Click Debug > Start Debugging or press F5.
//
// Postconditions:

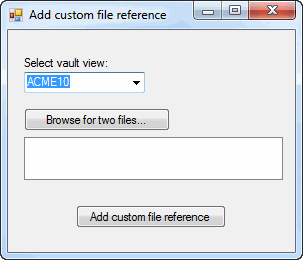

// 1. Displays the Add custom file reference dialog box.
//    a. Select a vault view.
//    b. Click Browse for two files.
//       1. Locate and click two files in the root folder of the vault.
//       2. Click Open.
//       3. Checks out the first file.
//    c. Click Add custom file reference.
//    d. Click OK to close each message box.
// 2. Close the Add custom file reference dialog.
//----------------------------------------------------------------------------

//Form1.cs


using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace AccessCustRefs_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private IEdmVault5 vault1 = null;
        IEdmEnumeratorCustomReference7 addCustRefs;
        IEdmFile5 file1 = null;
        IEdmFile5 file2 = null;

        IEdmFolder5 parentFolder = null;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void BrowseButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                CustRefListBox.Items.Clear();

                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Open dialog
                CustRefOpenFileDialog.InitialDirectory = vault1.RootFolderPath;
                //Show the Open dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = CustRefOpenFileDialog.ShowDialog();
                //If the user didn't click Open, exit
                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    return;
                }

                foreach (string FileName in CustRefOpenFileDialog.FileNames)
                {
                    CustRefListBox.Items.Add(FileName);
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


        public void AddCustomFileReference_Click(System.Object sender, System.EventArgs e)
        {
            try
            {

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Get the two selected files
                file1 = vault2.GetFileFromPath(CustRefListBox.Items[0].ToString(), out parentFolder);
                file2 = vault2.GetFileFromPath(CustRefListBox.Items[1].ToString(), out parentFolder);

                //Check out the first file
                if (!file1.IsLocked)
                {
                    file1.LockFile(parentFolder.ID, this.Handle.ToInt32(), Convert.ToInt32(EdmLockFlag.EdmLock_Simple));
                }

                //Add the second file as a custom reference to the first file
                addCustRefs = (IEdmEnumeratorCustomReference7)file1;
                addCustRefs.AddReference3(file2.ID, parentFolder.ID, 1, true);
                MessageBox.Show(file2.Name + " added as reference to " + file1.Name);
                bool shownInBOM;
                shownInBOM = addCustRefs.GetShowInBOM(file2.ID, parentFolder.ID);
                MessageBox.Show(file2.Name + " shown in BOM? " + shownInBOM);

                //Check in the first file
                file1.UnlockFile(this.Handle.ToInt32(), "Custom reference added");

                //Display all of the custom references of the first file
                ShowFileRefs();

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void ShowFileRefs()
        {
            try
            {
                IEdmEnumeratorCustomReference6 enumRef = default(IEdmEnumeratorCustomReference6);
                enumRef = (IEdmEnumeratorCustomReference6)file1;
                IEdmPos5 pos = default(IEdmPos5);
                pos = enumRef.GetFirstRefPosition();
                int fileID = 0;
                int folderID = 0;
                string message = null;
                int quant = 1;
                string pbsRetPath = "";
                message = "Custom references of " + file1.Name + ":" + Constants.vbLf;
                while (!pos.IsNull)
                {
                    enumRef.GetNextRef2(pos, out fileID, out folderID, out pbsRetPath, out quant);
                    message = message + pbsRetPath + " (fileID=" + Conversion.Str(fileID) + ", folderID=" + Conversion.Str(folderID) + ", quantity=" + Conversion.Str(quant) + ")" + Constants.vbLf;
                }
                Interaction.MsgBox(message);
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
    }
}
