Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

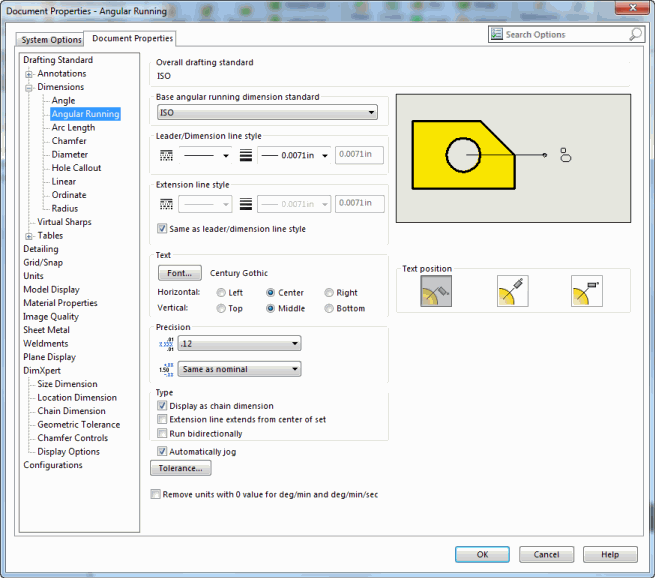

Base angular running dimension standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the base angular running dimensioning standard to use |
|
Leader/Dimension Line Style - Leader Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsStyle,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsStyle,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineStyles_e.<Value>) |
See swLineStyles_e
for valid options |
Specifies style of leader lines for
angular running dimensions |
|
Leader/Dimension Line Style - Leader Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsThickness,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsThickness,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
Specifies thickness of leader lines for
angular running dimensions |
|
Leader/Dimension Line Style - Custom Thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDimensionsThicknessCustom,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDimensionsThicknessCustom,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Double value |
Specifies a custom thickness for
leader lines in angular running dimensions; sets Custom Thickness
to the specified thickness and
Leader Thickness to Custom Size |
|
Extension Line Style - Extension Line Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyle,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyle,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineStyles_e.<Value>) |
See swLineStyles_e
for valid options |
Specifies style of
extension lines for
angular running dimensions |
|
Extension Line Style - Extension Line Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyleThickness,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyleThickness,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
Specifies thickness of
extension lines for
angular running dimensions |
|
Extension Line Style - Custom Thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDimensionsExtensionLineStyleThicknessCustom,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDimensionsExtensionLineStyleThicknessCustom,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Double value |
Specifies a custom thickness for
extension lines in angular running dimensions; sets Custom Thickness
to the specified thickness and
Extension Line Thickness to Custom Size |
|
Extension Line Style - Same as leader/dimension line style |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDimensionsExtensionLineStyleSameAsLeader,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDimensionsExtensionLineStyleSameAsLeader,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Boolean value |
Specifies whether the extension line style is the same as the
leader/dimension line style |
|
Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDimensionTextFormat,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDimensionTextFormat,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Text - Horizontal |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentHorizontal,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentHorizontal,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swTextJustification_e.<Value>) |
See swTextJustification_e
for valid options |
|
|
Text - Vertical |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentVertical,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentVertical,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swTextAlignmentVertical_e.<Value>) |
See swTextAlignmentVertical_e
for valid options |
|
|
Precision - Unit Precision |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearDimPrecision,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearDimPrecision,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Number of decimal places to display; 0 through 8 |
Specifies primary precision for linear dimension |
|
Precision - Tolerance Precision |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearTolPrecision,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearTolPrecision,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, swDimensionPrecisionSettings_e
.<Value>) |
See swDimensionPrecisionSettings_e
for valid options |
Specifies primary precision for tolerance |
|
Type - Display as chain dimension |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningDisplayAsChain,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningDisplayAsChain,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Boolean value |
Specifies whether to display angular running dimensions as chain dimensions |
|
Type - Extension line extends from center of set |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningExtensionLineExtend, swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningExtensionLineExtend,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Boolean value |
Specifies whether to extend the angular running dimension extension line from center of set |
|
Type - Run bidirectionally |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningRunBidirectionally, swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningRunBidirectionally,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Boolean value |
Specifies whether to display bidirectional angular running dimensions |
|
Automatically jog |
ModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDimsAutoJogAngularRunning,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDimsAutoJogAngularRunning,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Boolean value |
Specifies whether to automatically
jog angular running dimensions |
|
Tolerance... |
See Comments |
See Comments |
See Dimension Tolerance |
|
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Valid Options:
"Border" "Dimensions" "Notes" "BOM" "FORMAT" |
This setting is available only on drawings; depending on drawing, some
options may not apply |
|
Text position |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAndLeaderStyle,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAndLeaderStyle,
swUserPreferenceOption_e.swDetailingAngularRunningDimension,
swDisplayDimensionLeaderText_e.<Value>)
|
See
swDisplayDimensionLeaderText_e for valid options |
Specifies how to display angular
running dimension text |
Remove units with 0 value for deg/min and deg/min/sec |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAndDimensionsRemoveInsignificantZeros,
swUserPreferenceOption_e.swDetailingAngularRunningDimension)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAndDimensionsRemoveInsignificantZeros,
swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>) |
Boolean value |
Specifies whether to hide angular running dimension units when equal to 0 deg/min or 0
deg/min/sec |
