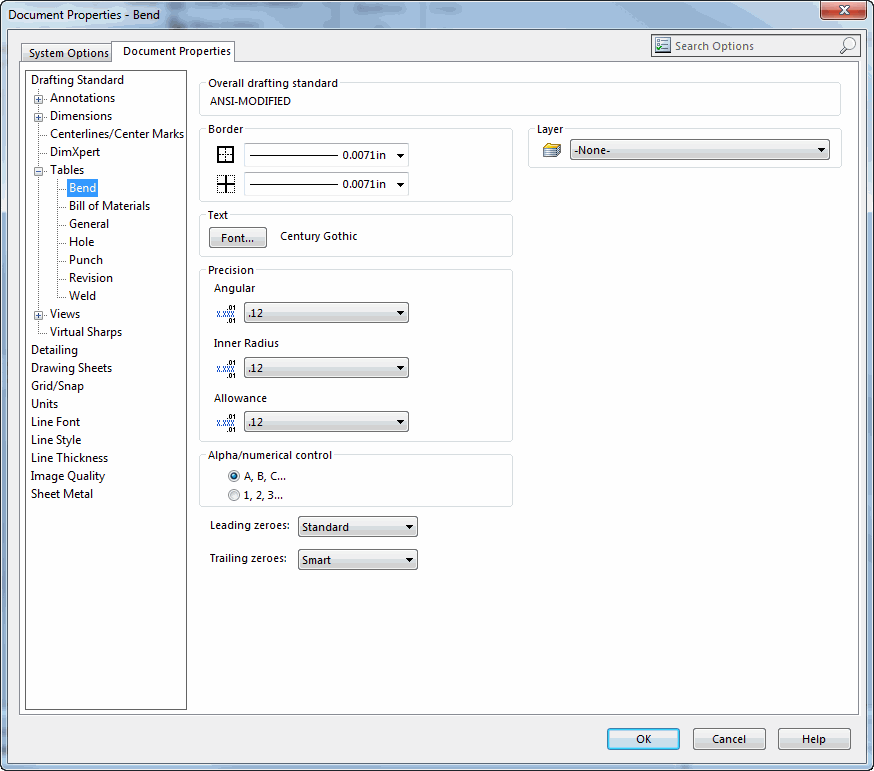

> Document Properties > Tables > Bend

Document Properties > Tables > Bend

NOTE: Setting any of the following bend table values means that new bend tables added to the drawing use these default values. However, a bend table that uses a template table for insertion might not use these default values because the template table contains certain properties that take precedence over these default values.

Setting	Get/Set Methods	Return Value or <Value>	Comments
Border - Box Border	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBendTableBorderLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBendTableBorderLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)	See swLineWeights_e for valid options
Border - Grid Border	ModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBendTableGridLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBendTableGridLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)	See swLineWeights_e for valid options
Text - Font...	IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingBendTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingBendTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	See ITextFormat for font options	To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method
Precision - Angular	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendAngularPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendAngularPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Integer value	Specifies the number of digits of precision to display in the bend table for bend angles; specify a value from 0 through 8
Precision - Inner Radius	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendInnerRadiusPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendInnerRadiusPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Integer value	Specifies the number of digits of precision to display in the bend table for the inner radii of bends; specify a value from 0 through 8
Precision - Allowance	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendAllowancePrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendAllowancePrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Integer value	Specifies the number of digits of precision to display in the bend table for the bend allowance of bends; specify a value from 0 through 8
Alpha/numerical control	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendTableTagStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendTableTagStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBendTableTagStyle_e.<Value>)	See swBendTableTagStyle_e for valid options	Specifies whether the bend tags are alphanumeric or numeric
Leading zeroes	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendLeadingZero, swUserPreferenceOption_e.swDetailingBendTable) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendLeadingZero, swUserPreferenceOption_e.swDetailingBendTable, swDetailingLeadingZero_e.<Value>)	See swDetailingLeadingZero_e for valid options
Trailing zeroes	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendTableZeroQuantityDisplay, swUserPreferenceOption_e.swDetailingBendTable) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBendTableZeroQuantityDisplay, swUserPreferenceOption_e.swDetailingBendTable, swDetailingDimTrailingZero_e.<Value>)	See swDetailingDimTrailingZero_e for valid options
Layer	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingBendTable) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingBendTable, <Value>)	Valid options: "Border" "Dimensions" "Notes" "BOM" "FORMAT" "None"	This setting is available only on drawings; depending on drawing, some options may not apply
