System Options > Import > General

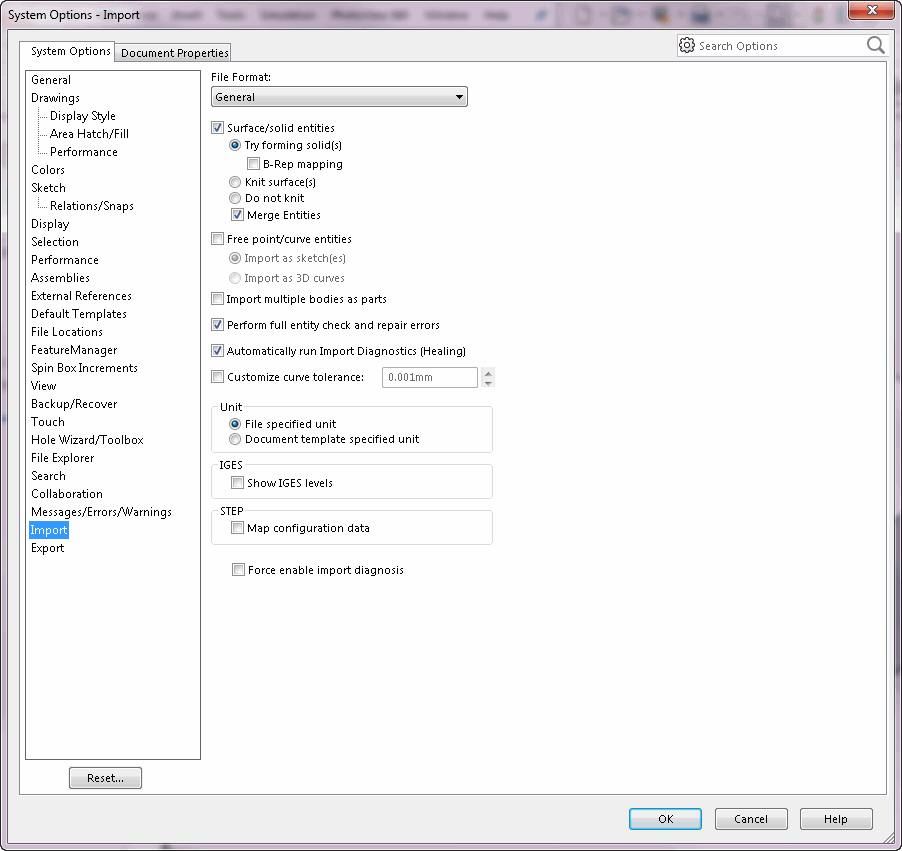

This topic contains two tables. The information in the table:

appearing immediately after the dialog corresponds to the settings on that dialog.
titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Import > General in File Format.

- or -

Click File > Open.
In Files of type, select:

Parasolid

IGES

STEP AP203/214

IFC 2x3

ACIS

VDAFS

Unigraphics/NX

Inventor Part

Inventor Assembly

Click Options.

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Surface/solid entities	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportSolidSurface) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportSolidSurface, <OnFlag>)	Boolean value	Specifies whether to import surface and solid entities; you must also set ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption, swGeneralImportSurfaceSolidEntityOptions_e.<Value>)
Try forming solid(s)	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption, swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportTryFormingSolids)	swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportTryFormingSolids	See swGeneralImportSurfaceSolidEntityOptions_e for all valid options
B-rep mapping	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportUseBrep) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption, swGeneralImportSurfaceSolidEntityOptions_e.swImportUseBrep) and ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption, swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportByBrep)	0 = Import the model by directly mapping topologies using BREP data 1 = Do not import the model by directly mapping topologies using BREP data NOTE: You must set ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption, swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportByBrep) for swGeneralImportSurfaceSolidEntityOptions_e.swImportUseBrep to have an affect. and swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportByBrep	See swGeneralImportSurfaceSolidEntityOptions_e for all valid options
Knit surface(s)	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption, swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportKnitSurfaces)	swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportKnitSurfaces	See swGeneralImportSurfaceSolidEntityOptions_e for all valid options
Do not knit	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swCreateBodyFromSurfacesOption, swGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportDoNotKnit)	wGeneralImportSurfaceSolidEntityOptions_e.swGeneralImportDoNotKnit	See swGeneralImportSurfaceSolidEntityOptions_e for all valid options
Merge Entities	See Comment	See Comment	Not currently available in SOLIDWORKS API
Free Point/curve entities	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportFreeCurves) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportFreeCurves, <OnFlag>)	Boolean value	Specifies whether to import free points and free curve entities; must also specify an ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportCurvePreference, swGeneralImportFreePointCurveEntityOptions_e.<Value>)
Import as sketch(es)	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportCurvePreference) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportCurvePreference, swGeneralImportFreePointCurveEntityOptions_e.swGeneralImportAsSketches)	swGeneralImportFreePointCurveEntityOptions_e.swGeneralImportAsSketches	See swGeneralImportFreePointCurveEntityOptions_e for all valid options
Import as 3D curves	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportCurvePreference) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportCurvePreference, swGeneralImportFreePointCurveEntityOptions_e.swGeneralImportAs3dCurves)	swGeneralImportFreePointCurveEntityOptions_e.swGeneralImportAs3dCurves	See swGeneralImportFreePointCurveEntityOptions_e for all valid options
Import multiple bodies as parts	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportMultBodyAsPartData) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportMultBodyAsPartData, <OnFlag>)	Boolean value	Specifies whether to import multibody part as an assembly document; for STEP and ACIS files only
Perform full entity check and repair errors	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportCheckAndRepair) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportCheckAndRepair, <Value>)	0 = Do not check and repair 1 = Check and repair
Automatically run Import Diagnostics (Healing)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportAutoRunImportDiagnostics) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportAutoRunImportDiagnostics, <OnFlag>) and ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportAutoRunImportDiagnosticsPersist) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportAutoRunImportDiagnosticsPersist, <OnFlag>)	Boolean value and Boolean value	Specifies whether import diagnostics (healing) are run automatically. If TRUE, they are; if FALSE, they are not and Specifies whether users are presented with a dialog asking them if the import diagnostics (healing) should run; if True, then users are not asked and automatic healing is done depending on the value of swUserPreferenceToggle_e.swImportAutoRunImportDiagnostics; if False, then users are asked
Customize curve tolerance	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swUseCustomizedImportTolerance) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swUseCustomizedImportTolerance, <Value>)	0 = Do not use customized import tolerance 1 = Use customized import tolerance	Specifies whether customized curve tolerance for imported documents is enabled
Customize curve tolerance <n>	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swCustomizedImportTolerance) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swCustomizedImportTolerance, <Value>)	Double value in meters	Specifies customized curve tolerance for imported documents; swUserPreferenceIntegerValue_e.swUseCustomizedImportTolerance must be set to 1 to enable this setting
Unit - File specified unit	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportUnitPreference) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportUnitPreference, swGeneralImportUnitsOptions_e.swGeneralImportFileSpecifiedUnit)	swGeneralImportUnitsOptions_e.swGeneralImportFileSpecifiedUnit	See swGeneralImportUnitsOptions_e for all valid options
Unit - Document template specified unit	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportUnitPreference) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportUnitPreference, swGeneralImportUnitsOptions_e.swGeneralImportDocumentTemplateSpecifiedUnit)	swGeneralImportUnitsOptions_e.swGeneralImportDocumentTemplateSpecifiedUnit)	See swGeneralImportUnitsOptions_e for all valid options
IGES - Show IGES levels	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESImportShowLevel) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESImportShowLevel, <OnFlag>)	Boolean value	Specifies whether to displays the IGES-In Surfaces, Curves, and Levels dialog to the user where the user can specify levels and values
STEP - Map configuration data	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportStepConfigData) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportStepConfigData, <OnFlag>)	Boolean value	Specifies whether to import STEP file configuration data plus geometric data or geometric data only; for STEP files only
Force enable import diagnosis	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swForceEnableImportDiagnosis) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swForceEnableImportDiagnosis, <OnFlag>)	Boolean value	Specifies whether to force enable import diagnosis

Obsolete Enumerators

Enumerator	Comment
swImportUGToolBodies	Obsolete
