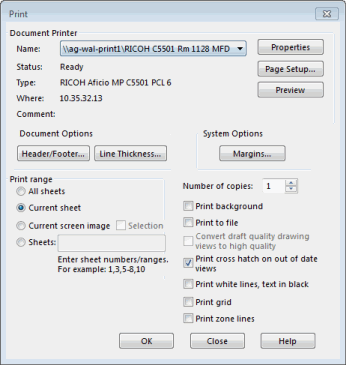

> File > Print

File > Print

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Name	See Comment	See Comment	Not currently available in SOLIDWORKS API
Document Options - Header/Footer	See Comment	See Comment	Not currently available in SOLIDWORKS API
Document Options - Line Thickness	See Comment	See Comment	See Document Properties > Line Thickness
System Options - Margins	See Comment	See Comment	See File > Page Setup > Print > System Options > Margins
Print range - Entire model	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print range - Current sheet	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print range - Current screen image	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print range - Sheets	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print range - Sheets - <n>	See Comment	See Comment	Not currently available in SOLIDWORKS API
Number of copies <n>	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print background	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintBackground) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintBackground, <OnFlag>)	Boolean value	Specifies whether to print the window background, in addition to the model and drawing
Print to file	See Comment	See Comment	Not currently available in SOLIDWORKS API
Convert draft quality drawing views to high quality	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print cross hatch on out of date views	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print white lines, text in black	See Comment	See Comment	Not currently available in SOLIDWORKS API
Print grid	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintGrid) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintGrid, <OnFlag>)	Boolean value	Specifies whether to print the grid
Print zone lines	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintZoneLines) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintZoneLines, <OnFlag>)	Boolean value	Specifies whether to print zone lines
