System Options > Export > EDRW/EPRT/EASM

This topic contains two tables. The information in the table:

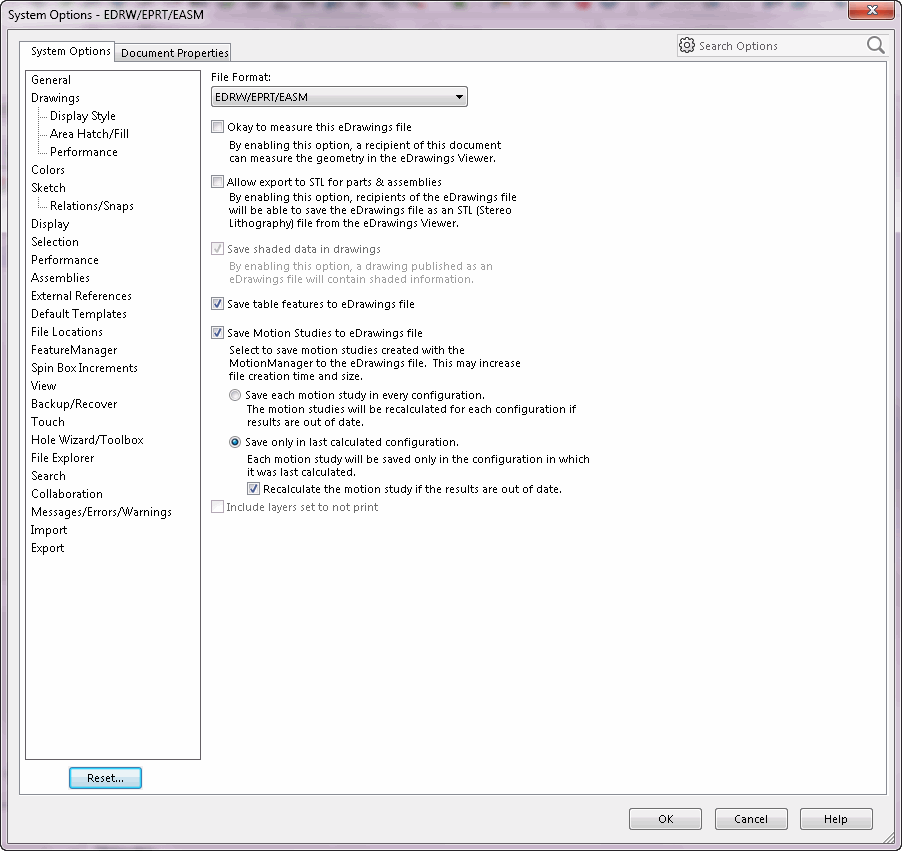

appearing immediately after the screen capture corresponds to the settings on that dialog.
titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > EDRW/EPRT/EASM in File Format.

- or -

Click File > Save As.
In Save as type, select eDrawings.
Click Options.

Setting	Get/Set Methods	Return Value or <OnFlag>	Comment
Okay to measure this eDrawings file	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsOkayToMeasure) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsOkayToMeasure, <OnFlag>)	Boolean value	Specifies whether to enable measurement of geometry in eDrawings file
Allow export to STL for parts & assemblies	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsExportSTLOkay) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsExportSTLOkay, <OnFlag>)	Boolean value	Specifies whether to allow recipients of eDrawings file to save it as STL file from eDrawings Viewer
Save shaded data in drawings	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveShadedDataInDrawings) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveShadedDataInDrawings, <OnFlag>)	Boolean value	For SOLIDWORKS drawings only; specifies whether to save shaded data from SOLIDWORKS drawing document in published eDrawings file
Save Bill of Materials features to eDrawings file	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveBOM) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveBOM, <OnFlag>)	Boolean value	Specifies whether to save BOM in eDrawings file
Save Motion Studies to eDrawings file	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationOkay) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationOkay, <OnFlag>)	Boolean value	Specifies whether to save motion studies to eDrawings file
Save each motion study in every configuration and Save only in last calculated configuration	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationToAllConfigs) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationToAllConfigs, <OnFlag>)	Boolean value: True: Save each motion study in every configuration False: save each motion study only in the configuration in which it was last calculated	Specifies how to save motion studies to eDrawings files
Recalculate the motion study if the results are out of date	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationRecalculate) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationRecalculate, <OnFlag>)	Boolean value	Specifies whether to recalculate the motion study or use existing results in eDrawings file
Include layers set not to print	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsIncludeLayersNotToPrint) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsIncludeLayersNotToPrint, <OnFlag>)	Boolean value	Specifies whether to include layers set not to print

Obsolete Enumerators

Enumerator	Comment
swEDrawingsCompression	Obsolete
swEdrawingsSaveAsSelectionOption	Obsolete
swEmodelSelectionList	Obsolete
