Manually Repairing Over-defined Sketches

To manually repair over defined sketches:

  1. In the PropertyManager, under Message, click Manual Repair.
    All relations and dimensions in the sketch appear under Conflicting Relations/Dimensions.

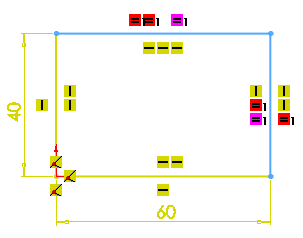

  2. Select each relation or dimension to highlight it in the graphics area.
    For example:
    = Equal radius/length 1
  3. Click Delete.

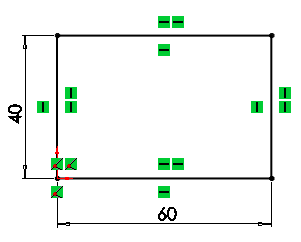

    Valid solution found
    If you delete one or more items under Conflicting Relations/Dimensions, click to undo each action and repopulate the list.
  4. Click PM_OK.gif.
