Local edit allows you to drag and manipulate the shape of a style spline without affecting adjacent style splines. This setting is helpful when you are working with multiple style splines that are connected but not fully constrained.
To modify a style spline using Local edit:
-
In an open sketch, select the style spline you wish to edit locally only.
Local edit only works with two or more style splines.
The Style Spline PropertyManager displays.
- In the Style Spline PropertyManager, under Options, select Local edit.

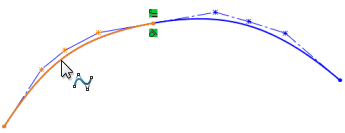

- In the graphics area, select and drag a control vertex.
You can manipulate the shape of the control polygon without affecting the shape of the other style spline that it is attached to.
- Click
.
