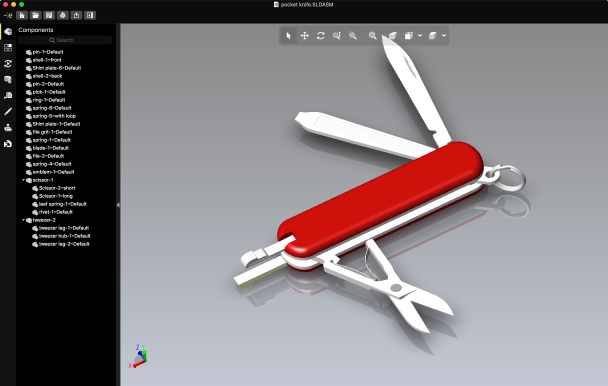

eDrawings for Macintosh

eDrawings® is supported on the Macintosh® operating system. You can open DXF/DWG, SOLIDWORKS, and eDrawings files.

The complimentary eDrawings software for the Mac® operating system (eDrawings for Mac) contains most of the functionality of the Windows version including animation, measure, and print. eDrawings for Mac is supported in English, French, German, and Japanese.

Opening review-enabled files activates the eDrawings Professional tools (markup, move, cross-section, etc.) There is no eDrawings Professional for Mac.

Features Available on Macintosh Only

  • Enhanced Save As types for images: SGI image, Photoshop, PNG, MacPaint, TGA, and QuickTime.
  • Enhanced print dialog box options: Save as PDF, Fax.
  • Turn the display of model reflections on or off. In the Options dialog box, on the General tab, select or clear Display Reflections.

Unsupported Items on Macintosh

  • Simulation files tools. Simulation files can be viewed but no tools are available such as Mesh, Legend, etc.
  • Embeddable as a browser control.
  • Licensing (Professional version).
  • OLE images in native SOLIDWORKS and DXF/DWG files.
  • Overview tool.
  • Password setting.
  • Password-protected DWG files.
  • Performance logging.
  • Save as STL.
  • Save and Send as exe, HTML, or zip file.
  • Search in the Help.
  • Ability to turn off linking between display states and configurations.
